Occupant Restraint Controller Module (Body) 32 Way

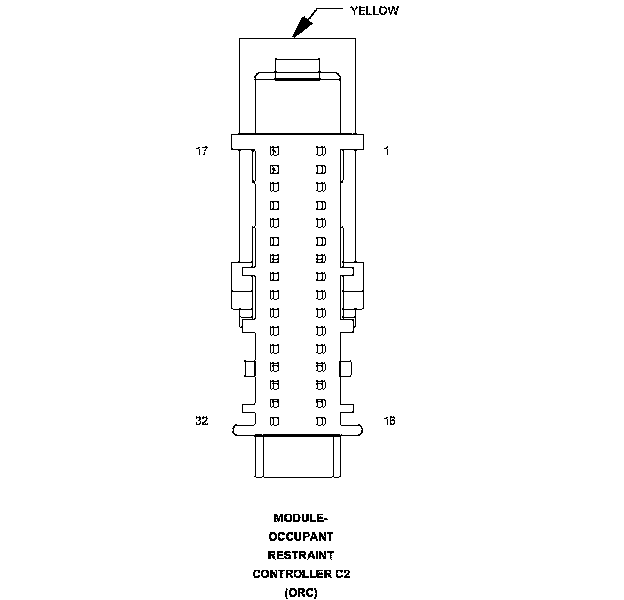

Connector - (BODY) 32 WAY

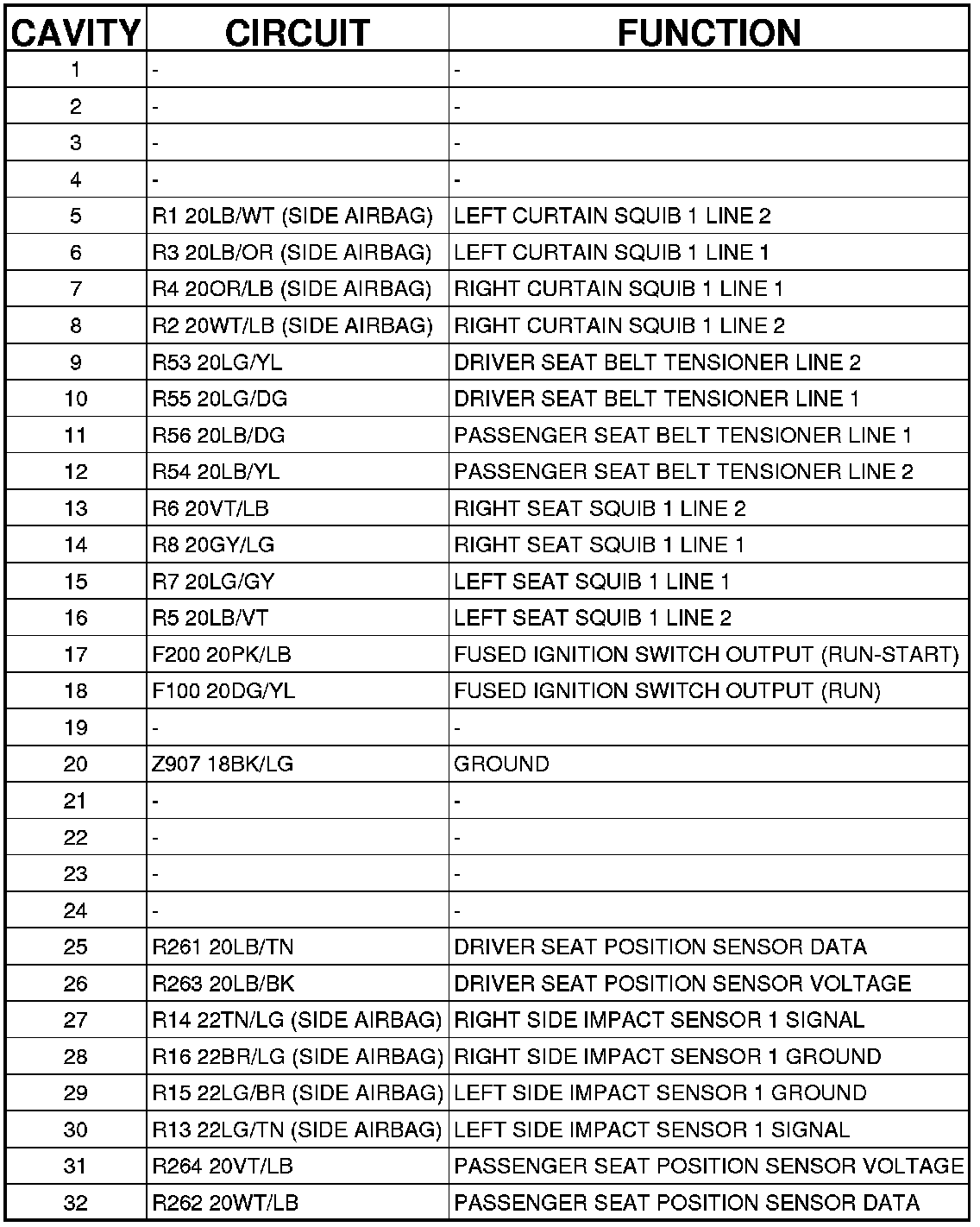

MODULE-OCCUPANT RESTRAINT CONTROLLER - (BODY) 32 WAY
