Occupant Restraint Controller Module (Body) 24 Way

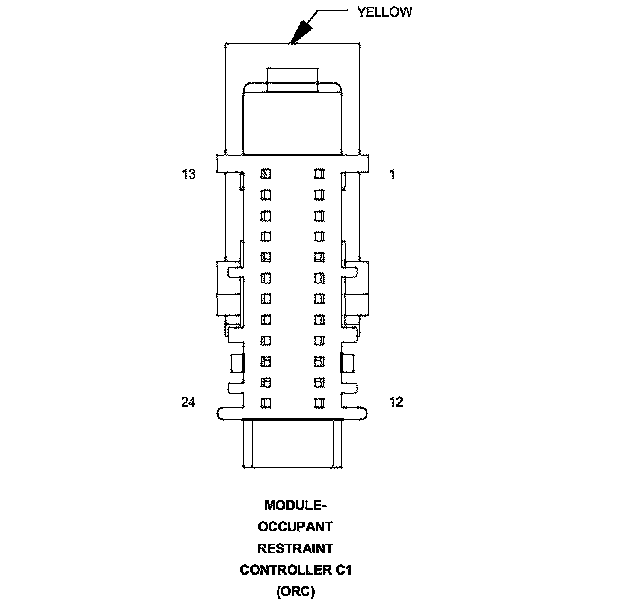

Connector - (BODY) 24 WAY

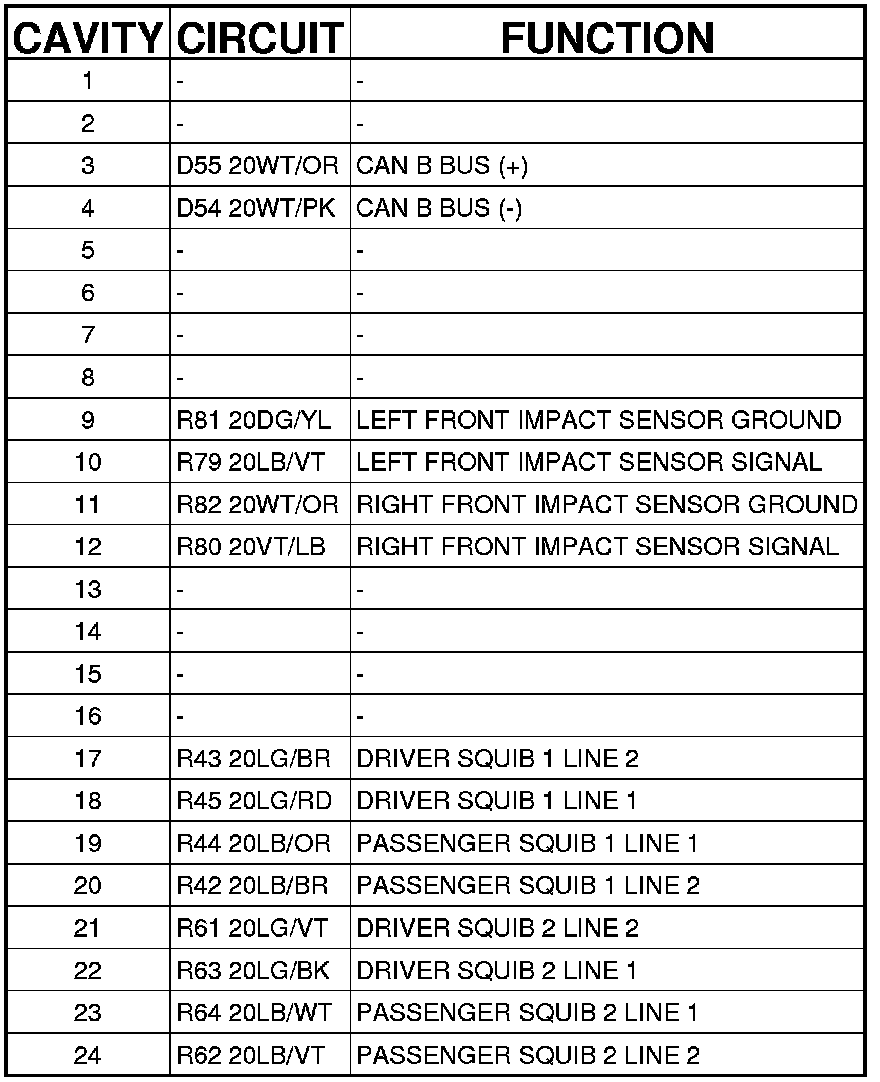

MODULE-OCCUPANT RESTRAINT CONTROLLER - (BODY) 24 WAY
