Accelerator Pedal Position Sensor

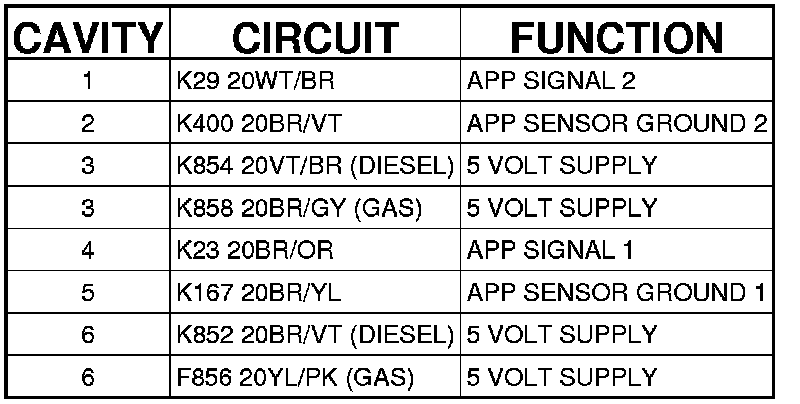

Connector - (BODY) 6 WAY

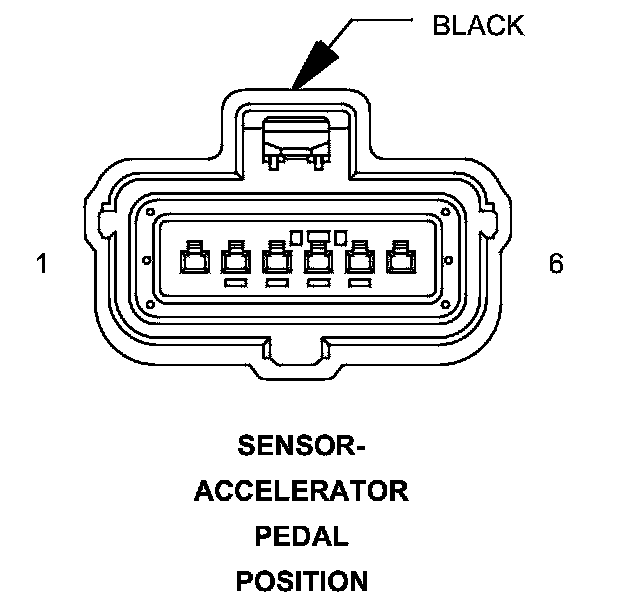

SENSOR-ACCELERATOR PEDAL POSITION - (BODY) 6 WAY
