Brake Fluid Level Sensor/Switch

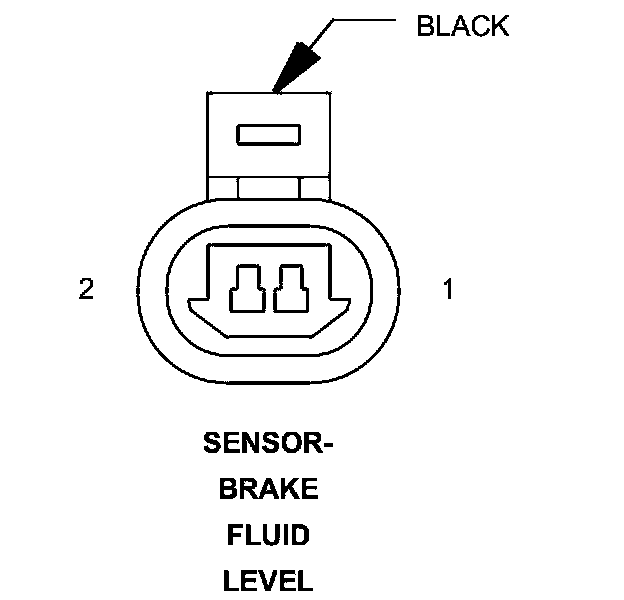

Connector - (ENGINE COMPARTMENT) 2 WAY

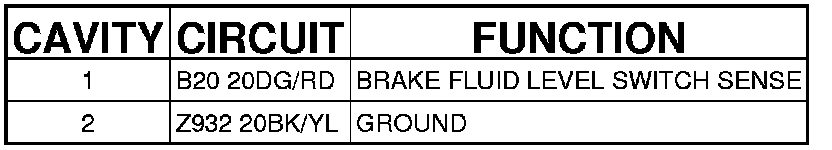

SENSOR-BRAKE FLUID LEVEL - (ENGINE COMPARTMENT) 2 WAY
