Powertrain Control Module C4 (RFE) (Injector) 38 Way
Powertrain Control Module C4 (RFE) (Injector) 38 Way

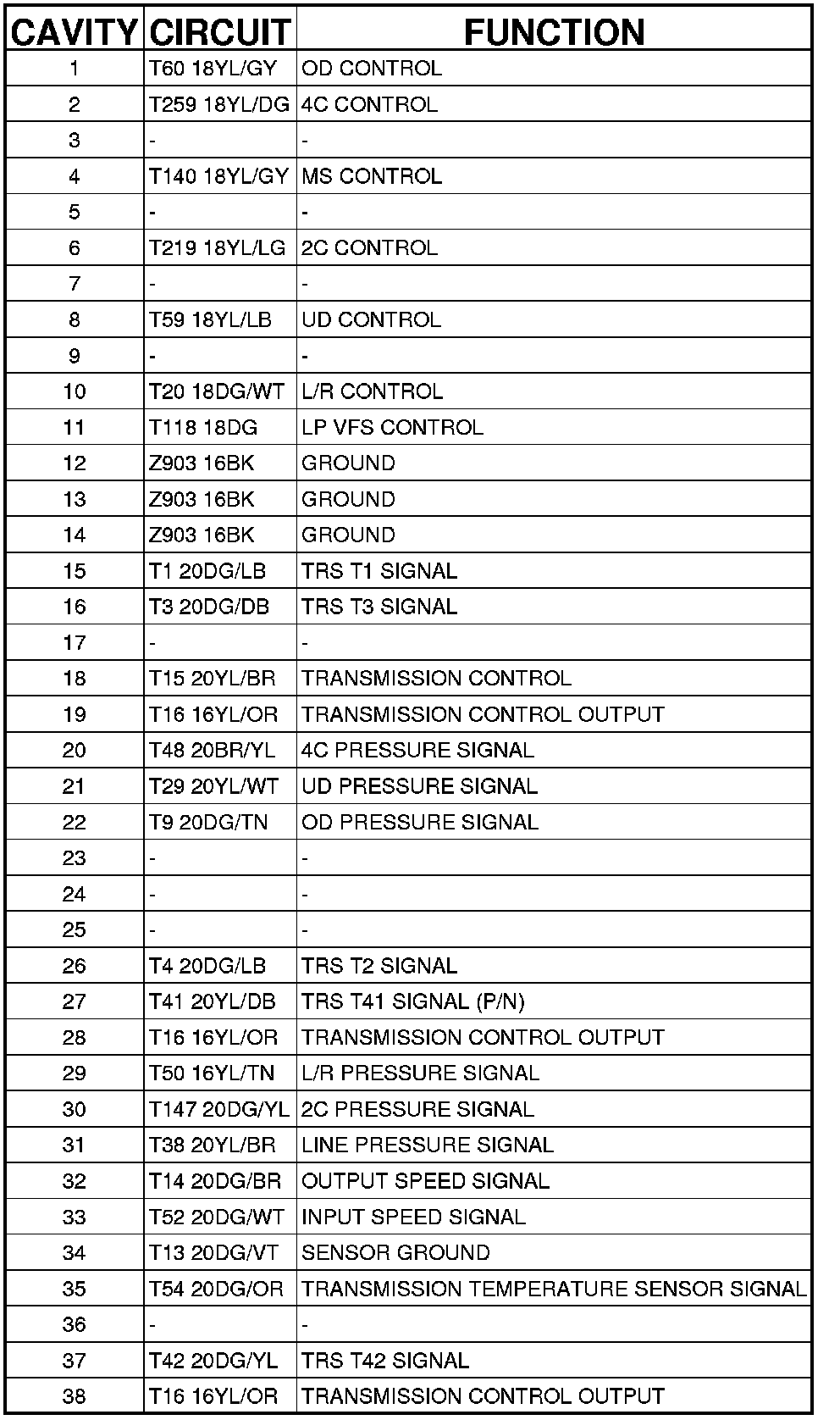

Connector C4 (RFE) - (INJECTOR) 38 WAY

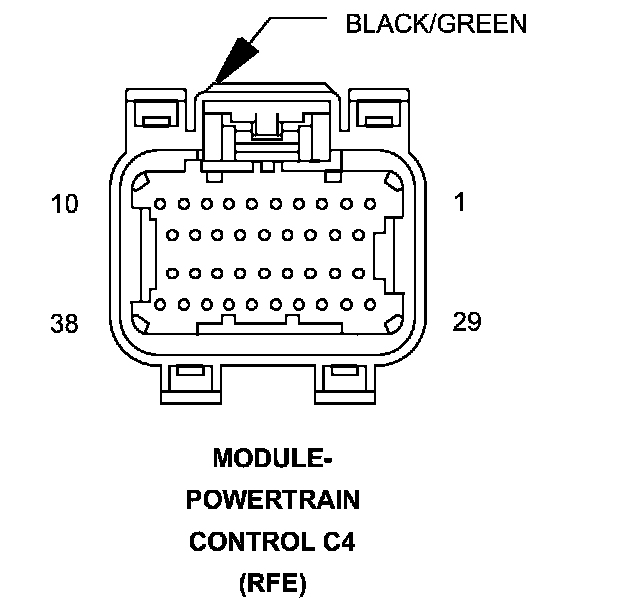

MODULE-POWERTRAIN CONTROL (RFE) - (INJECTOR) 38 WAY
