Front Control Module C2 (Headlamp And Dash) 12 Way
Front Control Module C2 (Headlamp And Dash) 12 Way

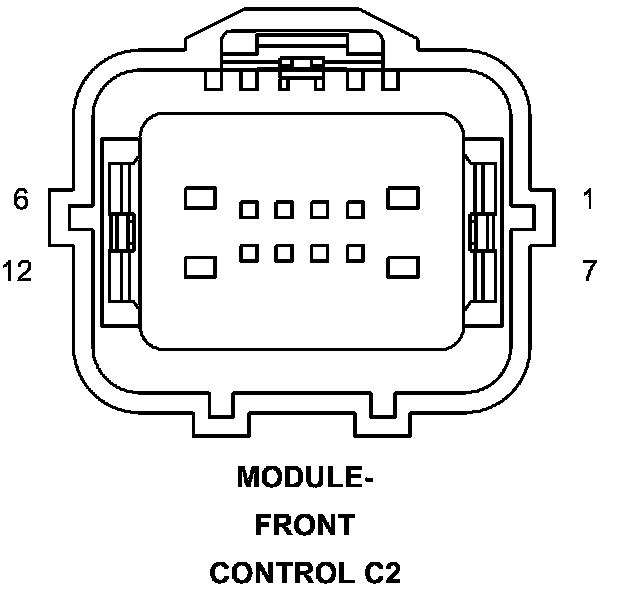

Connector C2 - (HEADLAMP AND DASH) 12 WAY

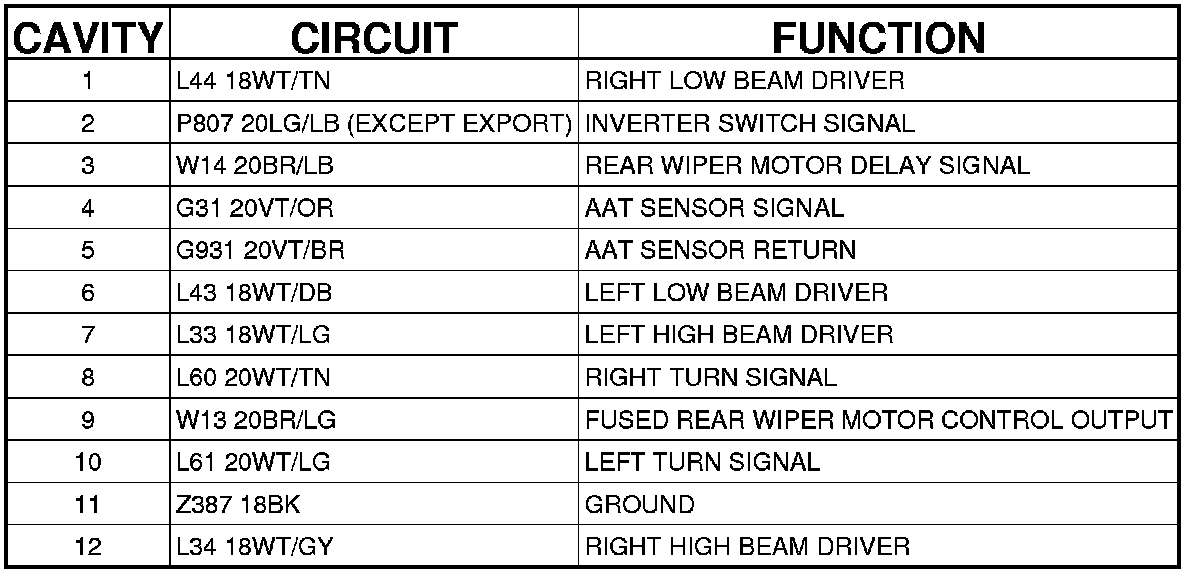

MODULE-FRONT CONTROL - (HEADLAMP AND DASH) 12 WAY
