Home >> Jeep >> 2009 >> Commander 2WD V8-5.7L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Wiper Switch

Wiper Switch

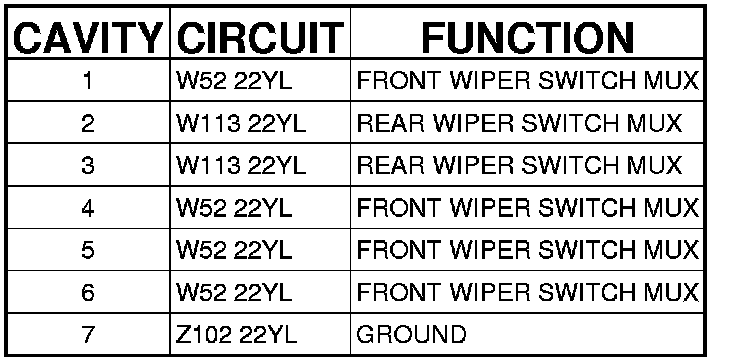

Connector - (STEERING WHEEL JUMPER) 7 WAY

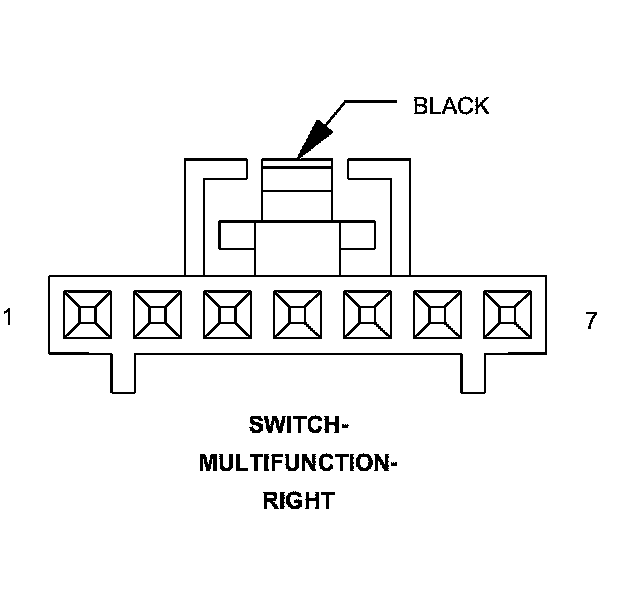

SWITCH-MULTIFUNCTION-RIGHT - (STEERING WHEEL JUMPER) 7 WAY
