Home >> Jeep >> 2009 >> Commander 2WD V8-5.7L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Trunk / Liftgate Switch

Trunk / Liftgate Switch

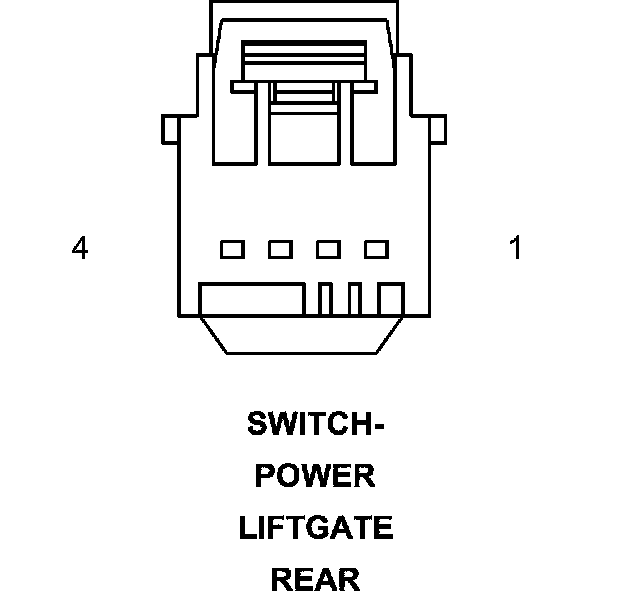

Connector - (BODY) 4 WAY

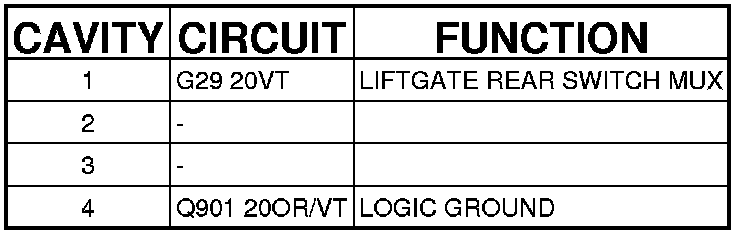

SWITCH-POWER LIFTGATE-REAR - (BODY) 4 WAY
