Home >> Jeep >> 2009 >> Commander 2WD V8-5.7L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Starter Relay

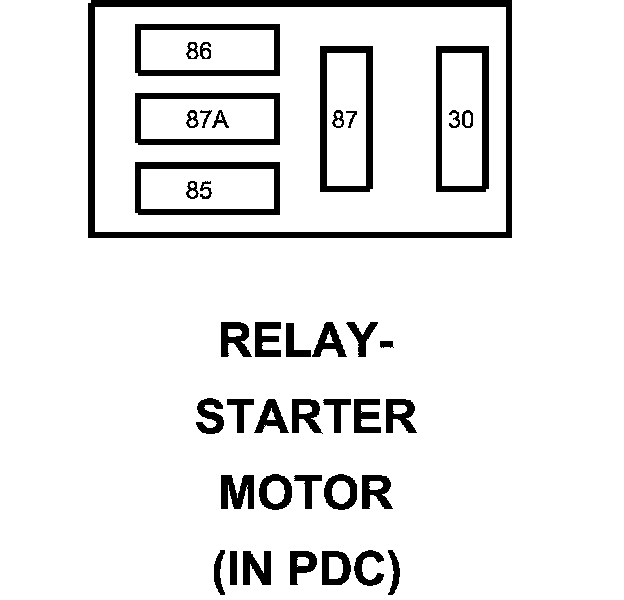

Starter Relay

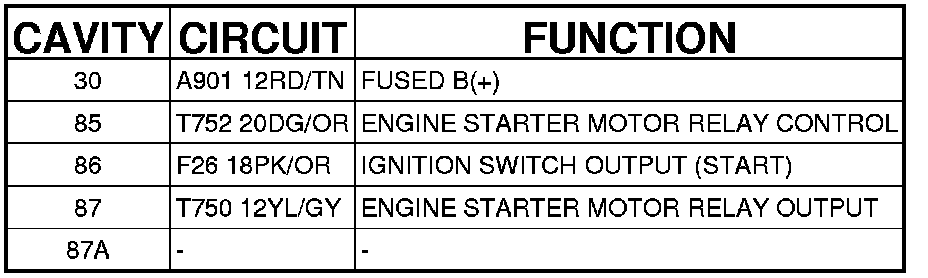

Connector - (IN PDC)




RELAY-STARTER MOTOR - (IN PDC)
