Jeep
>>
2009
>>
Commander 2WD V8-5.7L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Seat Sensor/Switch
Seat Sensor/Switch

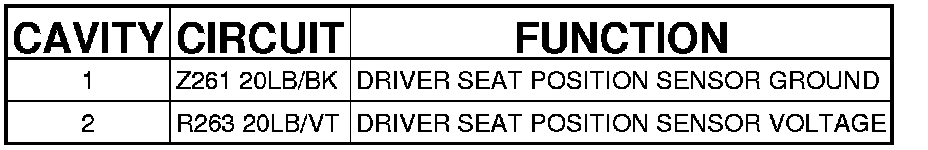

Connector - (BODY) 2 WAY

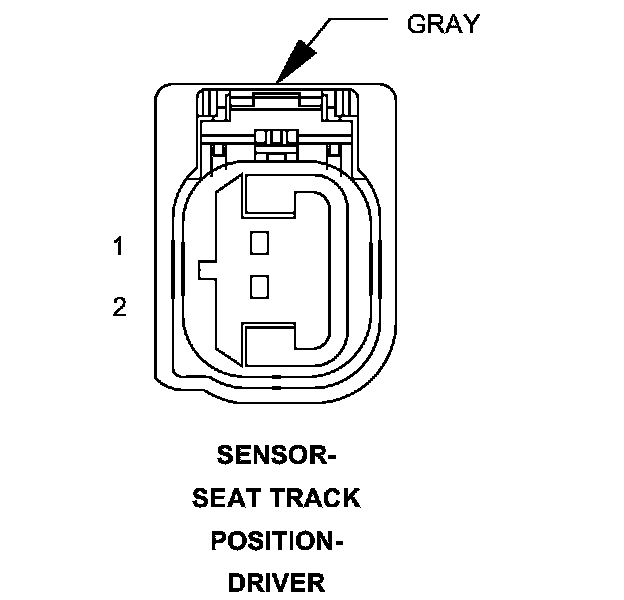

SENSOR-SEAT TRACK POSITION-DRIVER - (BODY) 2 WAY
