Home >> Jeep >> 2009 >> Commander 2WD V8-5.7L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Rain Sensor

Rain Sensor

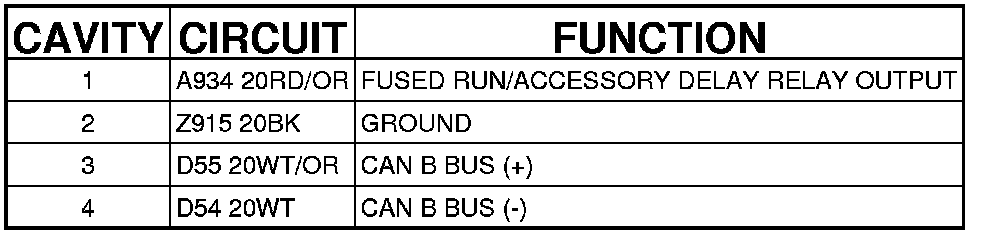

Connector (AUTO WIPERS) - (OVERHEAD) 4 WAY

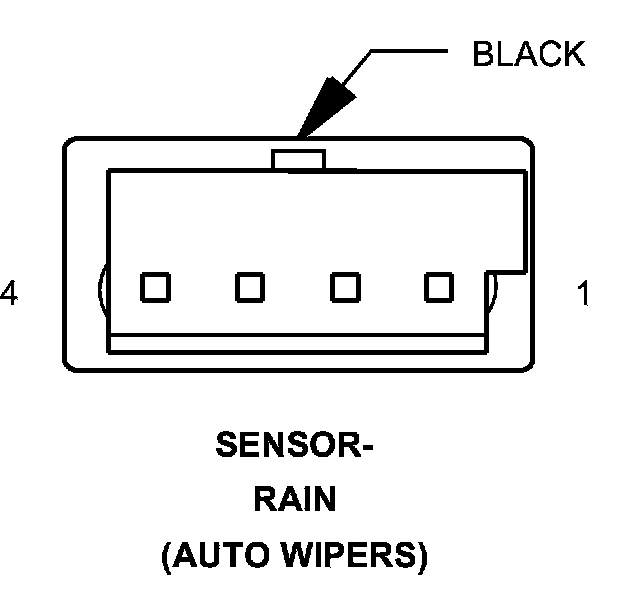

SENSOR-RAIN (AUTO WIPERS) - (OVERHEAD) 4 WAY
