Radiator Cooling Fan Control Module

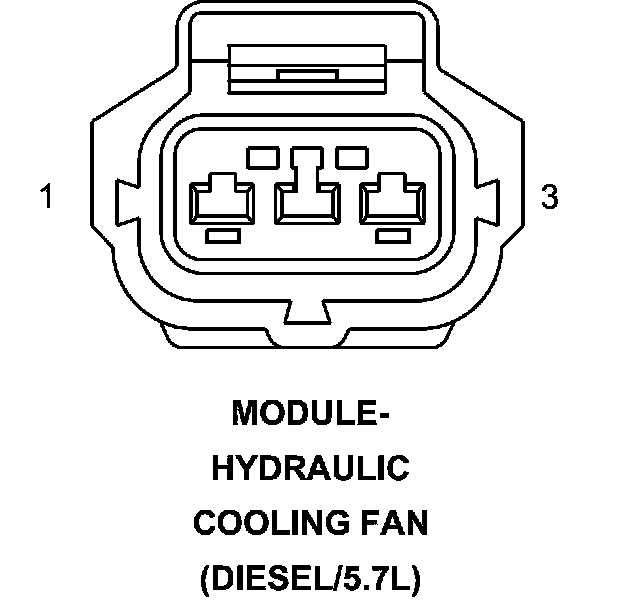

Connector (DIESEL/5.7L) - (HEADLAMP AND DASH) 3 WAY

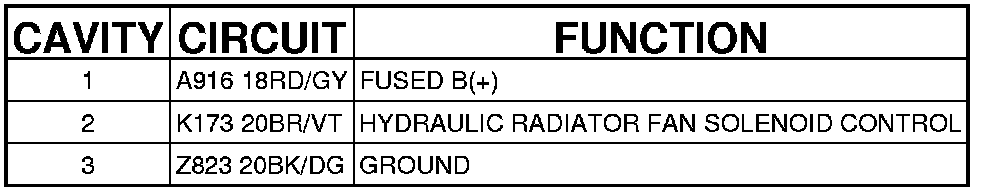

MODULE-HYDRAULIC COOLING FAN (DIESEL/5.7L) - (HEADLAMP AND DASH) 3 WAY
