Power Liftgate Module C1 (Body) 12 Way
Power Liftgate Module C1 (Body) 12 Way

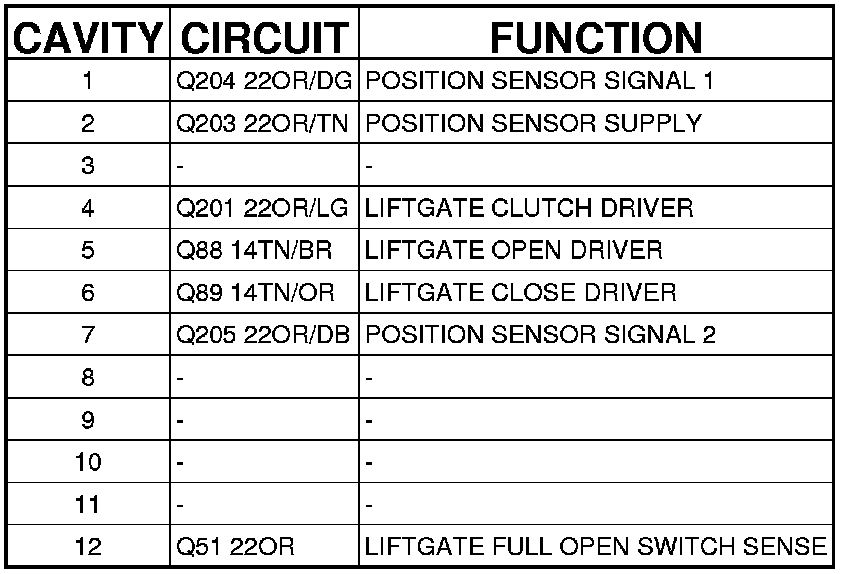

Connector C1 - (BODY) 12 WAY

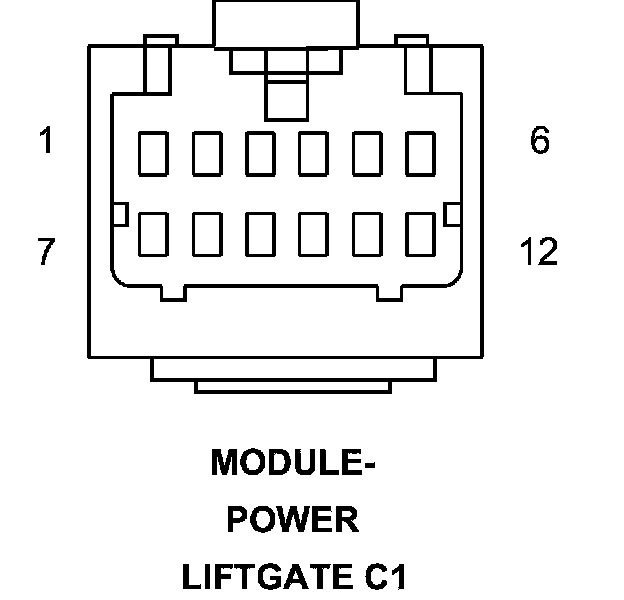

MODULE-POWER LIFTGATE - (BODY) 12 WAY
