Oil Temperature Sensor/Switch, Engine

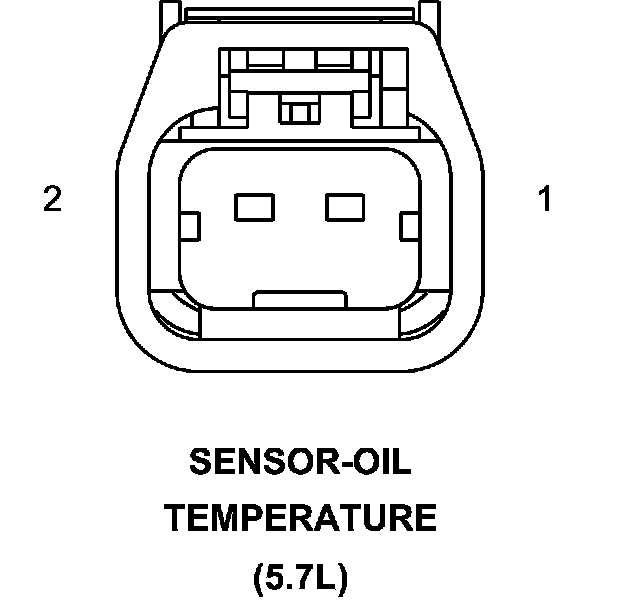

Connector (5.7L) - (INJECTOR) 2 WAY

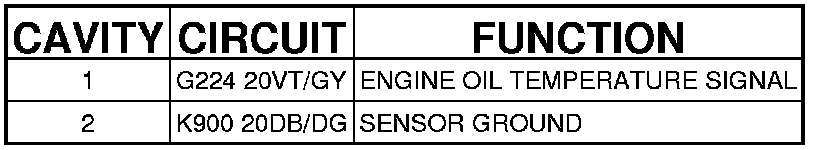

SENSOR-OIL TEMPERATURE (5.7L) - (INJECTOR) 2 WAY
