Memory Positioning Module
>>
Memory Seat Module C2 (Driver Seat) 6 Way
Memory Seat Module C2 (Driver Seat) 6 Way

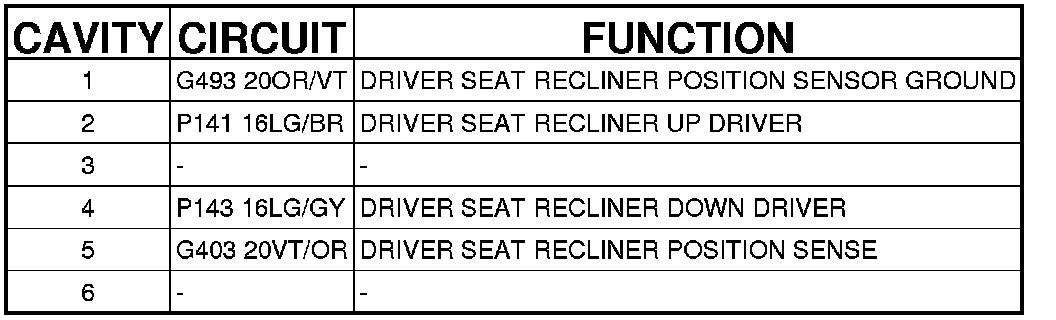

Connector C2 - (DRIVER SEAT) 6 WAY

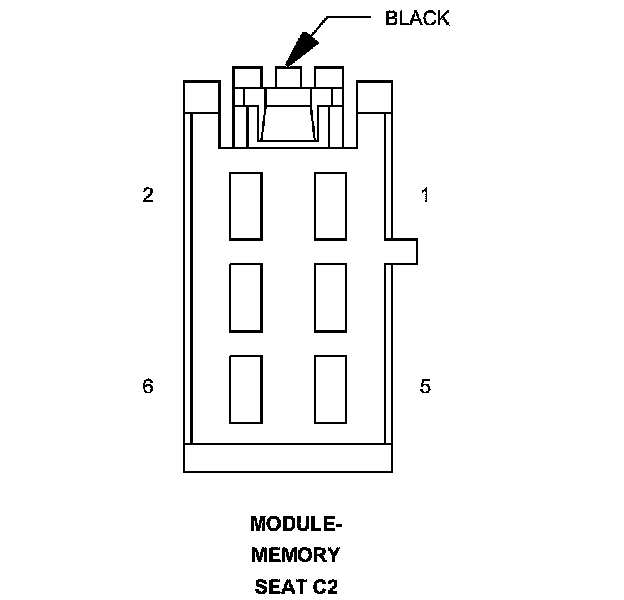

MODULE-MEMORY SEAT - (DRIVER SEAT) 6 WAY
