Lateral Accelerometer
Lateral Accelerometer

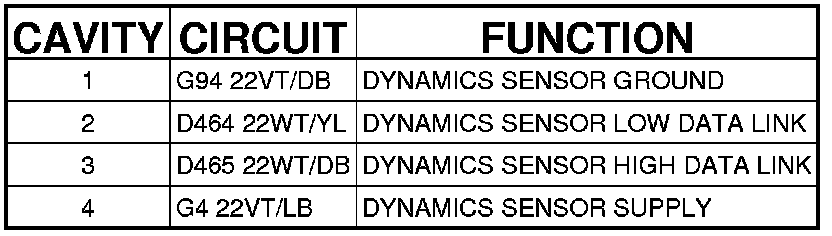

Connector (ESP) - (BODY SIDE) 4 WAY

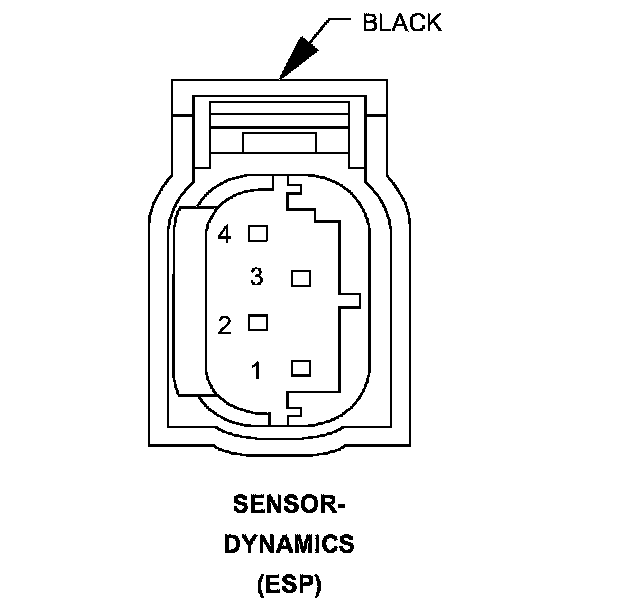

SENSOR-DYNAMICS (ESP) - (BODY SIDE) 4 WAY
