Entertainment System Control Module
>>
Satellite Video Module C4 (Body Left) 1 Way
Satellite Video Module C4 (Body Left) 1 Way

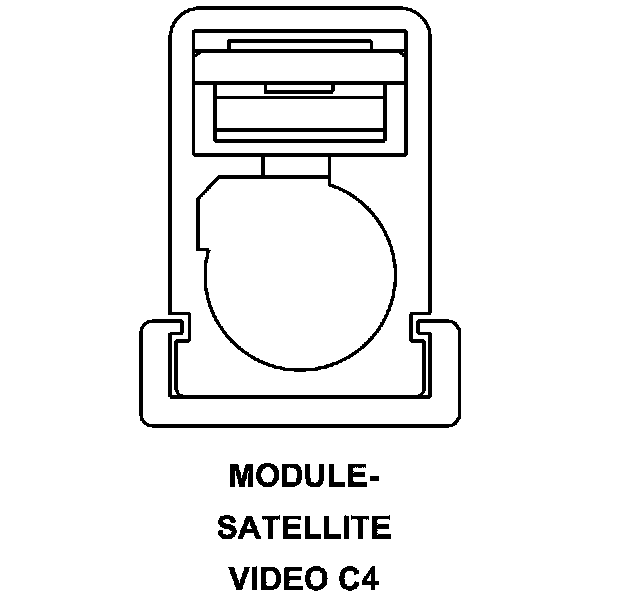

Connector C4 - (BODY LEFT) 1 WAY
MODULE-SATELLITE VIDEO - (BODY LEFT) 1 WAY
