Satellite Video Module C1 (Body) 16 Way
Satellite Video Module C1 (Body) 16 Way

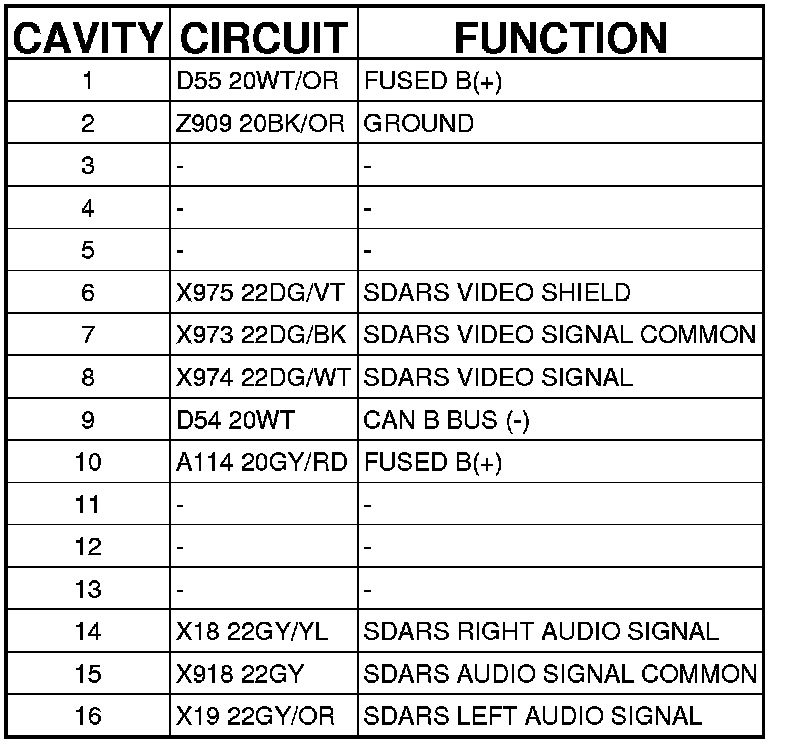

Connector C1 - (BODY) 16 WAY

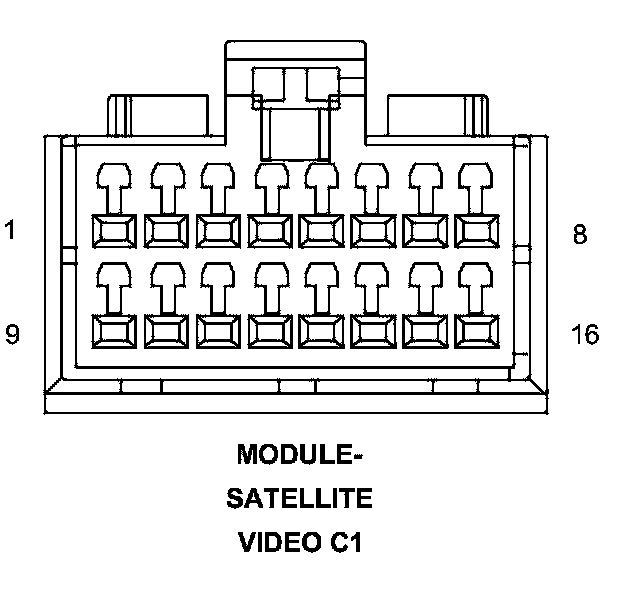

MODULE-SATELLITE VIDEO - (BODY) 16 WAY
