Powertrain Control Module C1 (Injector Side) 38 Way

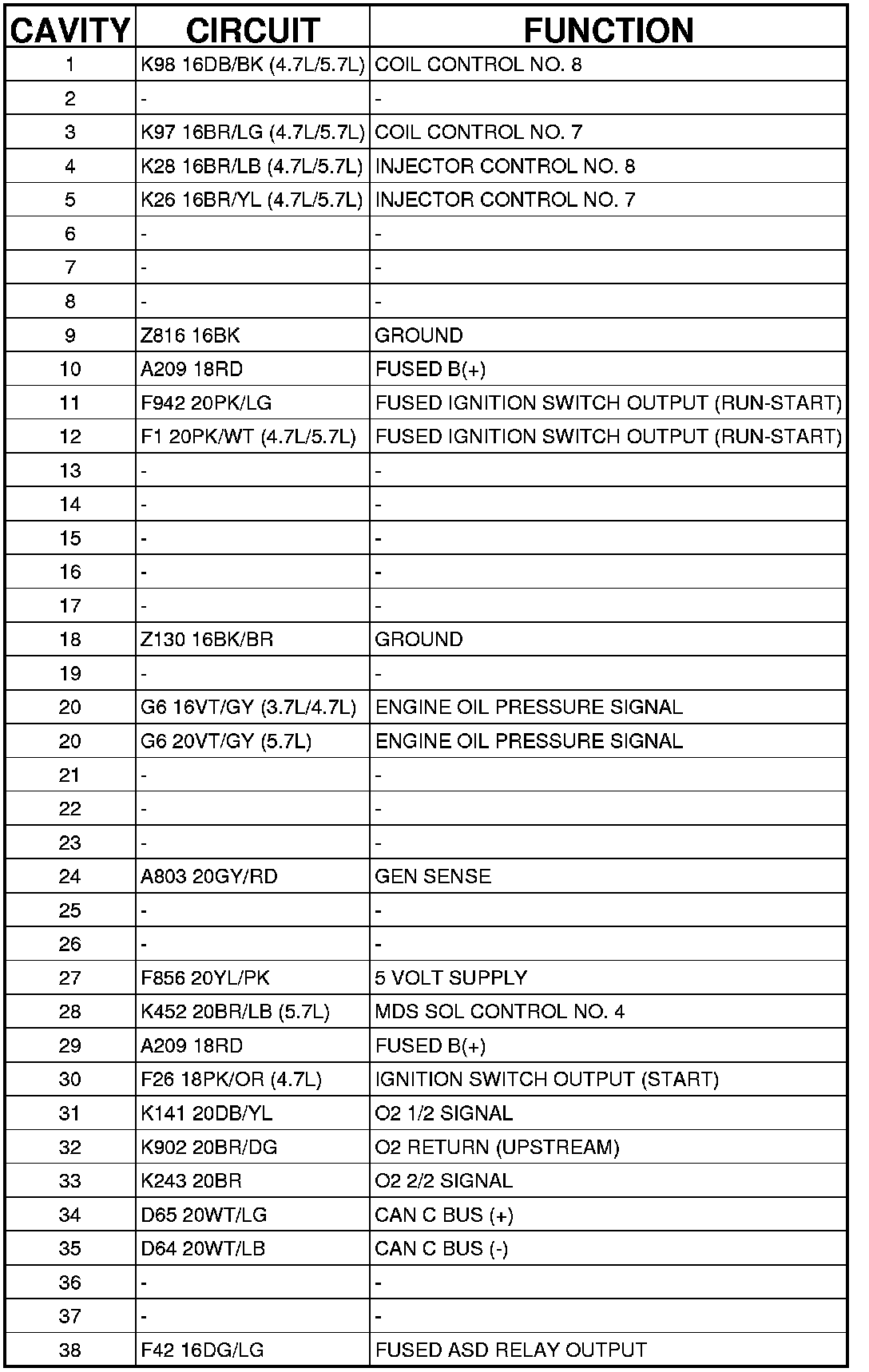

Connector C1 (GAS) - (INJECTOR SIDE) 38 WAY

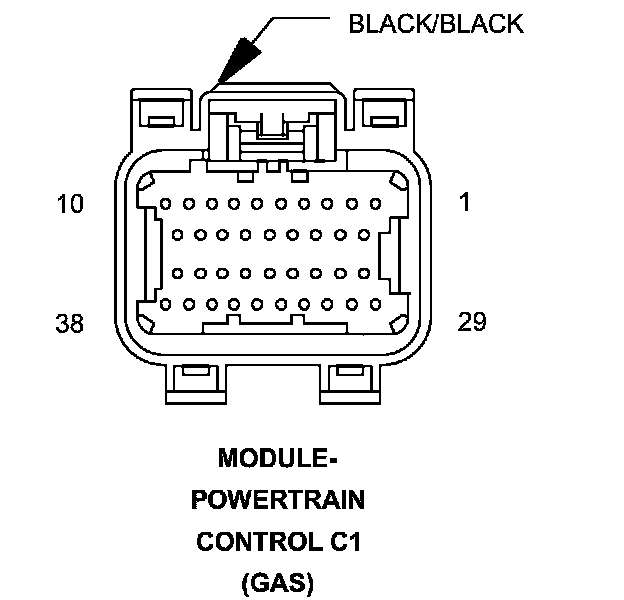

MODULE-POWERTRAIN CONTROL (GAS) - (INJECTOR SIDE) 38 WAY
