Driver/Vehicle Information Display






Connector - (OVERHEAD) 6 WAY

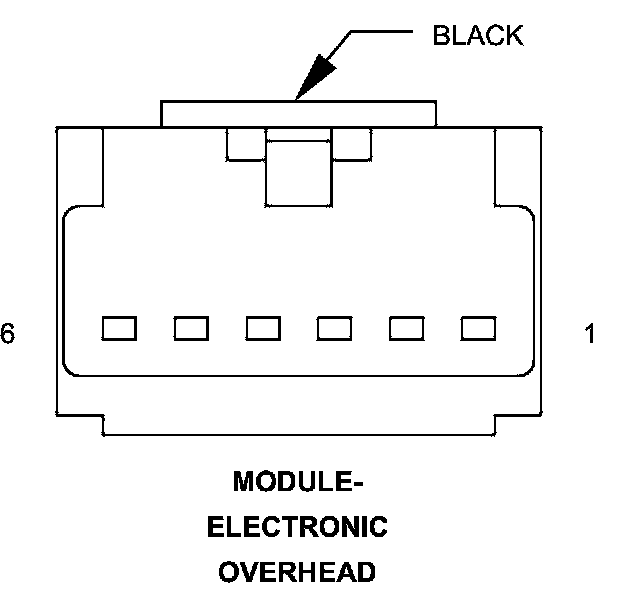

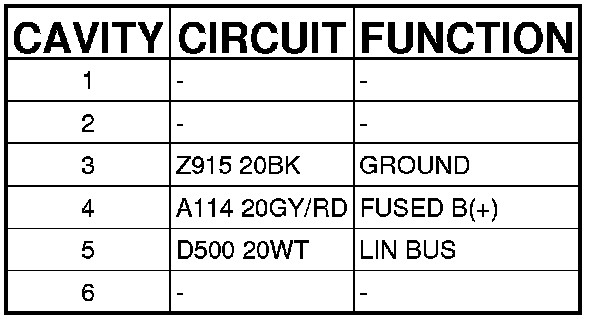

MODULE-ELECTRONIC OVERHEAD - (OVERHEAD) 6 WAY
