Control Module HVAC

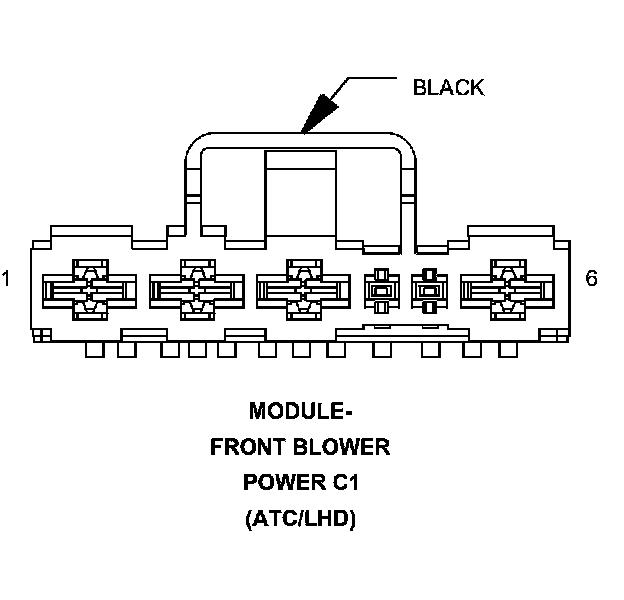

Connector C1 (ATC LHD) - (HVAC) 6 WAY

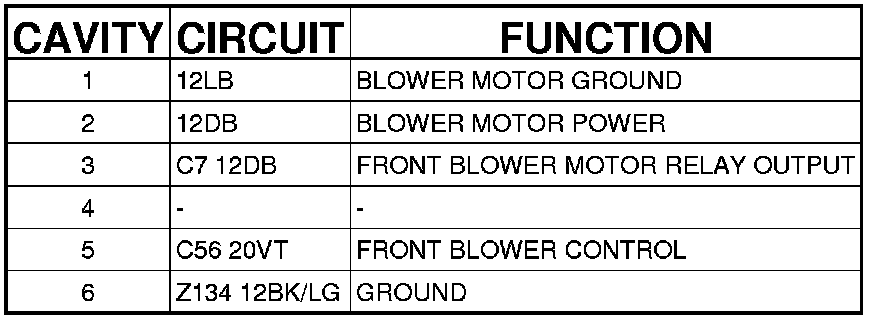

MODULE-FRONT BLOWER POWER (ATC LHD) - (HVAC) 6 WAY
