Home >> Jeep >> 2009 >> Commander 2WD V8-5.7L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Brake Light Switch

Brake Light Switch

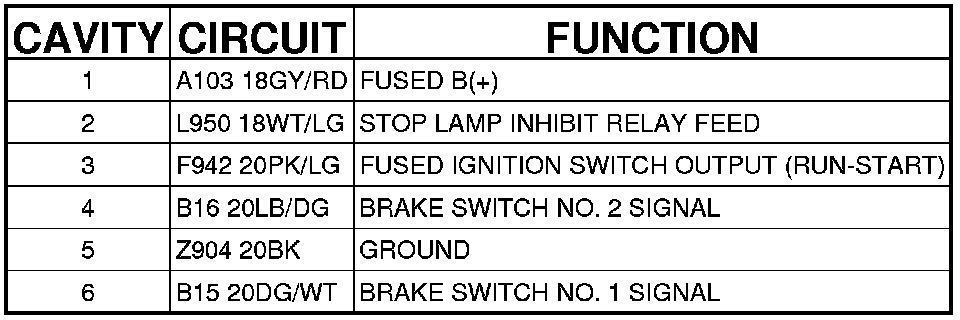

Connector - (HEADLAMP AND DASH) 6 WAY

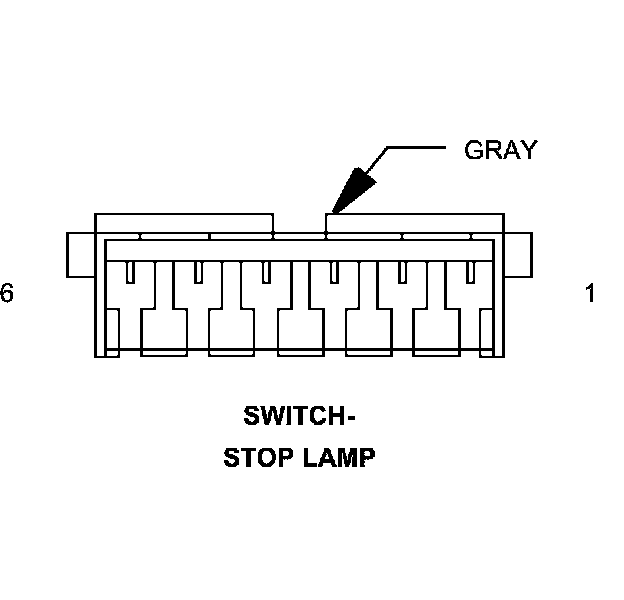

SWITCH-STOP LAMP - (HEADLAMP AND DASH) 6 WAY
