Motor-Window-Right Front

Component ID: 309

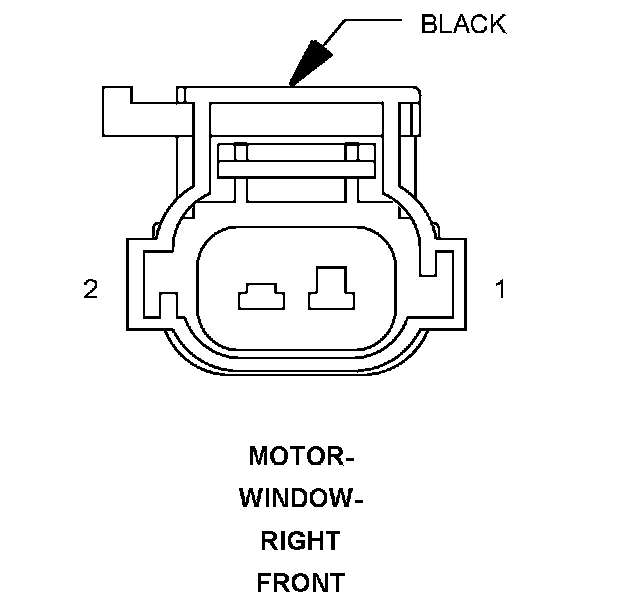

Component : MOTOR-WINDOW-RIGHT FRONT

Connector:
Name : MOTOR-WINDOW-RIGHT FRONT
Color : BLACK
# of pins : 2




Pin Circuit Description
1 Q22 14OR/VT RIGHT FRONT WINDOW DRIVER (DOWN)
2 Q12 14OR/BR RIGHT FRONT WINDOW DRIVER (UP)

Component Location - 47
