Motor-Window-Left Rear

Component ID: 312
Component : MOTOR-WINDOW-LEFT REAR

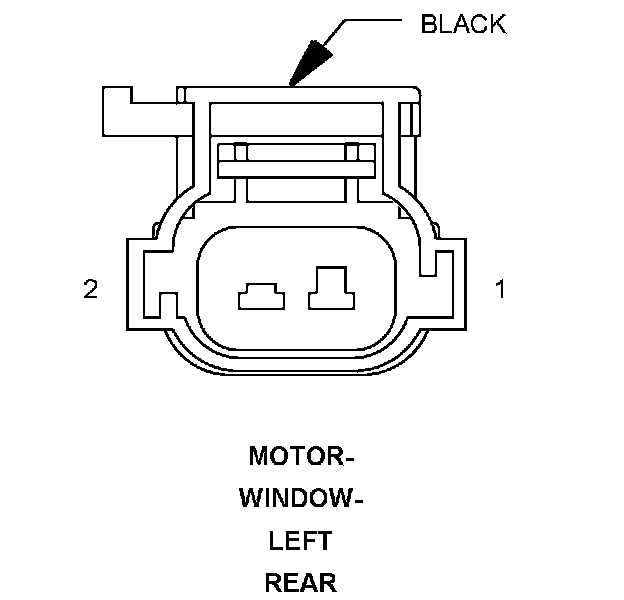

Connector:
Name : MOTOR-WINDOW-LEFT REAR
Color : BLACK
# of pins : 2




Pin Circuit Description
1 Q111 14TN/YL LEFT REAR WINDOW DRIVER (UP)
2 Q211 14TN/LB LEFT REAR WINDOW DRIVER (DOWN)

Component Location - 49
