Rain Sensor

Component ID: 527

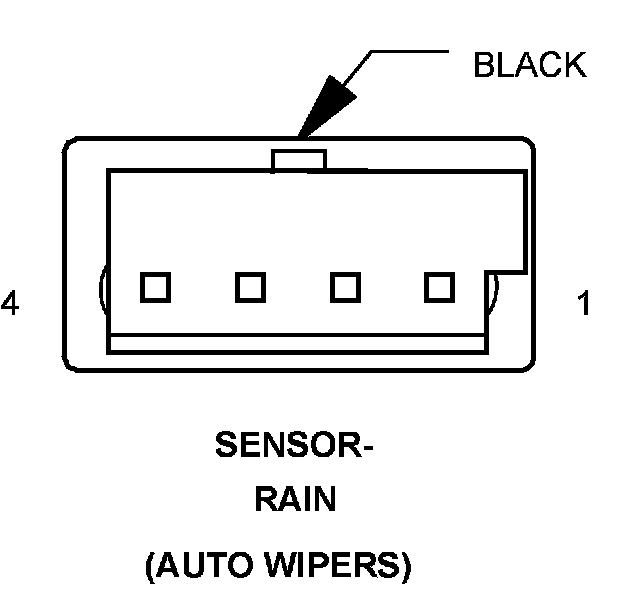

Component : SENSOR-RAIN

Connector:
Name : SENSOR-RAIN
Color : BLACK
# of pins : 4
Qualifier : (AUTO WIPERS)




Pin Circuit Description
1 A934 20RD/OR FUSED RUN/ACCESSORY DELAY RELAY OUTPUT
2 Z915 20BK GROUND
3 D55 20WT/OR CAN B BUS (+)
4 D54 20WT CAN B BUS (-)

Component Location - 47
