Sensor-Side Impact-Right 1

Component ID: 532

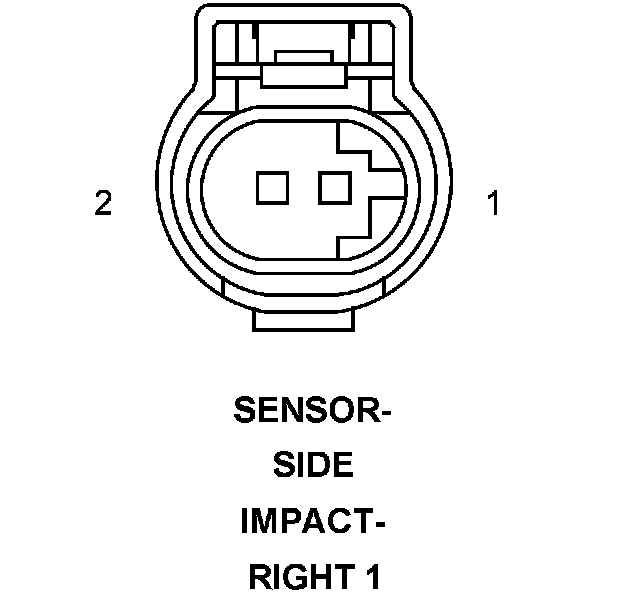

Component : SENSOR-SIDE IMPACT-RIGHT 1

Connector:
Name : SENSOR-SIDE IMPACT-RIGHT 1
Color : GRAY
# of pins : 2




Pin Circuit Description
1 R14 20TN/LG RIGHT SIDE IMPACT SENSOR 1 SIGNAL
2 R16 20BR/LG RIGHT SIDE IMPACT SENSOR 1 GROUND

Component Location - 55
