Ambient Light Sensor

Component ID: 482

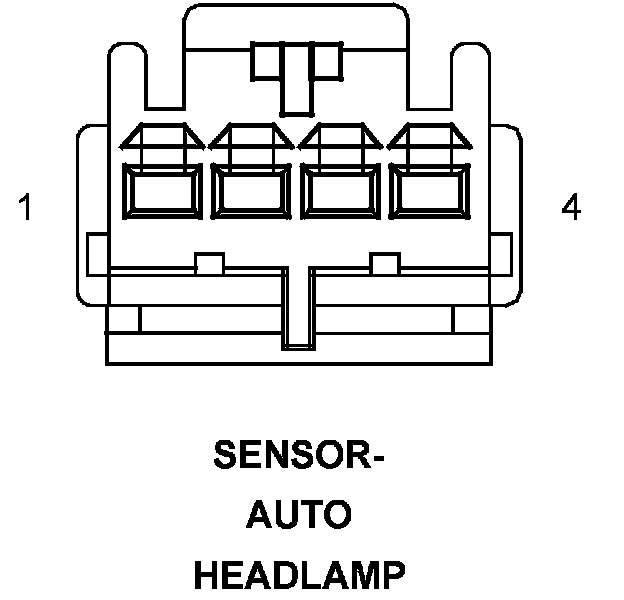

Component : SENSOR-AUTO HEADLAMP

Connector:
Name : SENSOR-AUTO HEADLAMP
Color :
# of pins : 4




Pin Circuit Description
1 - -
2 L924 20WT/TN AUTO HEADLAMPS SIGNAL RETURN
3 L24 20WT/VT AUTO HEADLAMPS SIGNAL
4 - -
