Compass/Temperature Module Inoperative

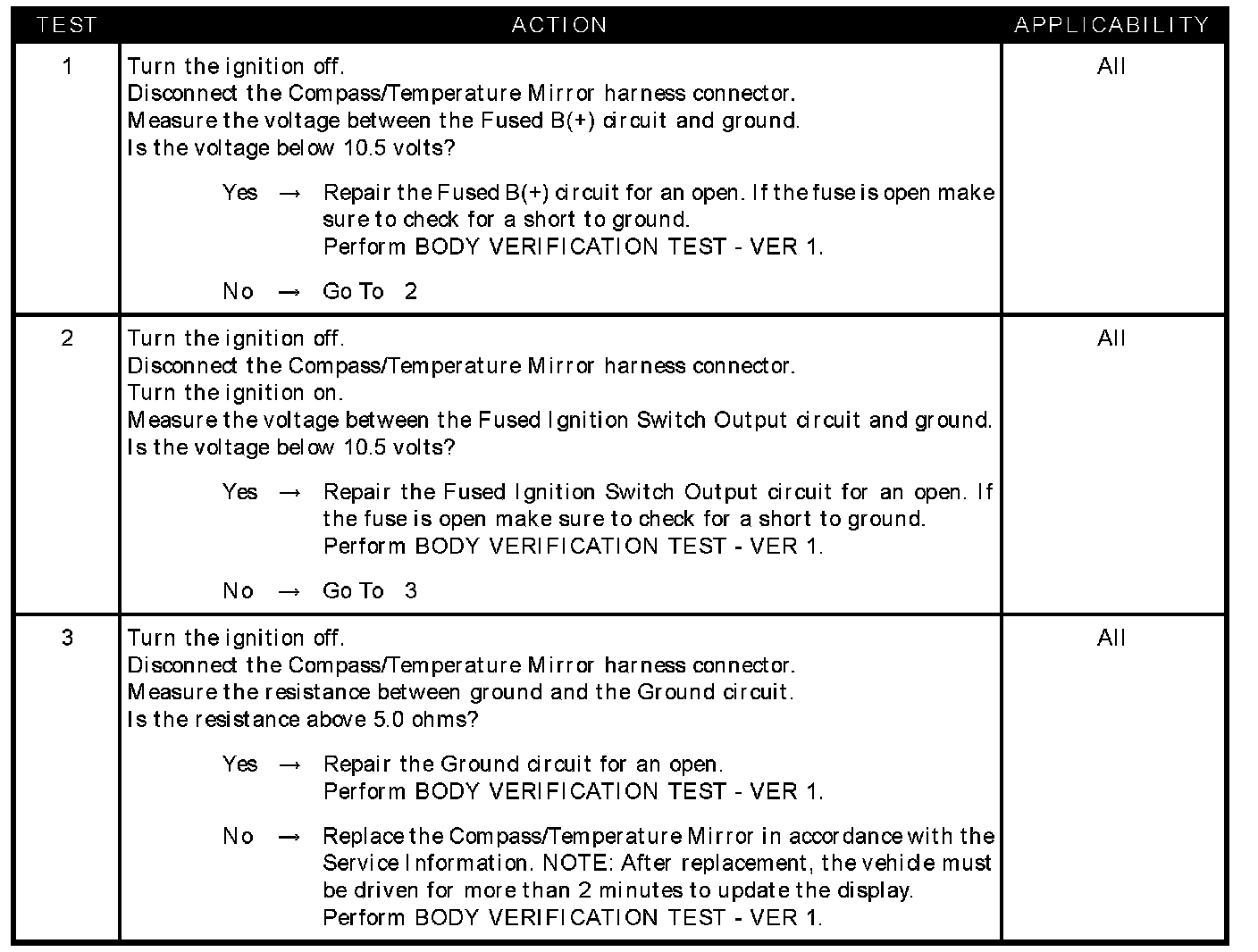

Test 1 - 3:
SYMPTOM
COMPASS/TEMPERATURE MODULE INOPERATIVE
POSSIBLE CAUSES
-
Fused B(+) circuit open
-
Fused ignition switch output circuit open
-
Ground circuit open
-
Compass/temperature mirror
