Home >> Isuzu >> 2004 >> Axiom 4WD V6-3.5L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Engine Control Module >> Locations

Engine Control Module: Locations

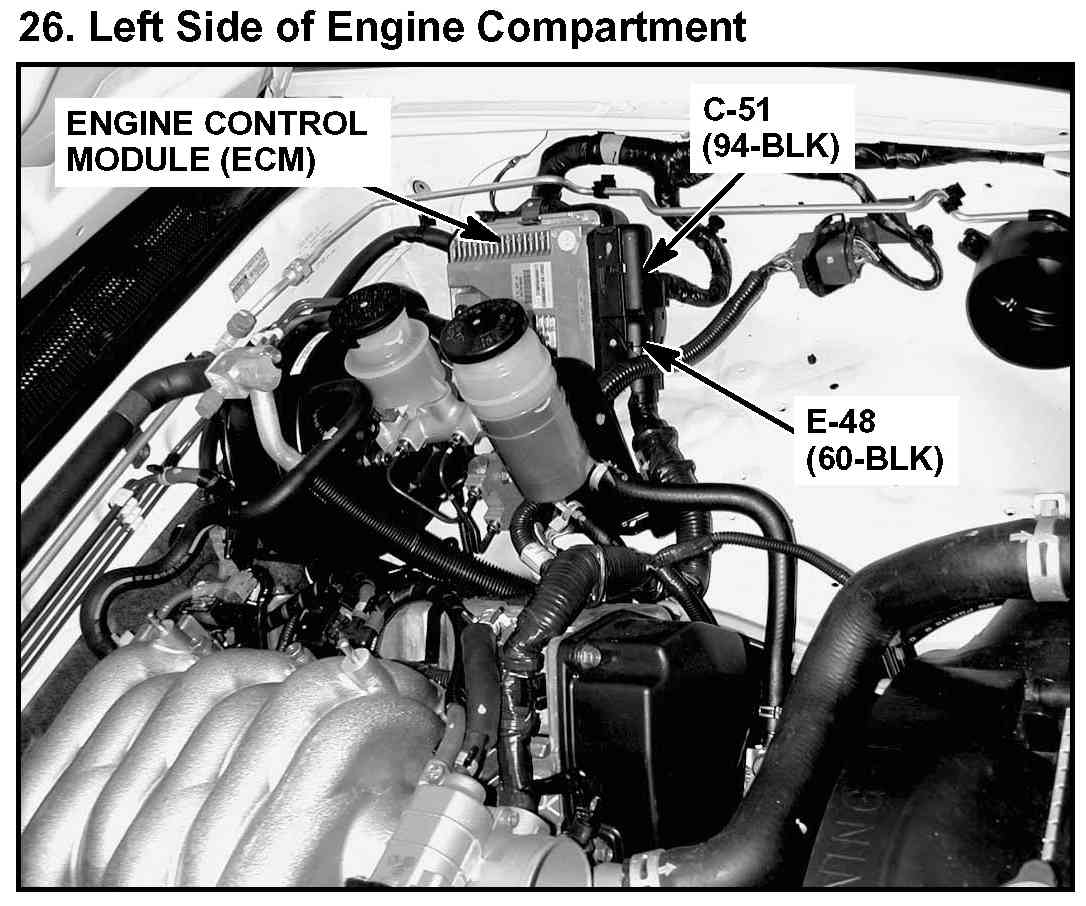

26. Left Side of Engine Compartment:

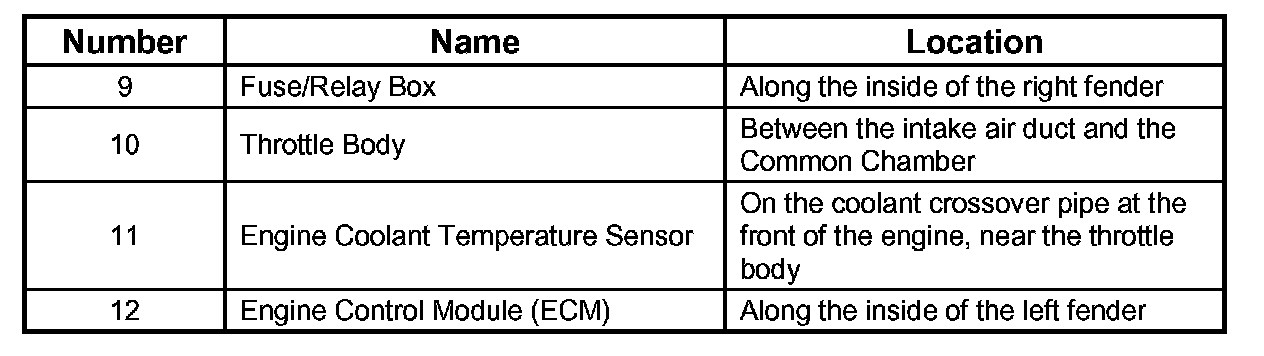

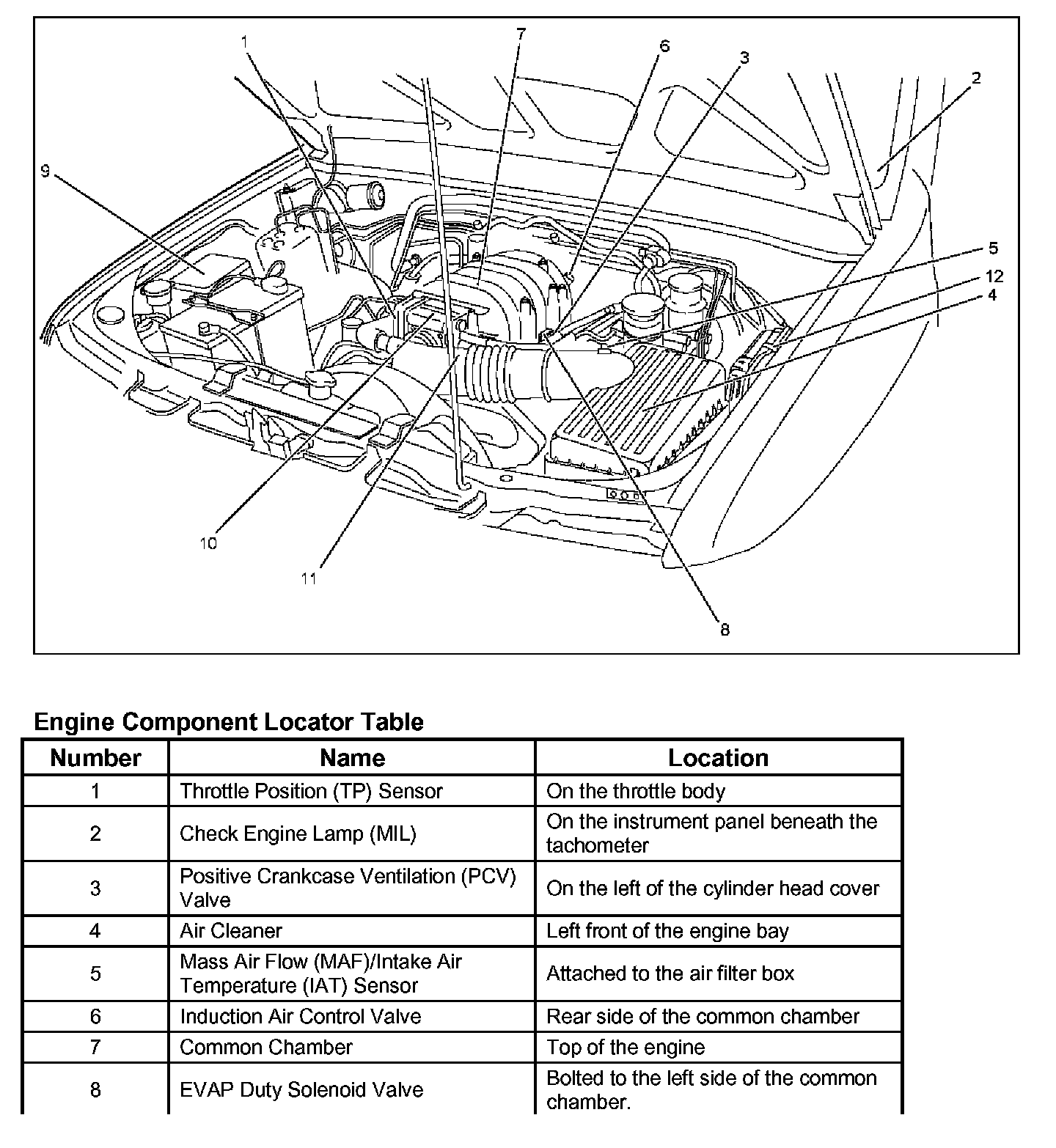

Engine Component Locator:

Engine Component Locator:
