Engine Control Module

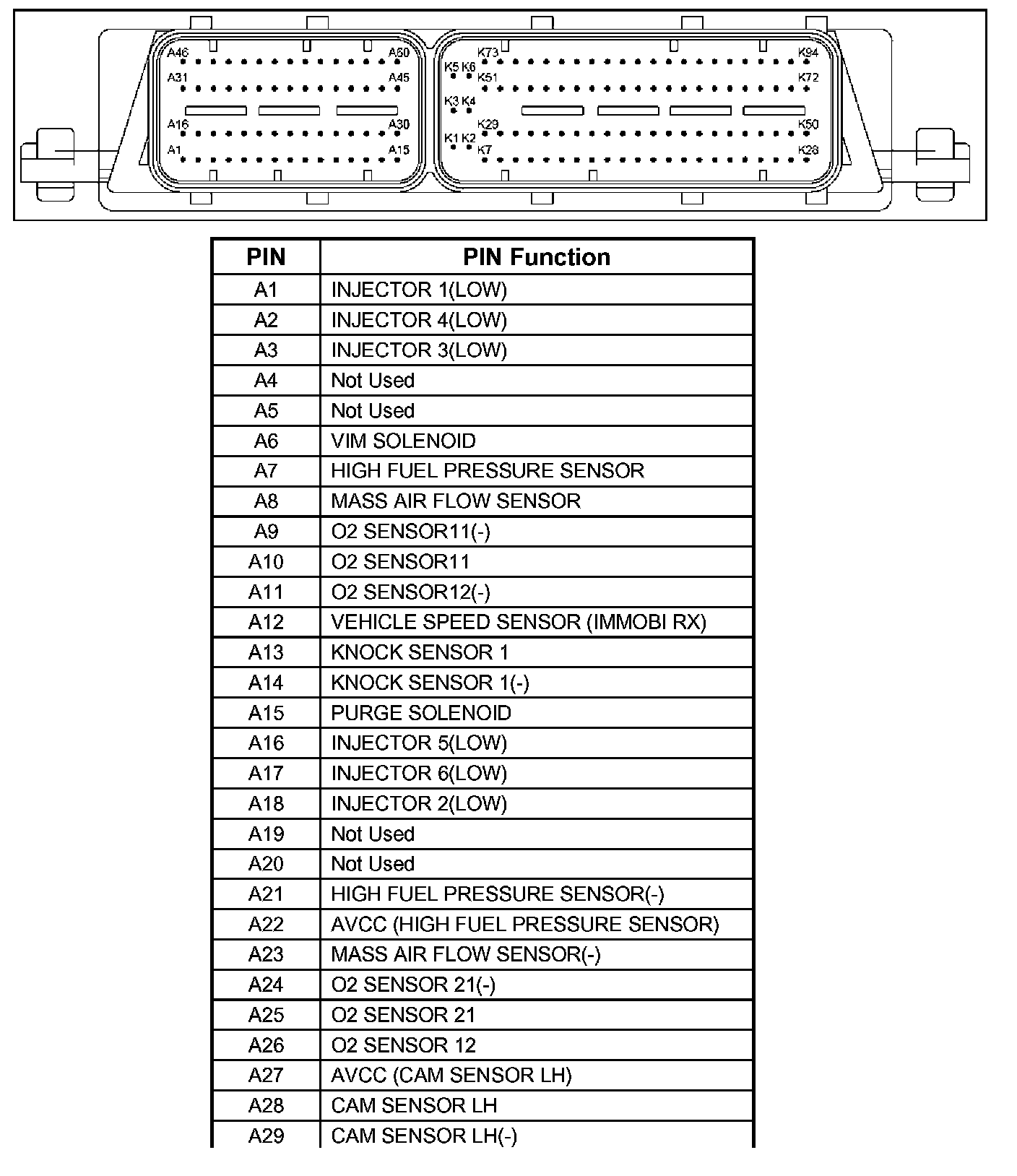

ECM Pinout Table Connector A1 - A29:

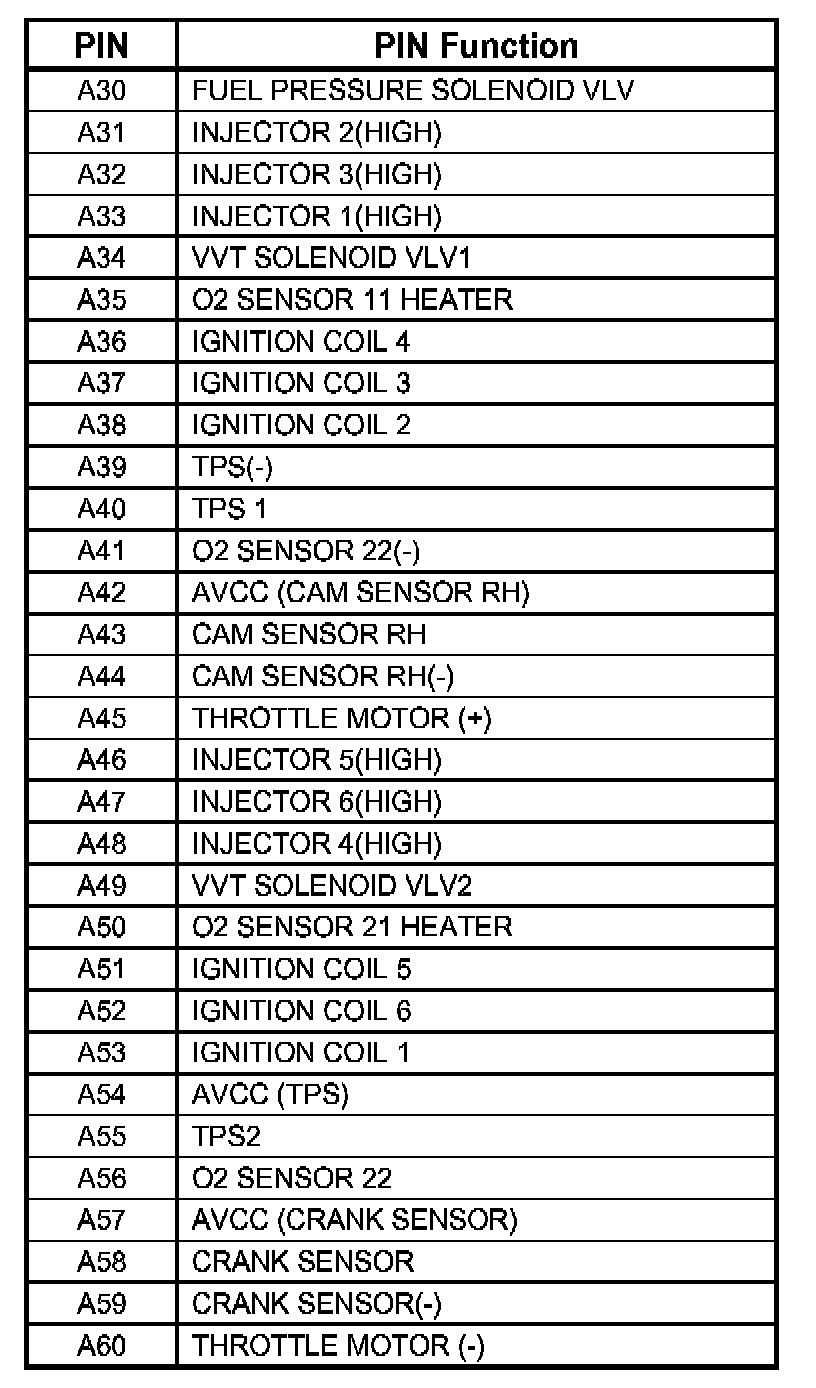

ECM Pinout Table Connector A30 - A60:

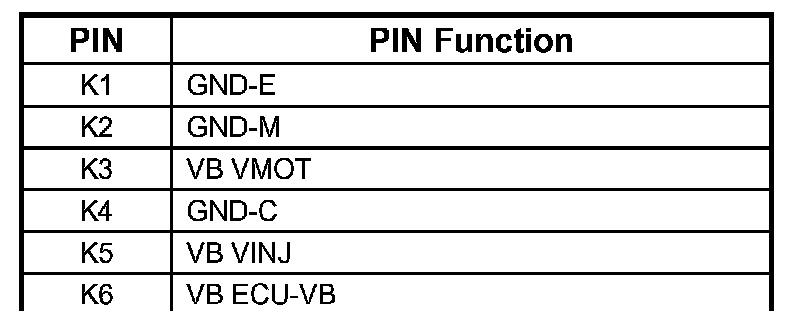

ECM Pinout Table Connector K1 - K6:

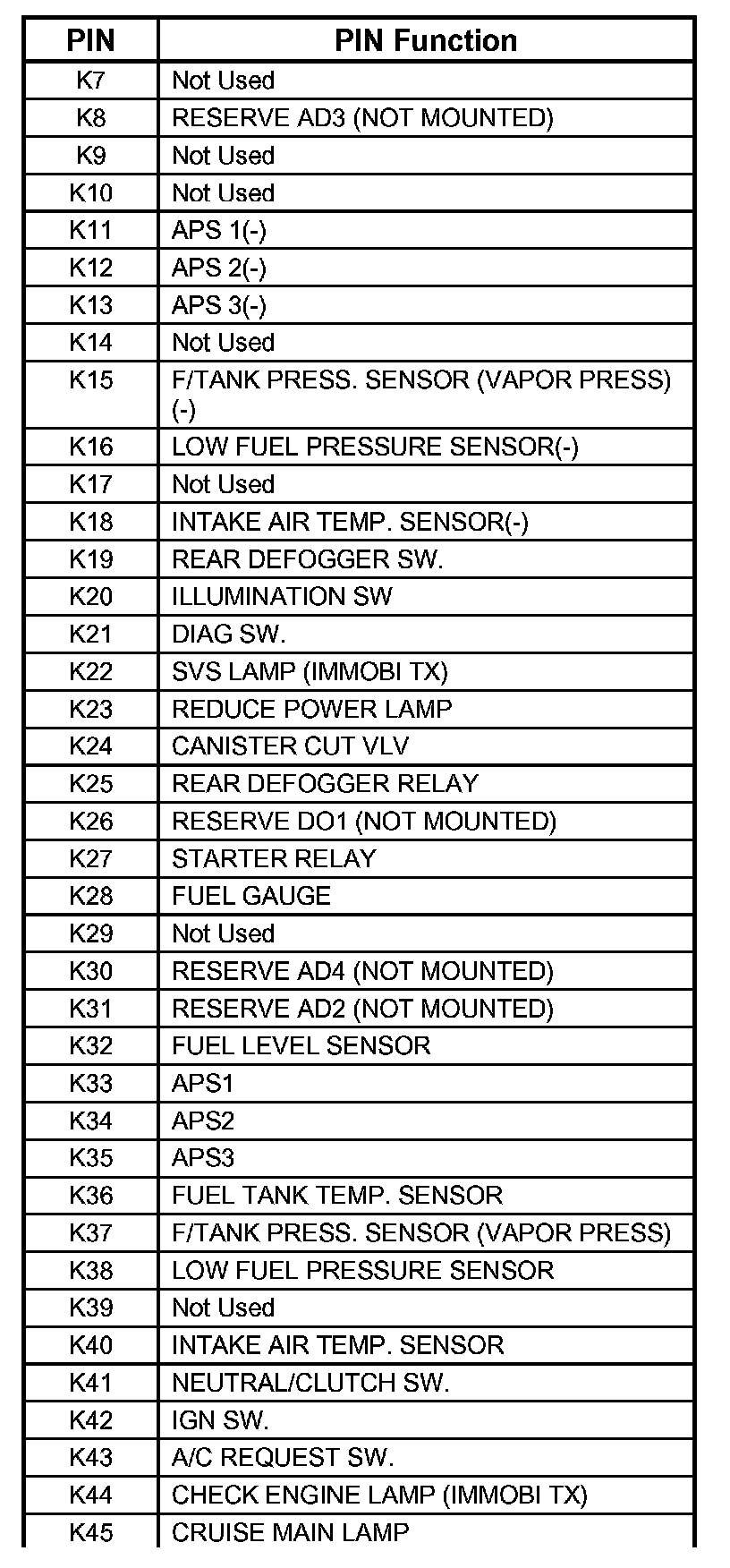

ECM Pinout Table Connector K7 - K45:

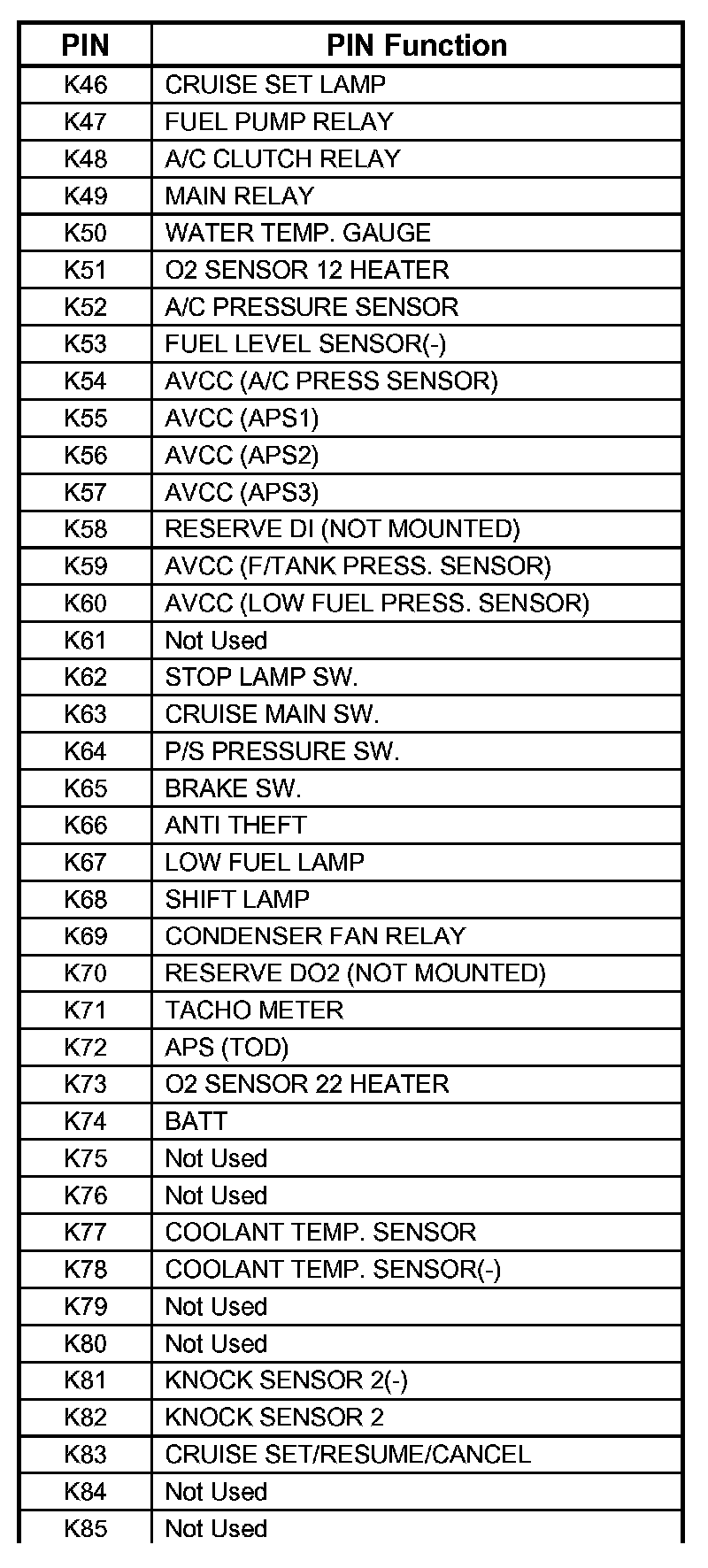

ECM Pinout Table Connector K46 - K85:

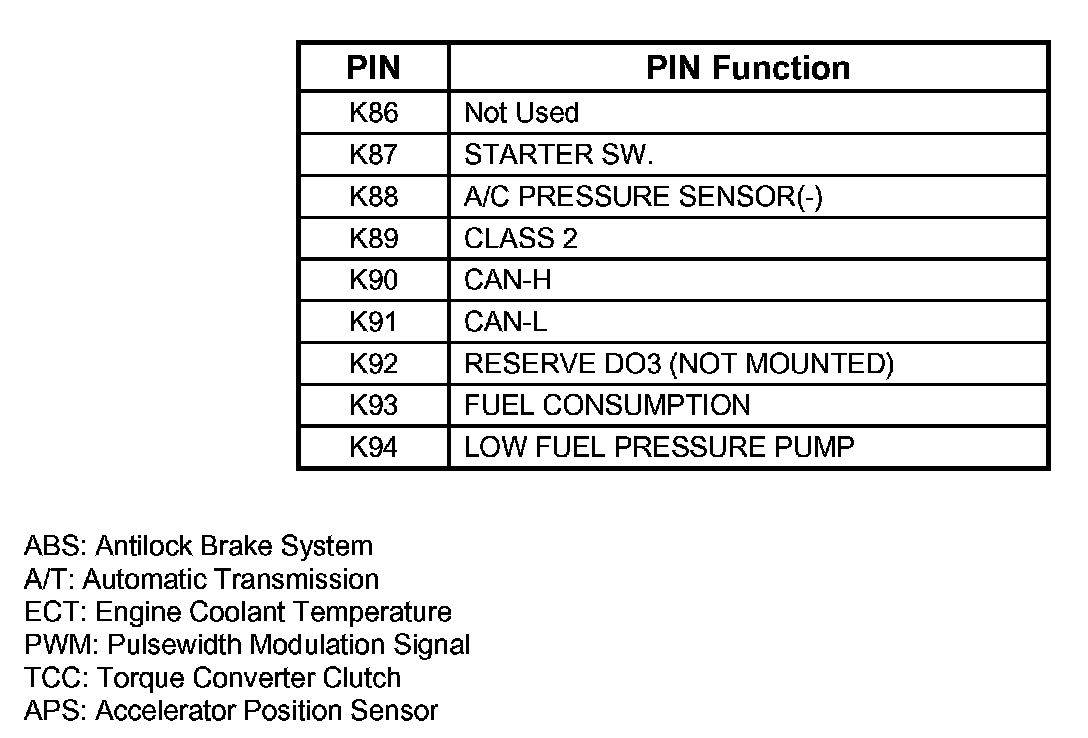

ECM Pinout Table Connector K86 - K94:
