Home >> Isuzu >> 2004 >> Ascender 2WD L6-4.2L >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Engine >> Lower Engine Components

Lower Engine Components

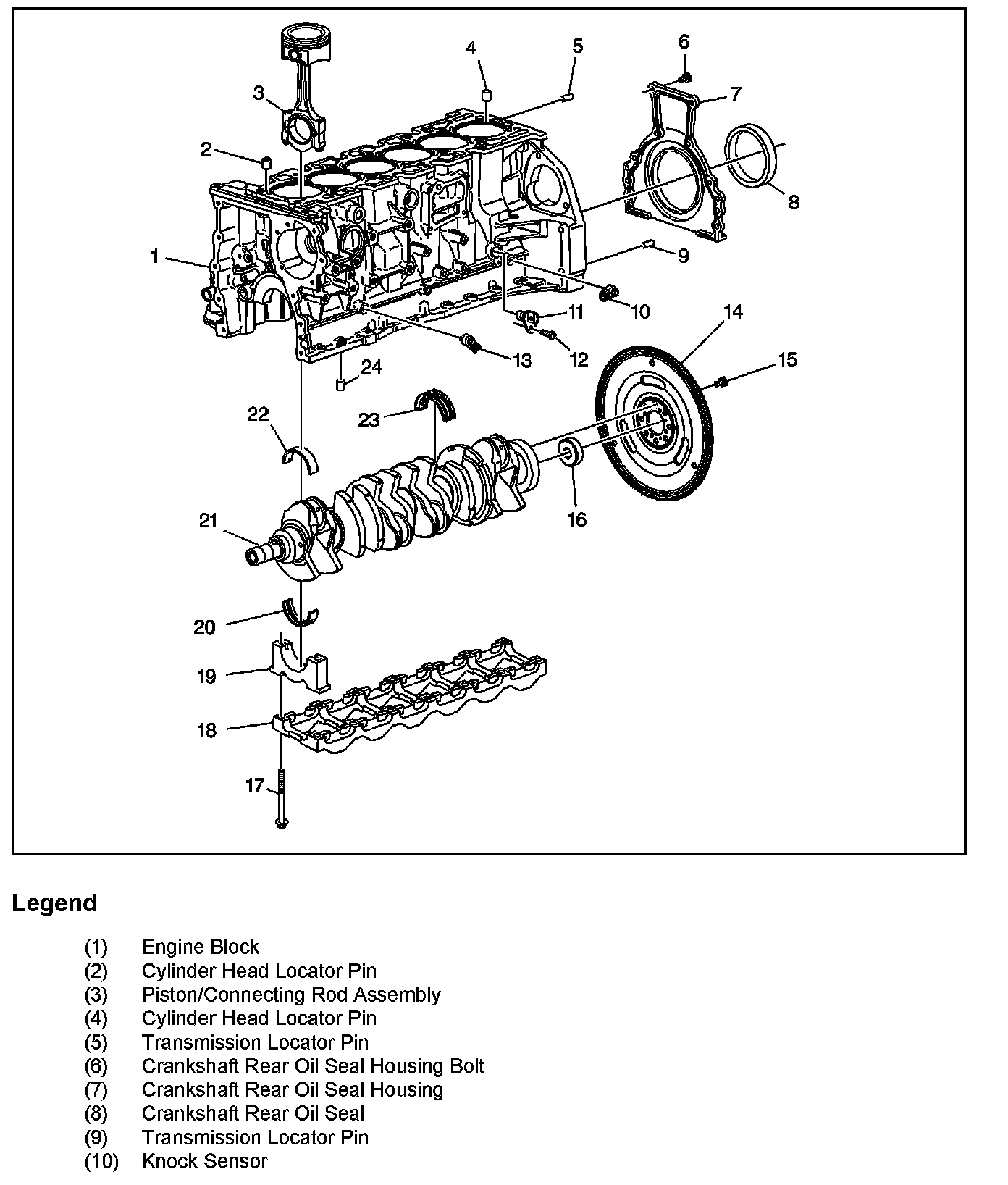

Lower Engine Components (1 Of 2):

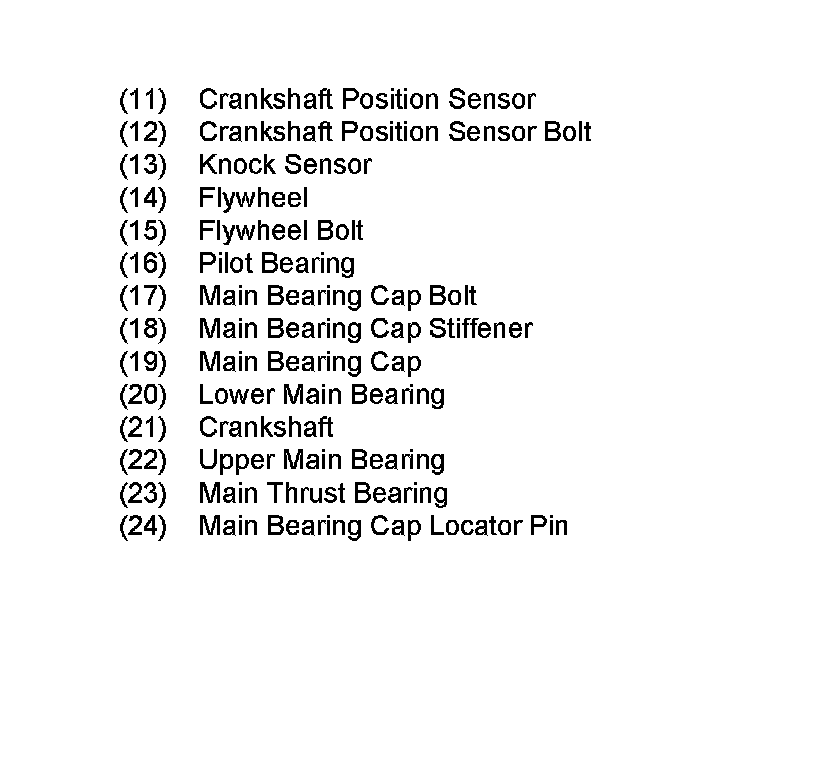

Lower Engine Components (2 Of 2):
