Home >> Isuzu >> 2004 >> Ascender 2WD L6-4.2L >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Engine >> Engine Cover and Components

Engine Cover and Components

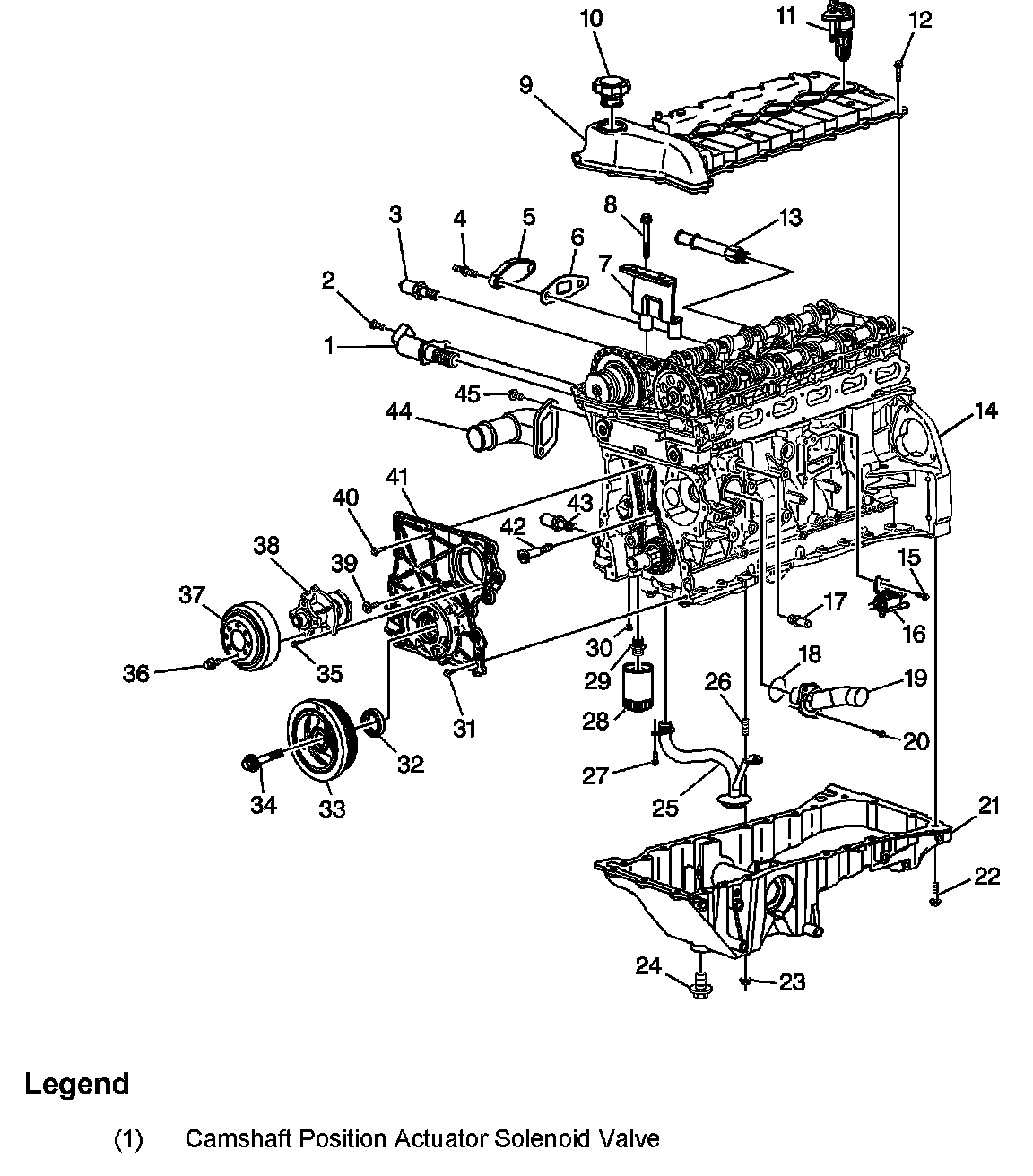

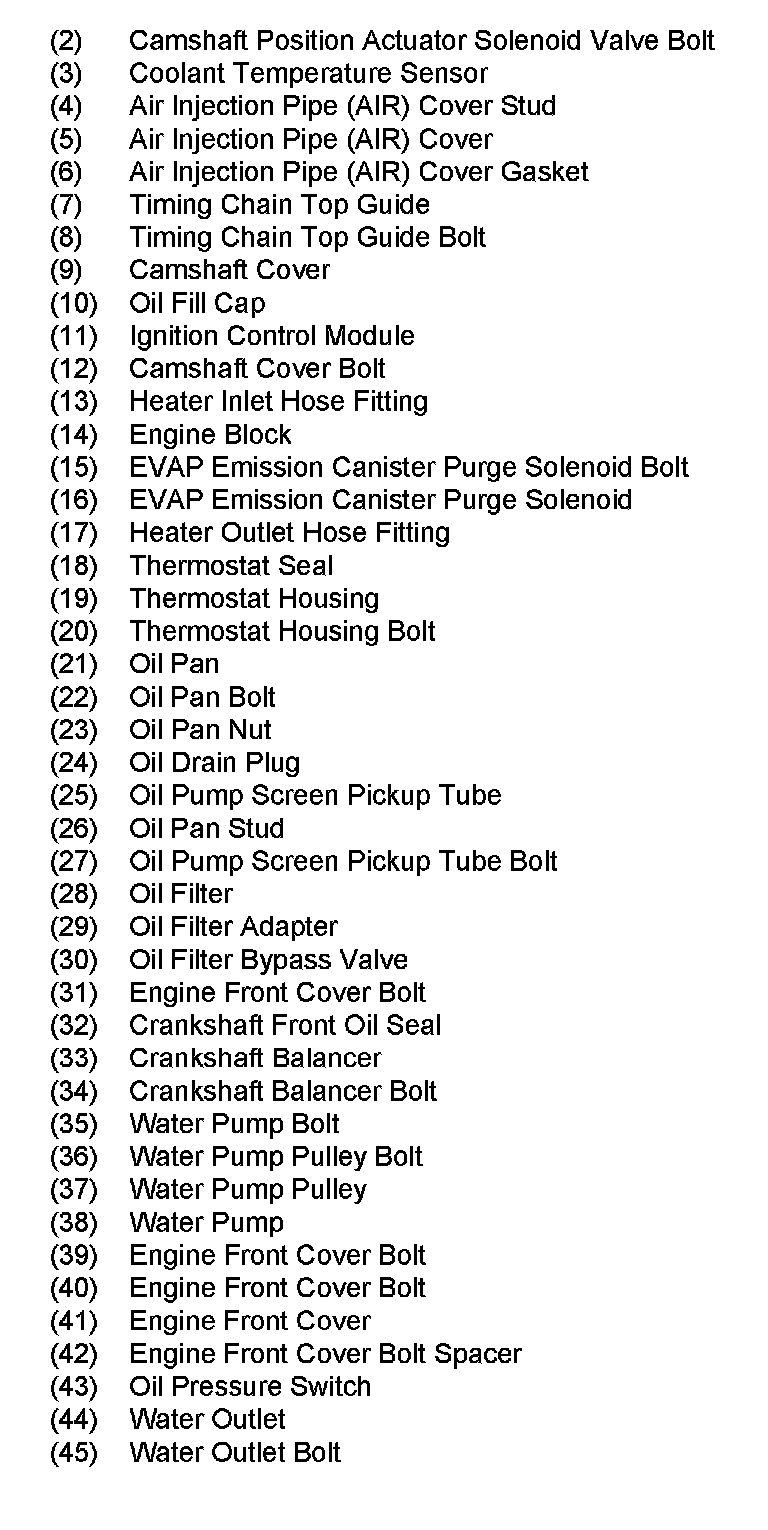

Engine Cover and Components (1 Of 2):

Engine Cover and Components (2 Of 2):
