Power Trunk / Liftgate Control Module
Power Trunk / Liftgate Control Module

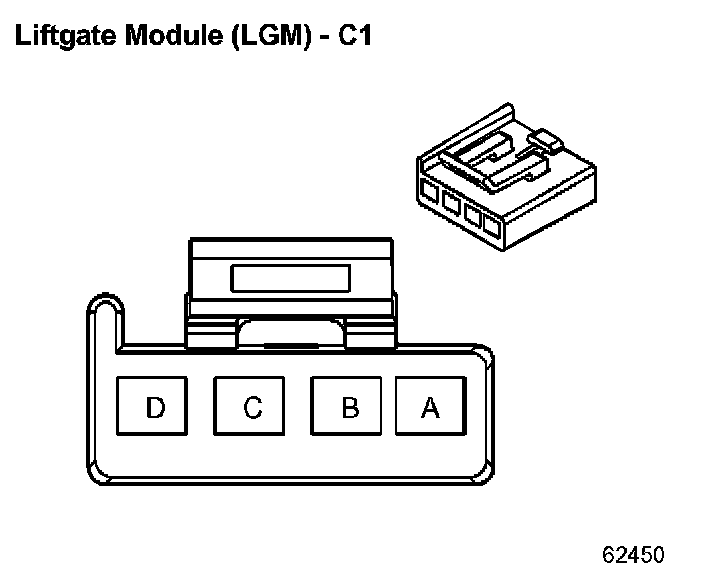

Liftgate Module (LGM) - C1:

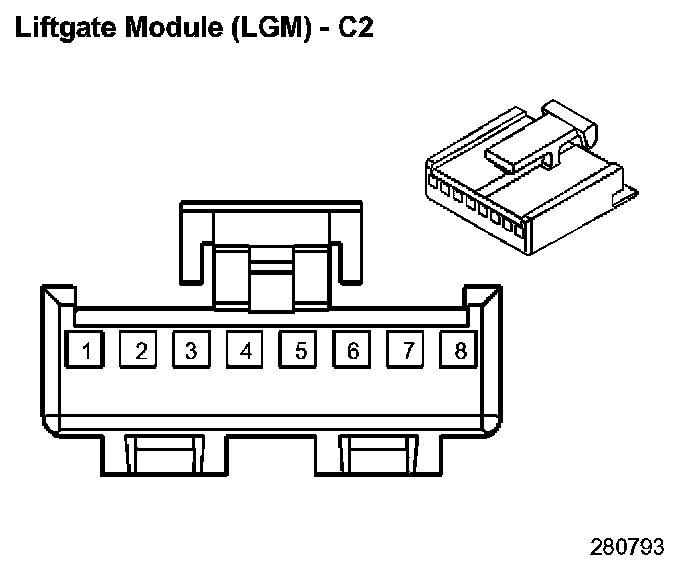

Liftgate Module (LGM) - C2:

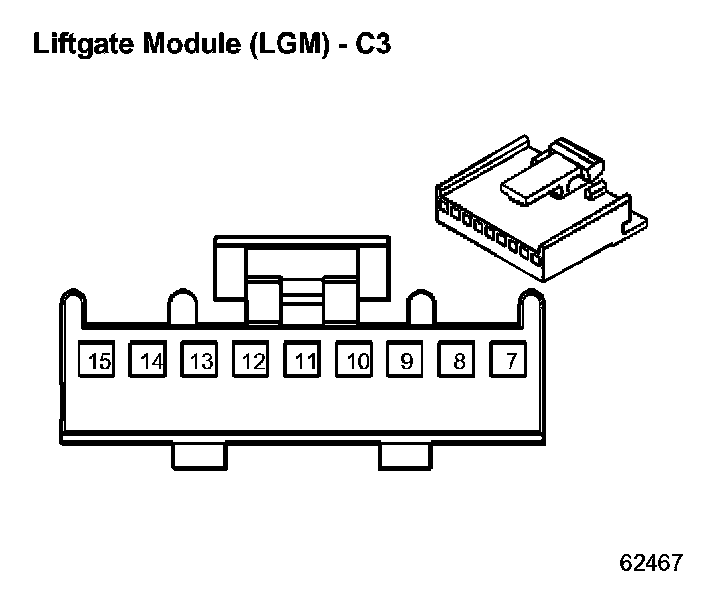

Liftgate Module (LGM) - C3:
