Air Bag Control Module

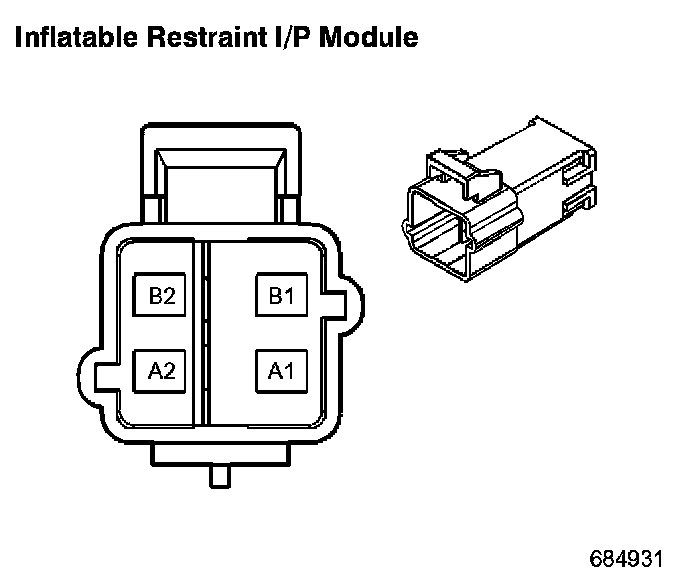

Inflatable Restraint I/P Module:

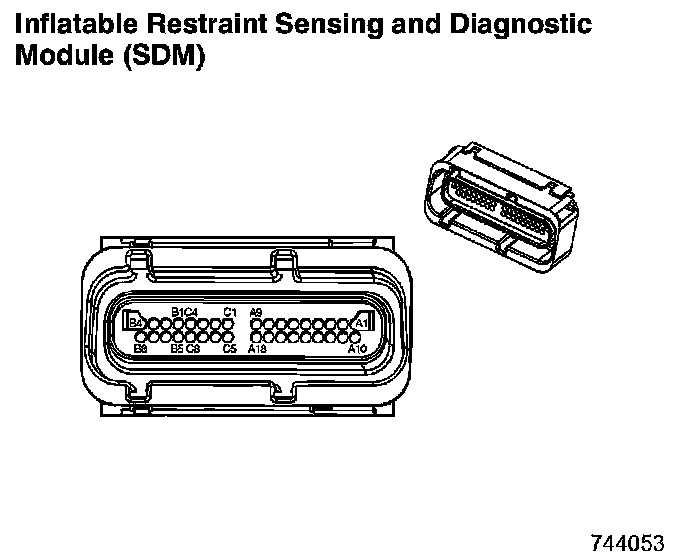

Inflatable Restraint Sensing And Diagnostic Module (SDM):

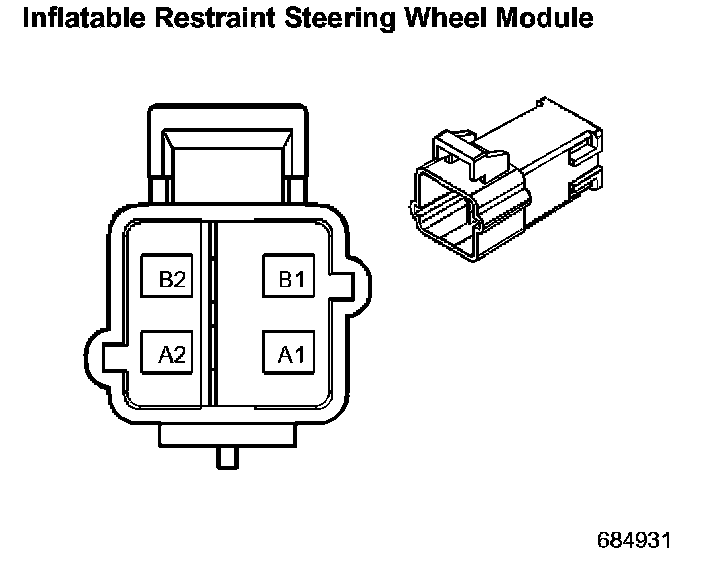

Inflatable Restraint Steering Wheel Module:
