Wiper Control Module: Diagrams

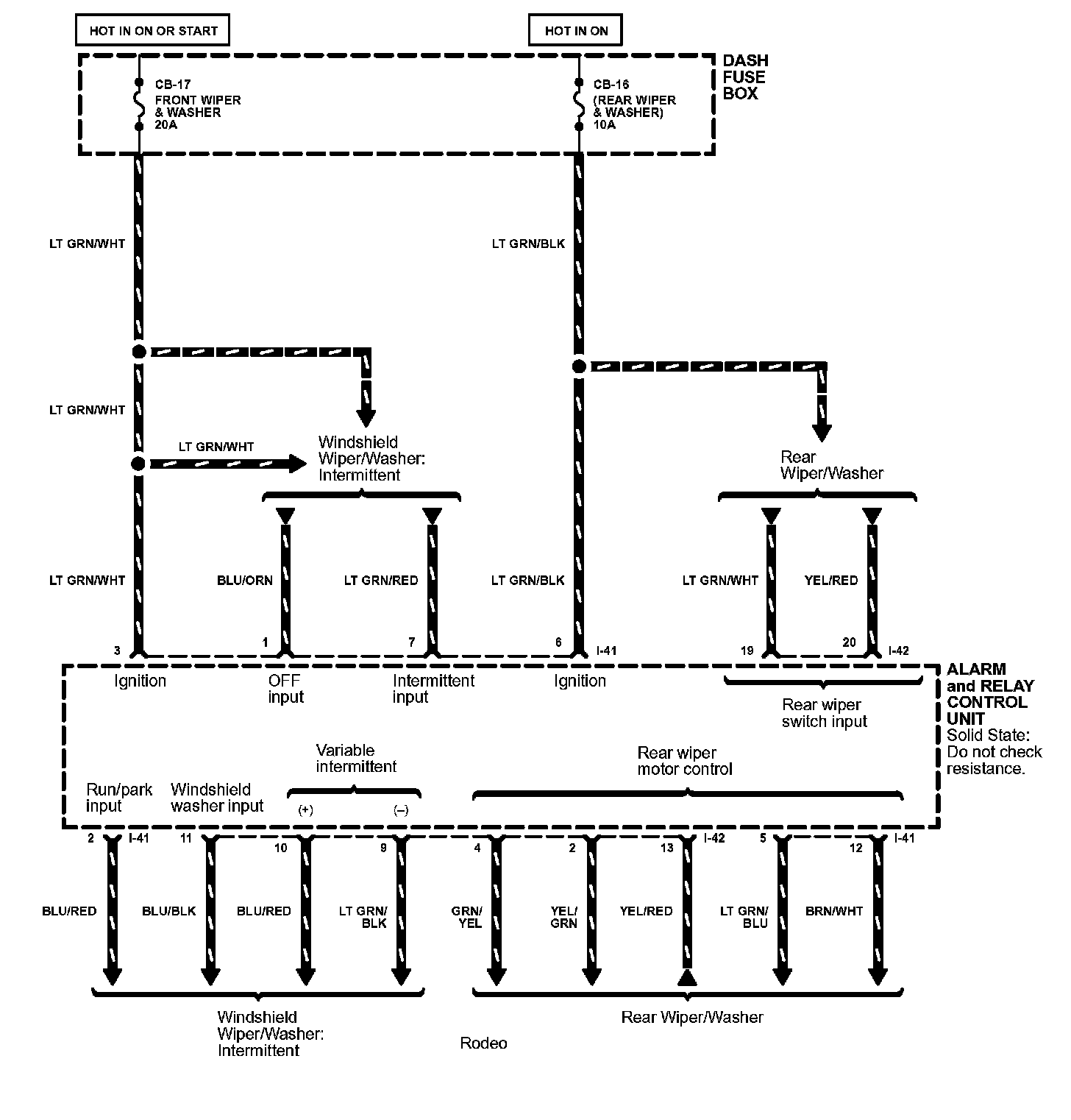

Alarm And Relay Controls Image 70:

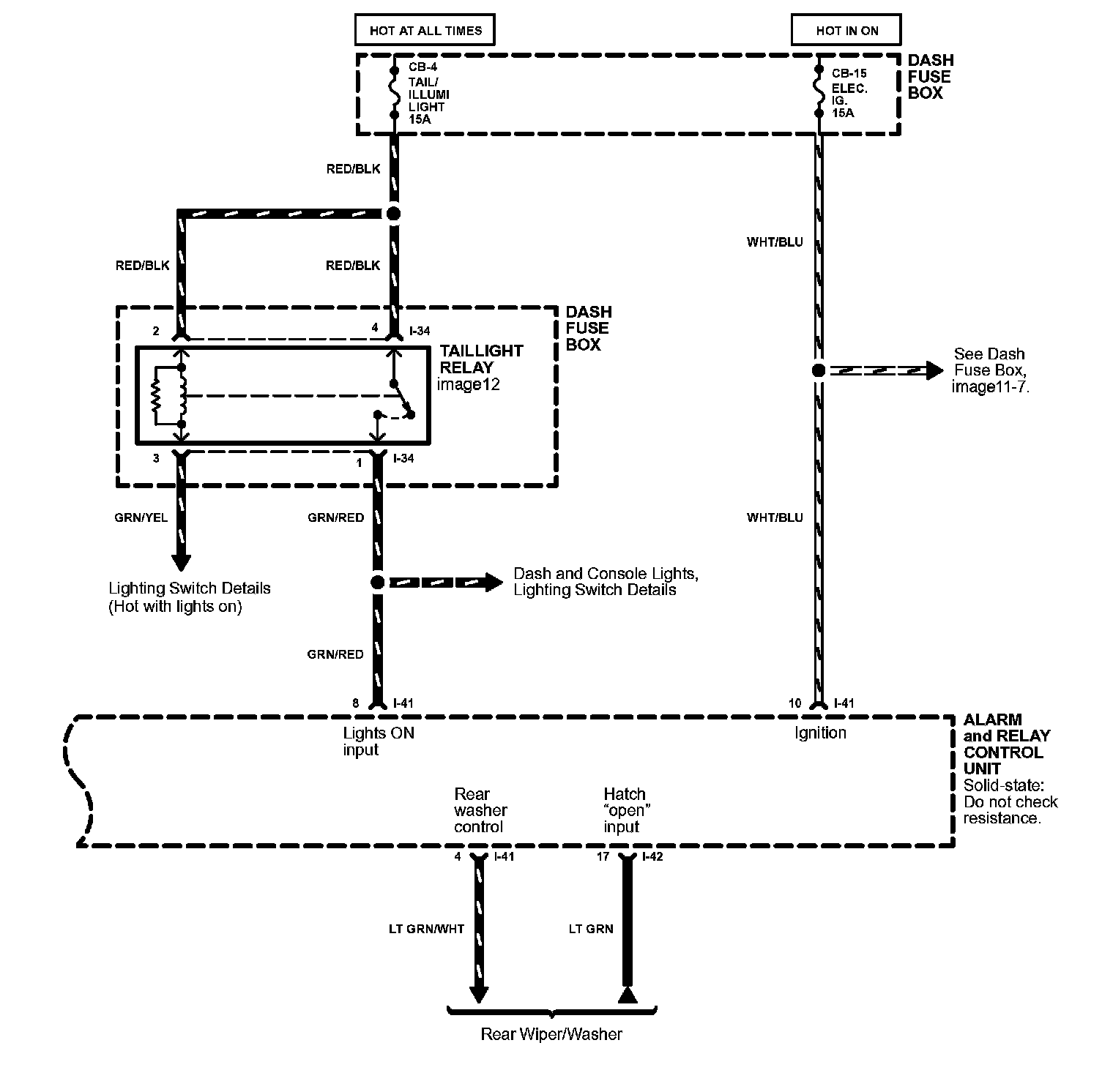

Alarm And Relay Controls Image 70-1:

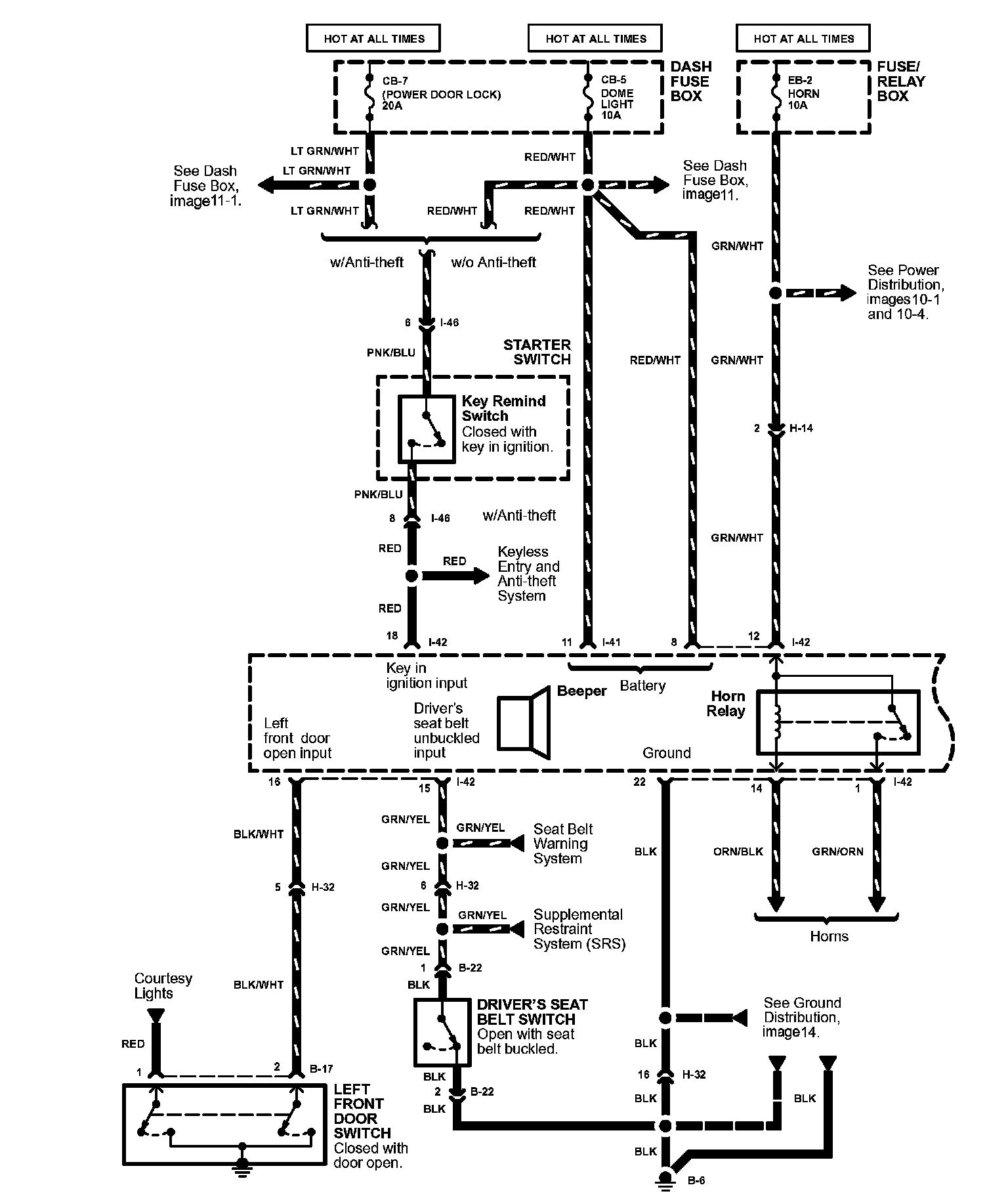

Alarm And Relay Controls Image 70-2:
