Home >> Isuzu >> 2003 >> Rodeo 2WD L4-2.2L >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Differential Assembly >> Front

Front

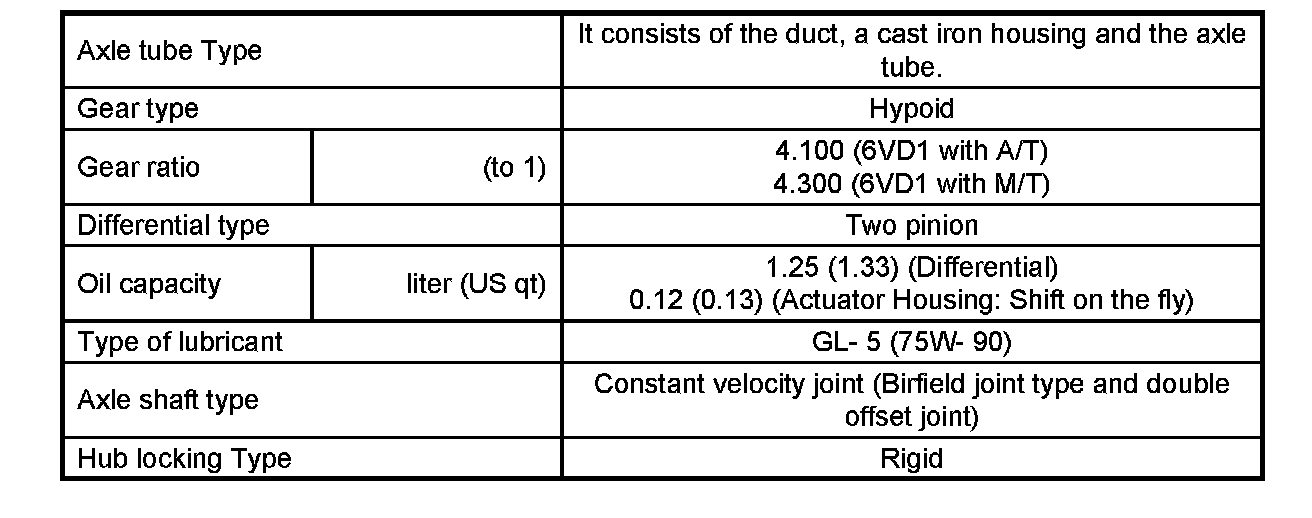

FRONT DIFFERENTIAL





GENERAL SPECIFICATIONS

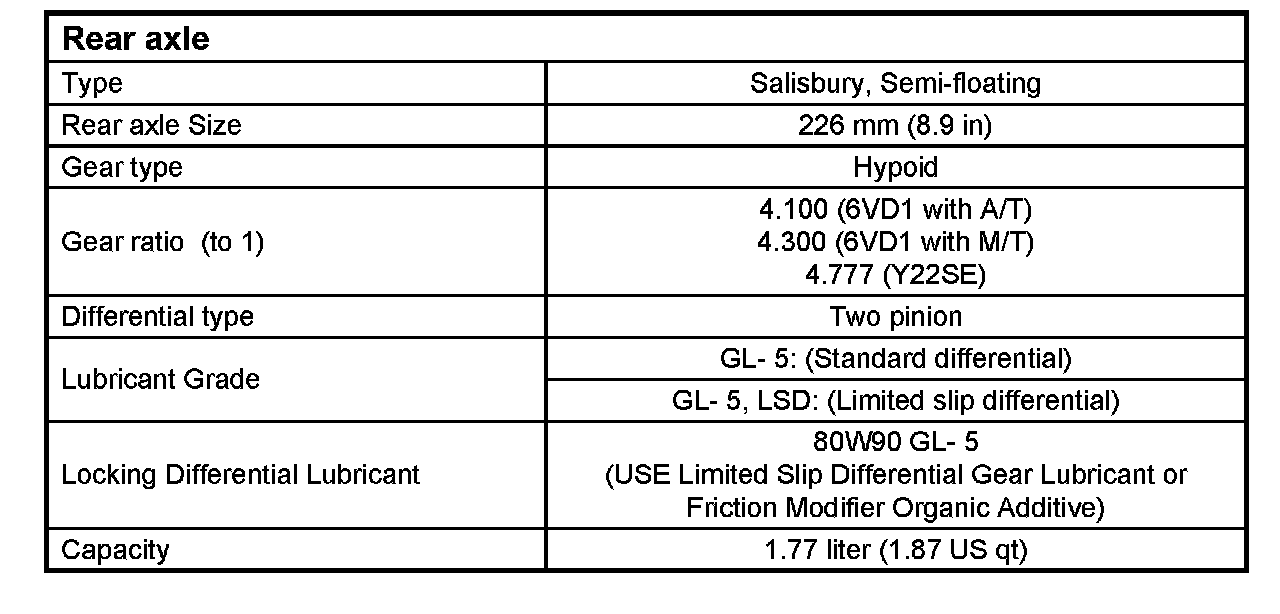

REAR DIFFERENTIAL





GENERAL SPECIFICATIONS

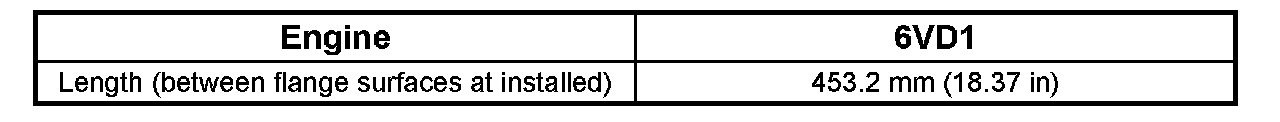

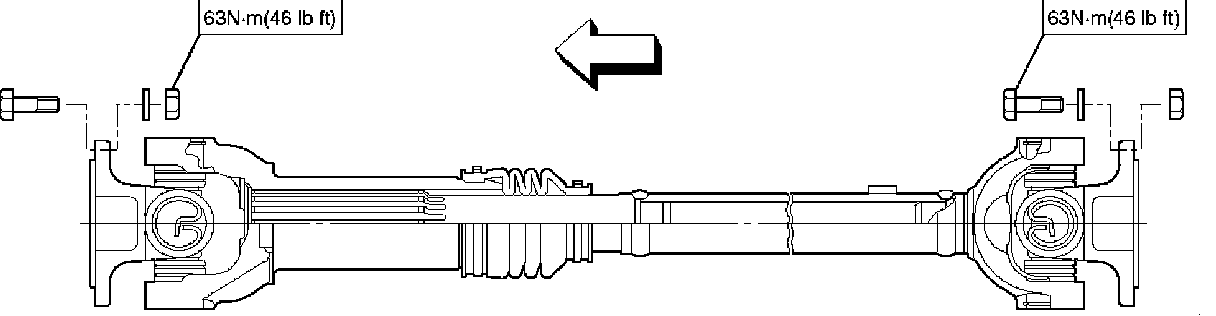

FRONT PROPELLER SHAFT





GENERAL SPECIFICATIONS





TORQUE SPECIFICATIONS

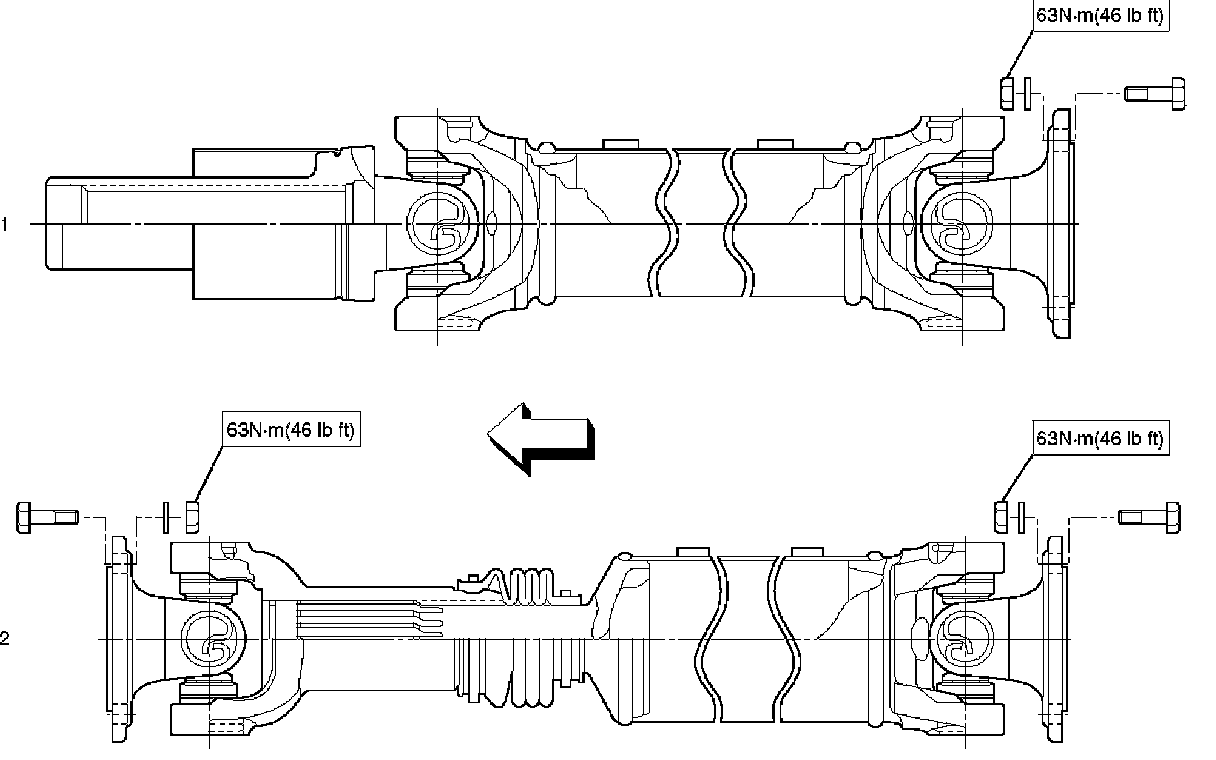

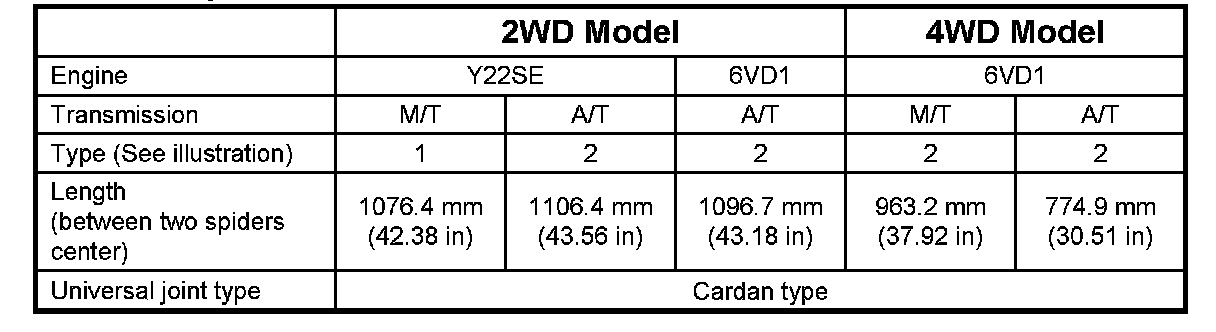

REAR PROPELLER SHAFT





GENERAL SPECIFICATIONS





TORQUE SPECIFICATIONS
