Locations
>>
Component Locations
>>

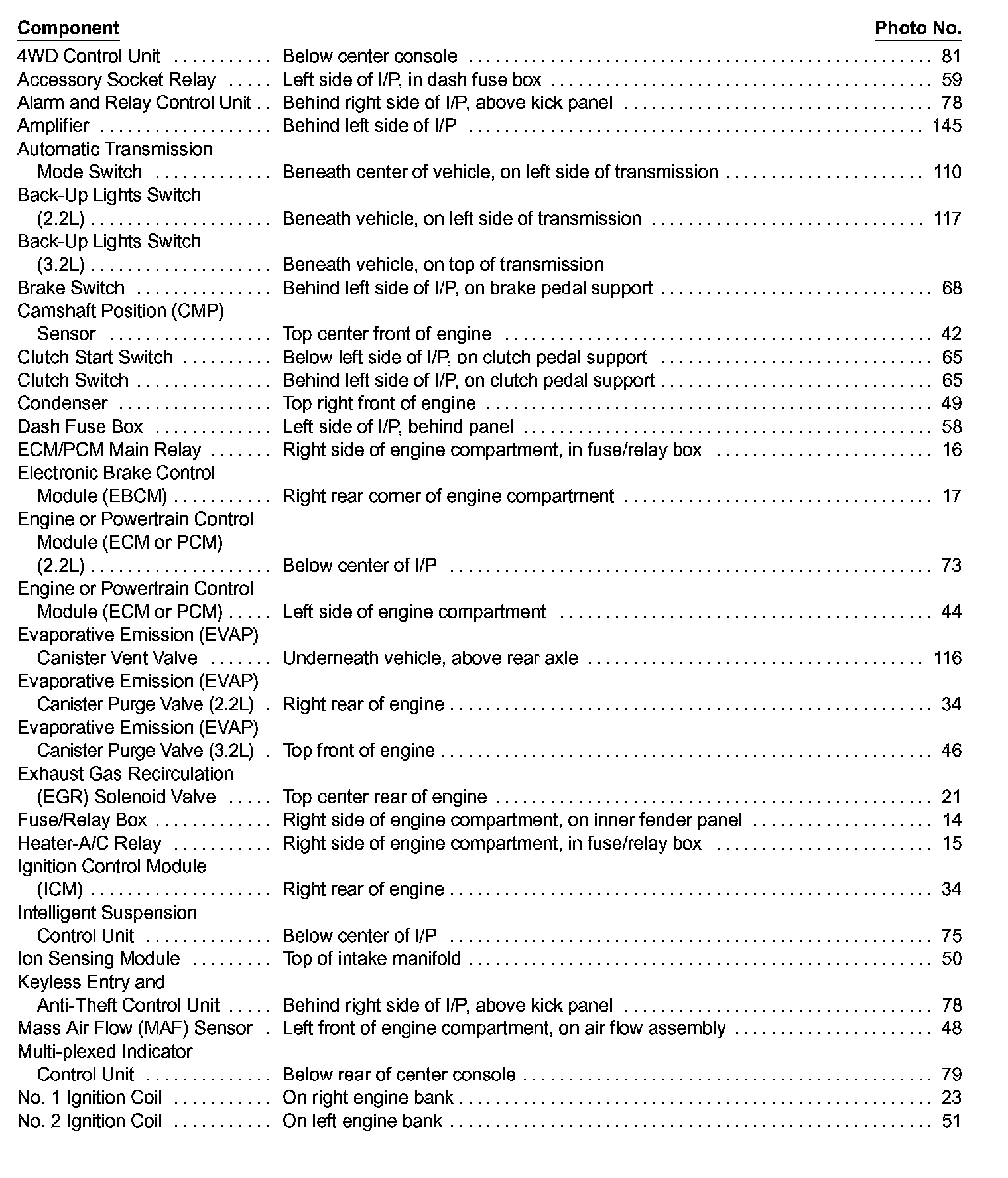

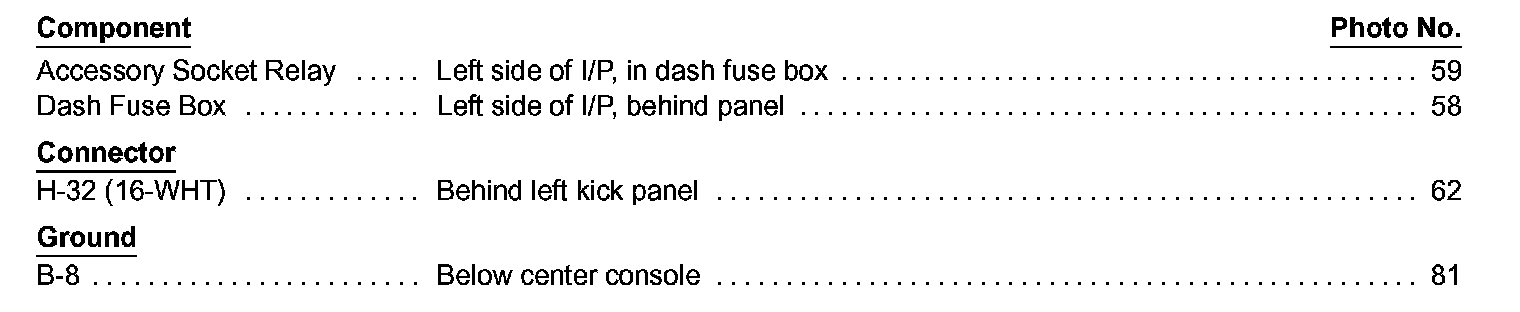

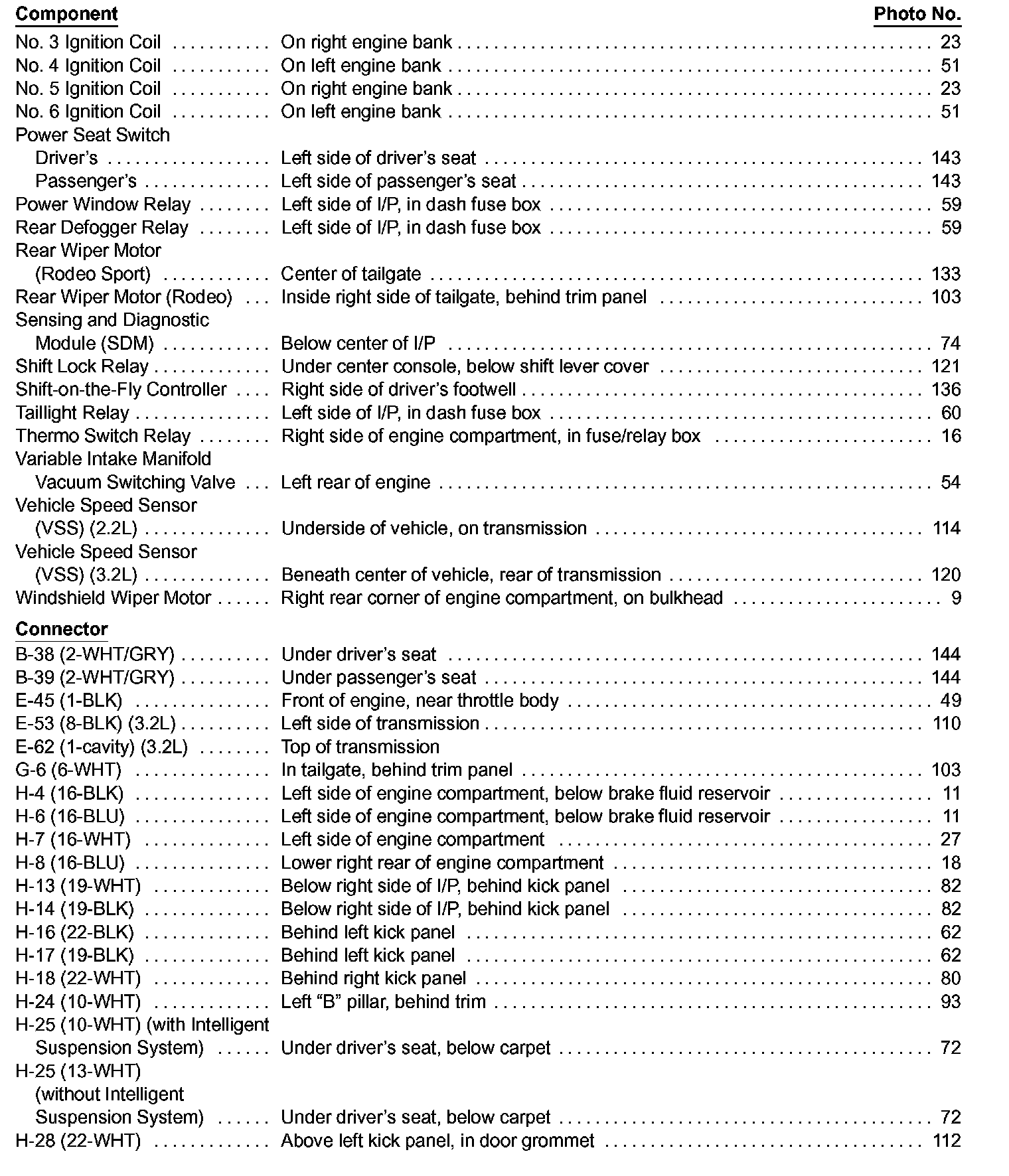

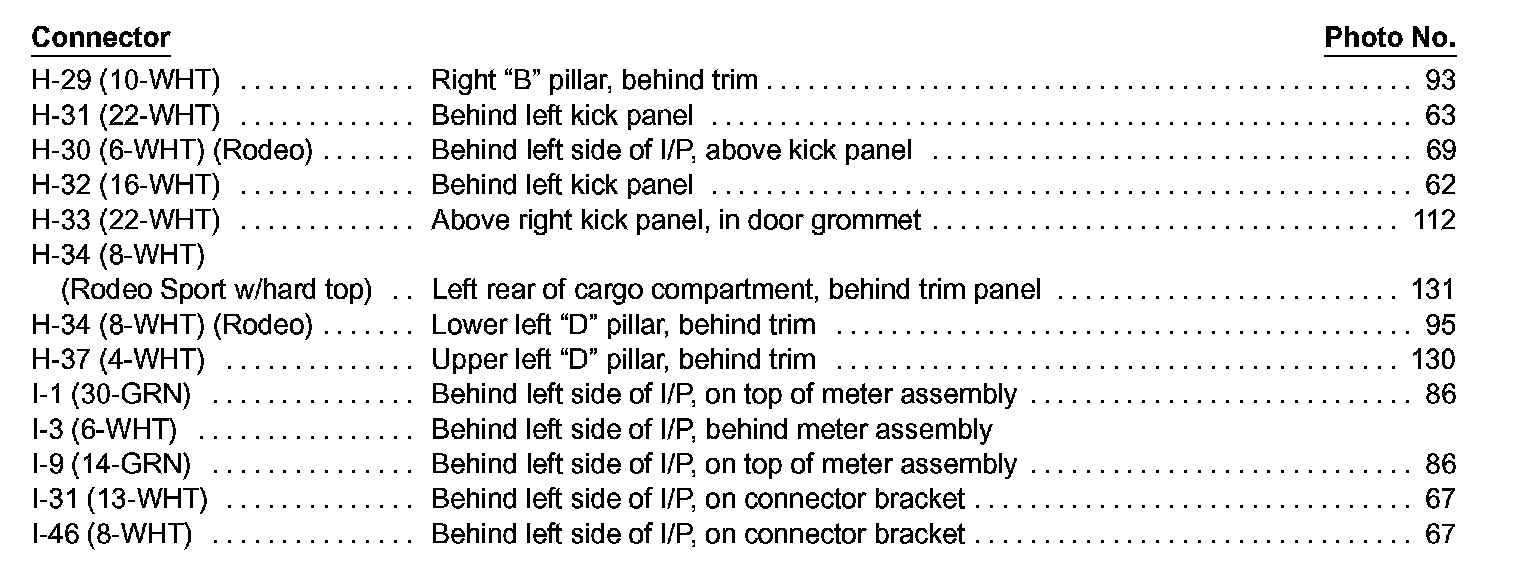

Component List
>>
Fuses and Fuse Block
Fuses and Fuse Block
Dash Fuse Box Index Image 11-8:
Dash Fuse Box Index Image 11-9:
Dash Fuse Box Index Image 11-10:
Accessory Sockets Index Image 156-1:
