Home >> Isuzu >> 2003 >> Rodeo 2WD L4-2.2L >> Repair and Diagnosis >> Locations >> Component Locations >> Component List >> Engine Controls

Engine Controls

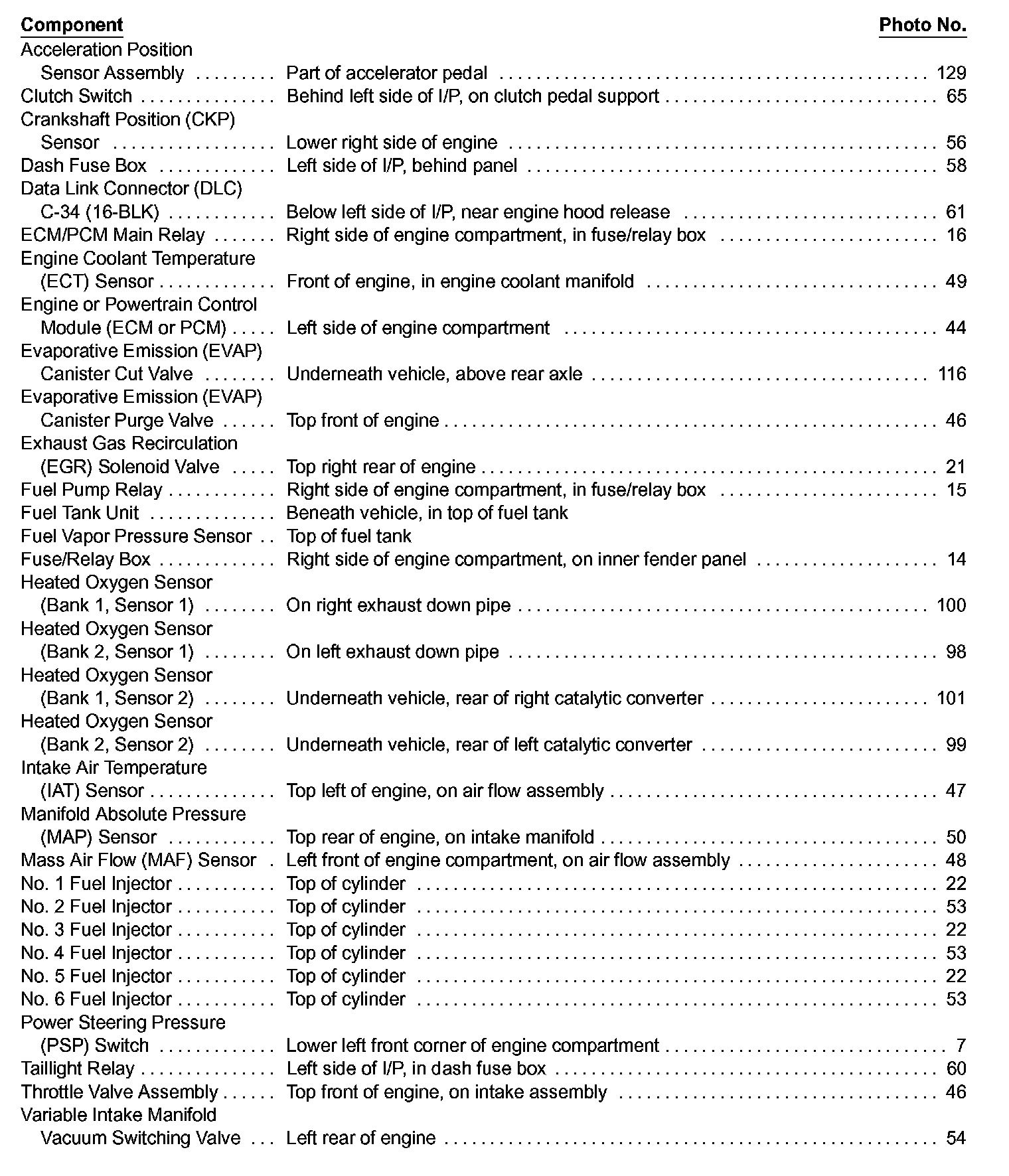

Engine Controls Index Image 23-9:

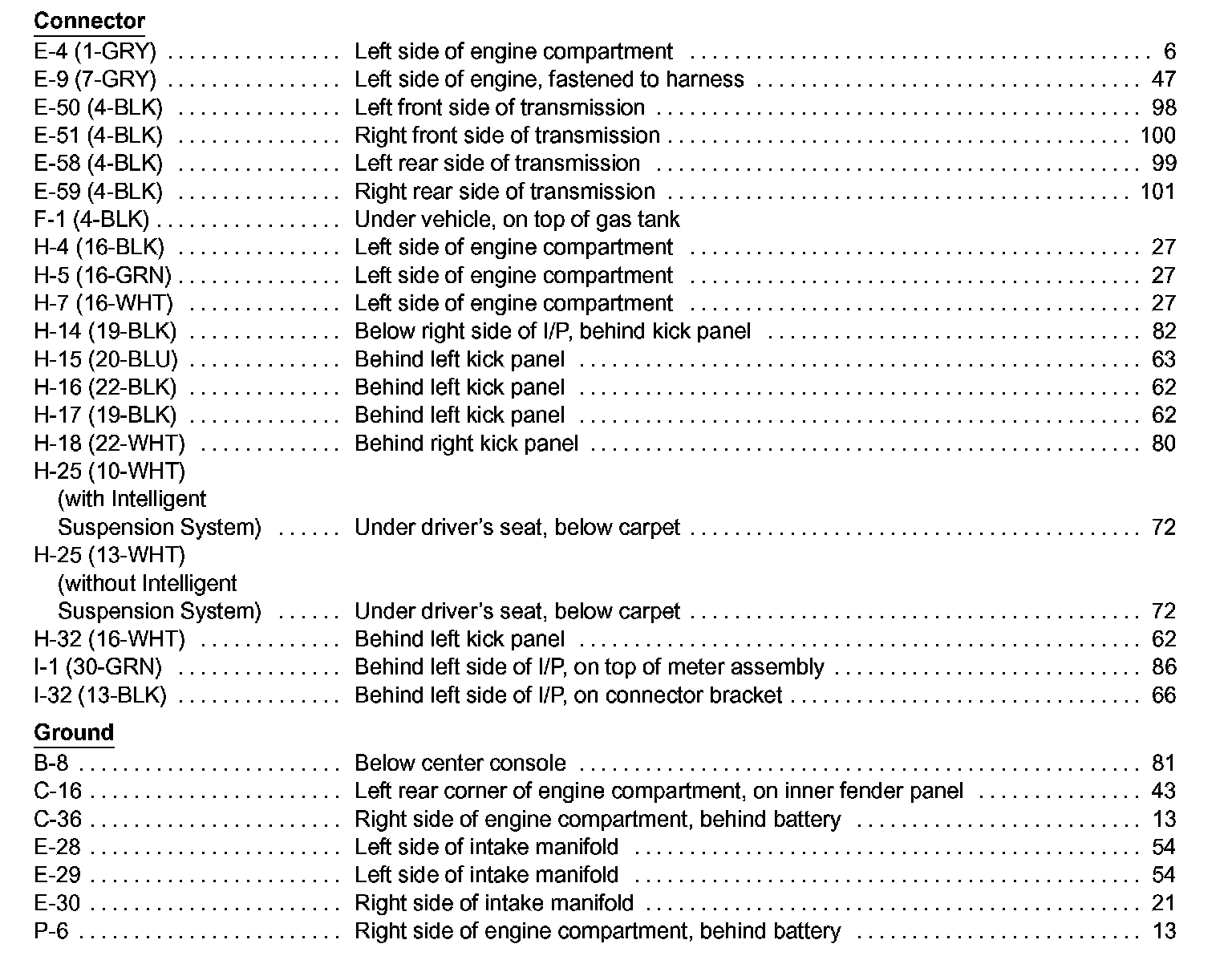

Engine Controls Index Image 23-10:

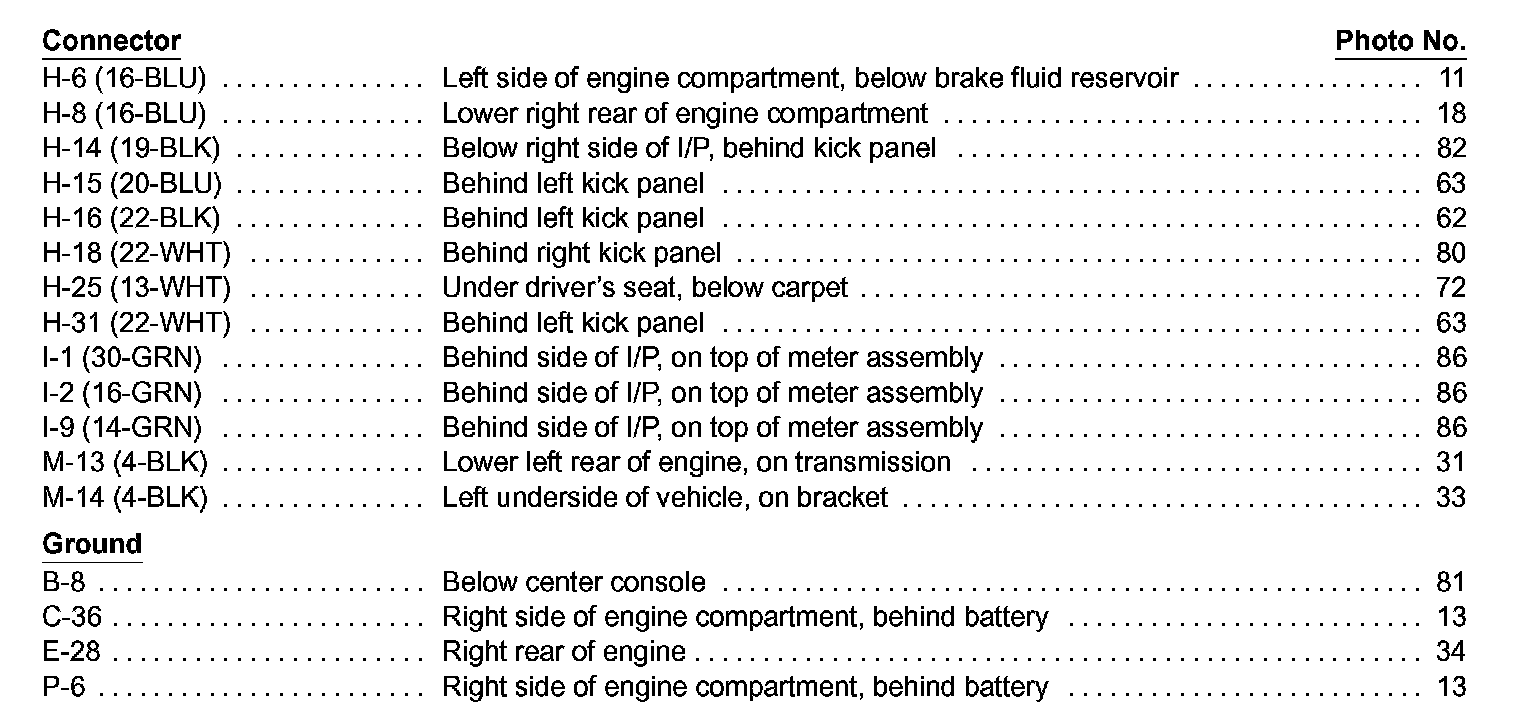

Engine Controls Index Image 24-9:

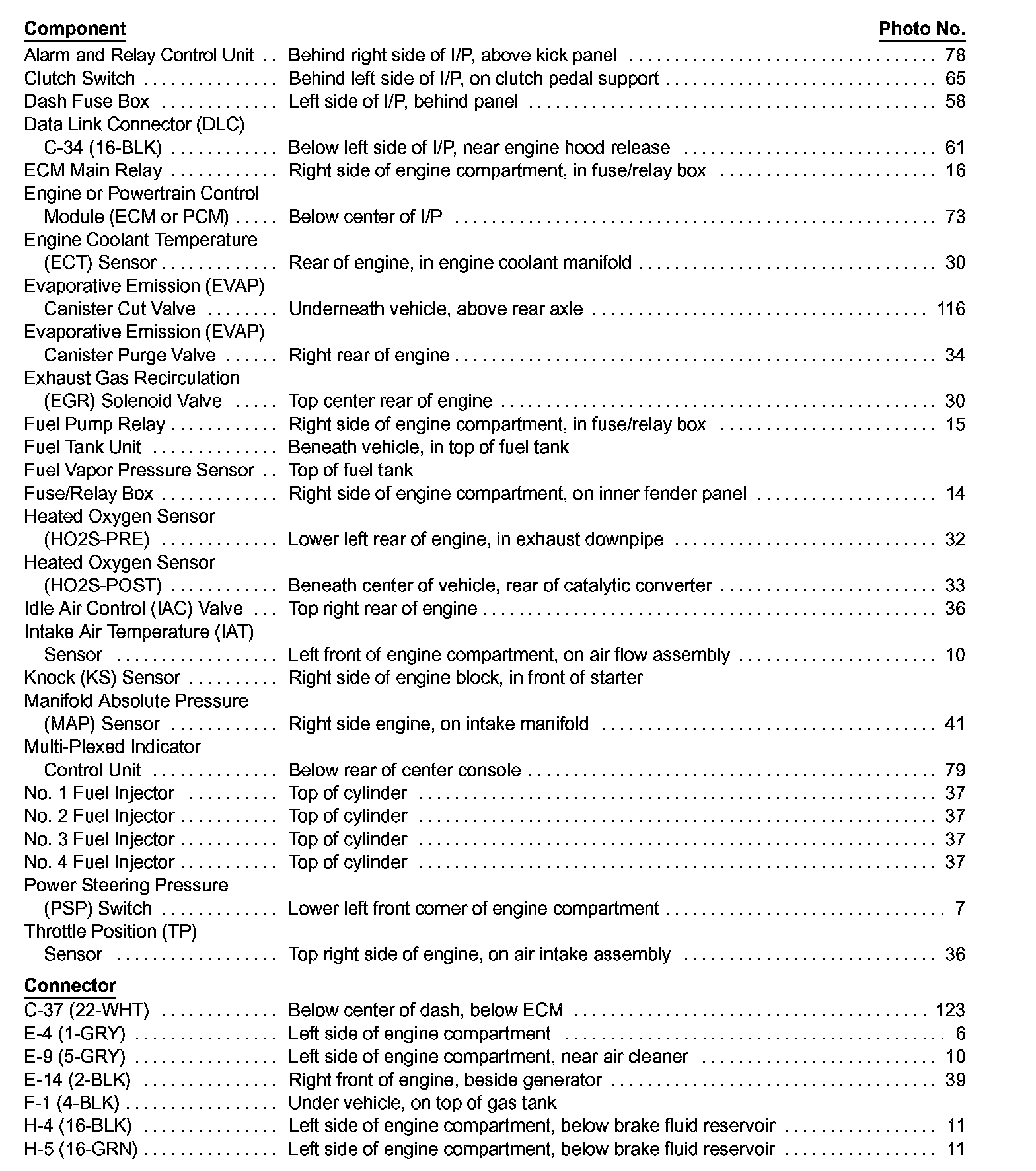

Engine Controls Index Image 24-10:
