Home >> Isuzu >> 2003 >> Rodeo 2WD L4-2.2L >> Repair and Diagnosis >> Heating and Air Conditioning >> Locations

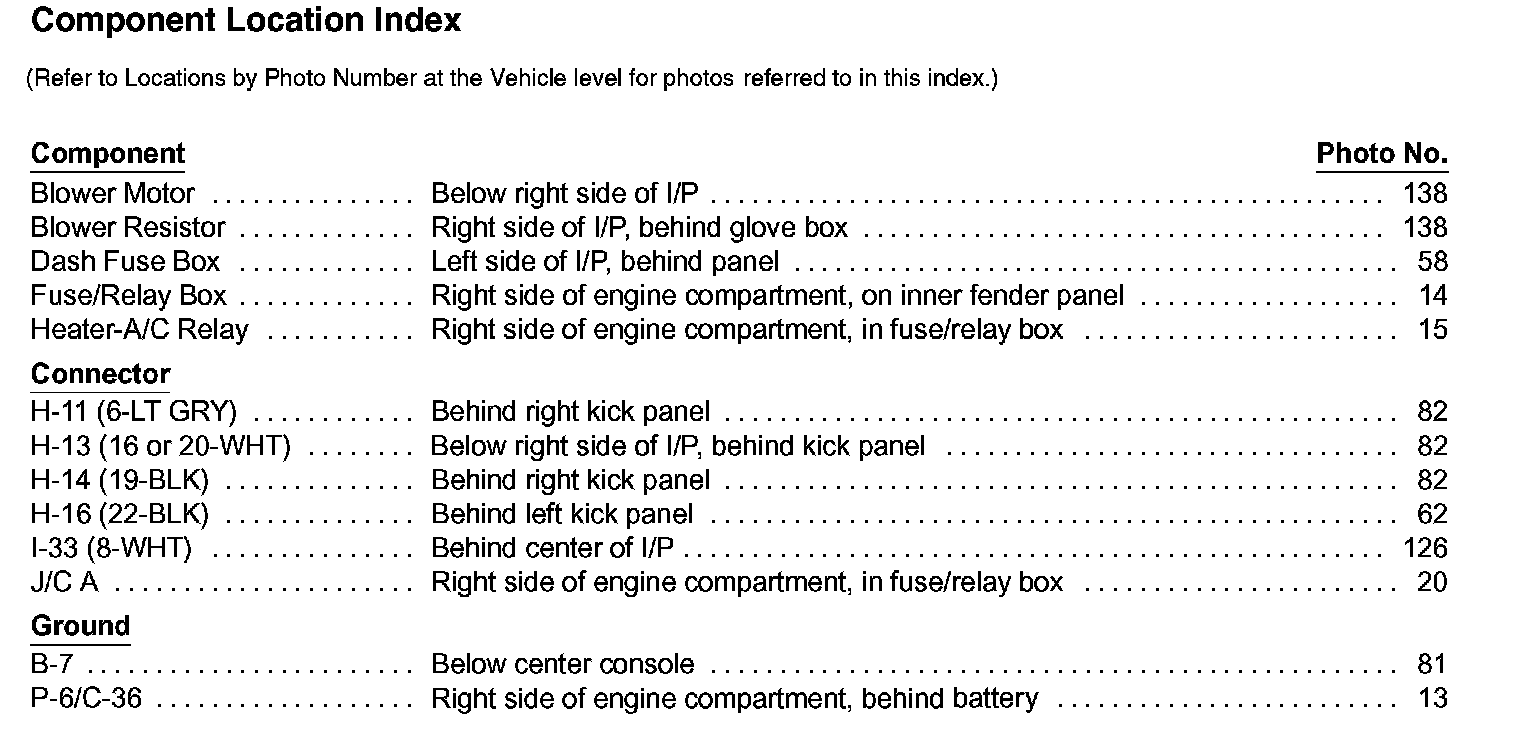

Heating and Air Conditioning: Locations

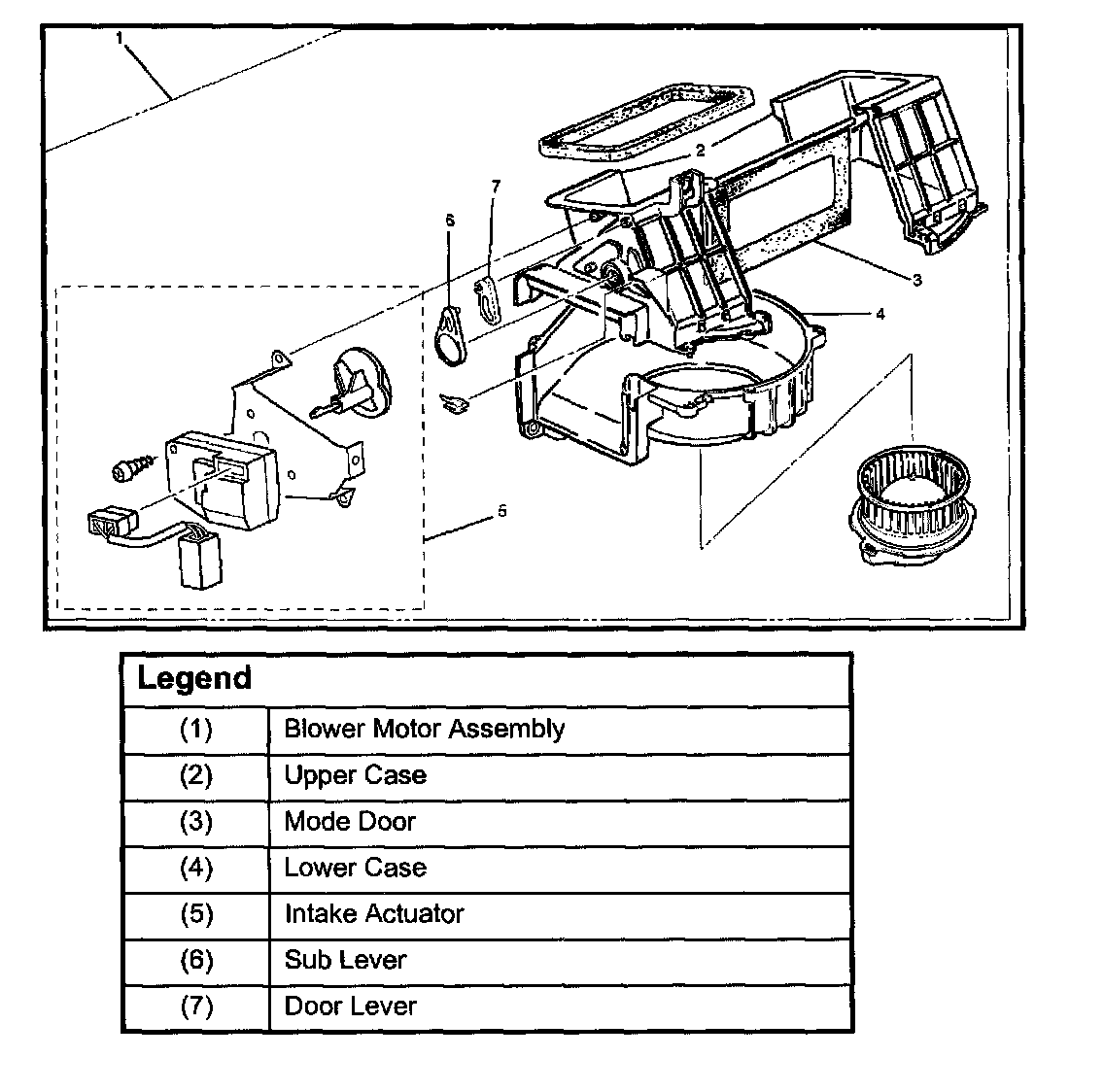

Blower Controls:

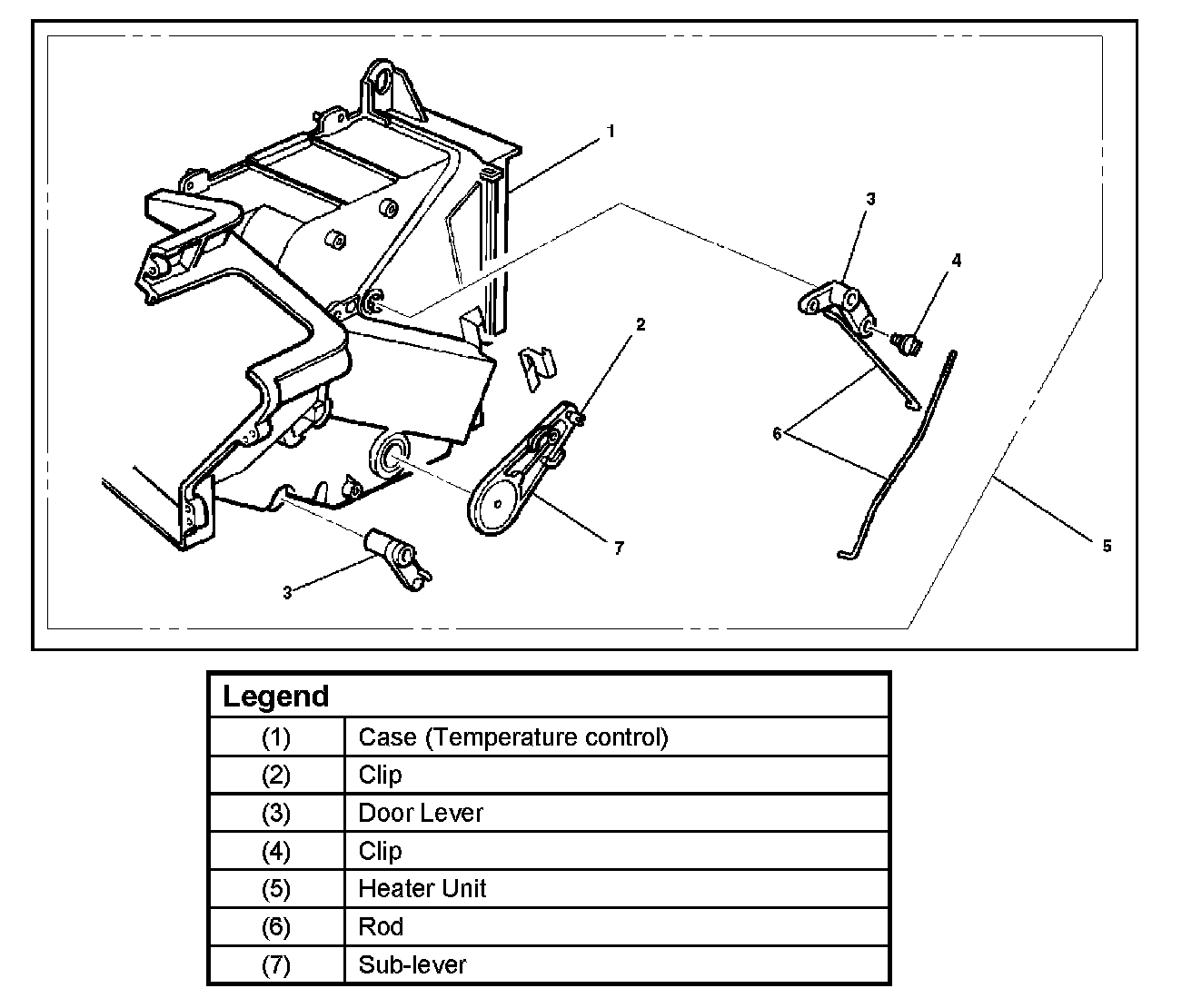

Heater Temperature Control Link Unit - Disassembled View:



Disassembled View:
