Condenser Fan: Testing and Inspection

Condenser Fan

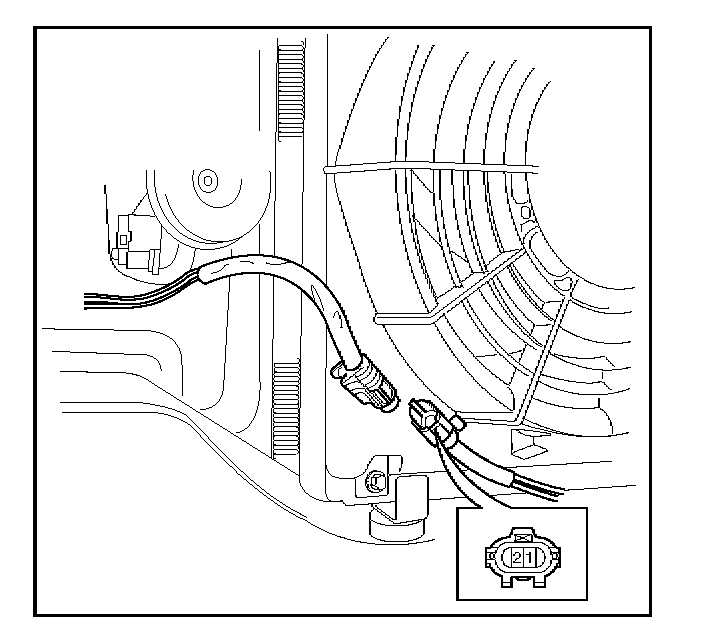

1. Disconnect the condenser fan connector.
2. Connect the battery positive terminal to the condenser fan side connector terminal No.C-24-1 and negative to the No.C-24-2.
3. Check that condenser fan is rotating correctly.
