Home >> Isuzu >> 2003 >> Rodeo 2WD L4-2.2L >> Repair and Diagnosis >> Heating and Air Conditioning >> Compressor HVAC >> Diagrams >> Exploded Views

Exploded Views

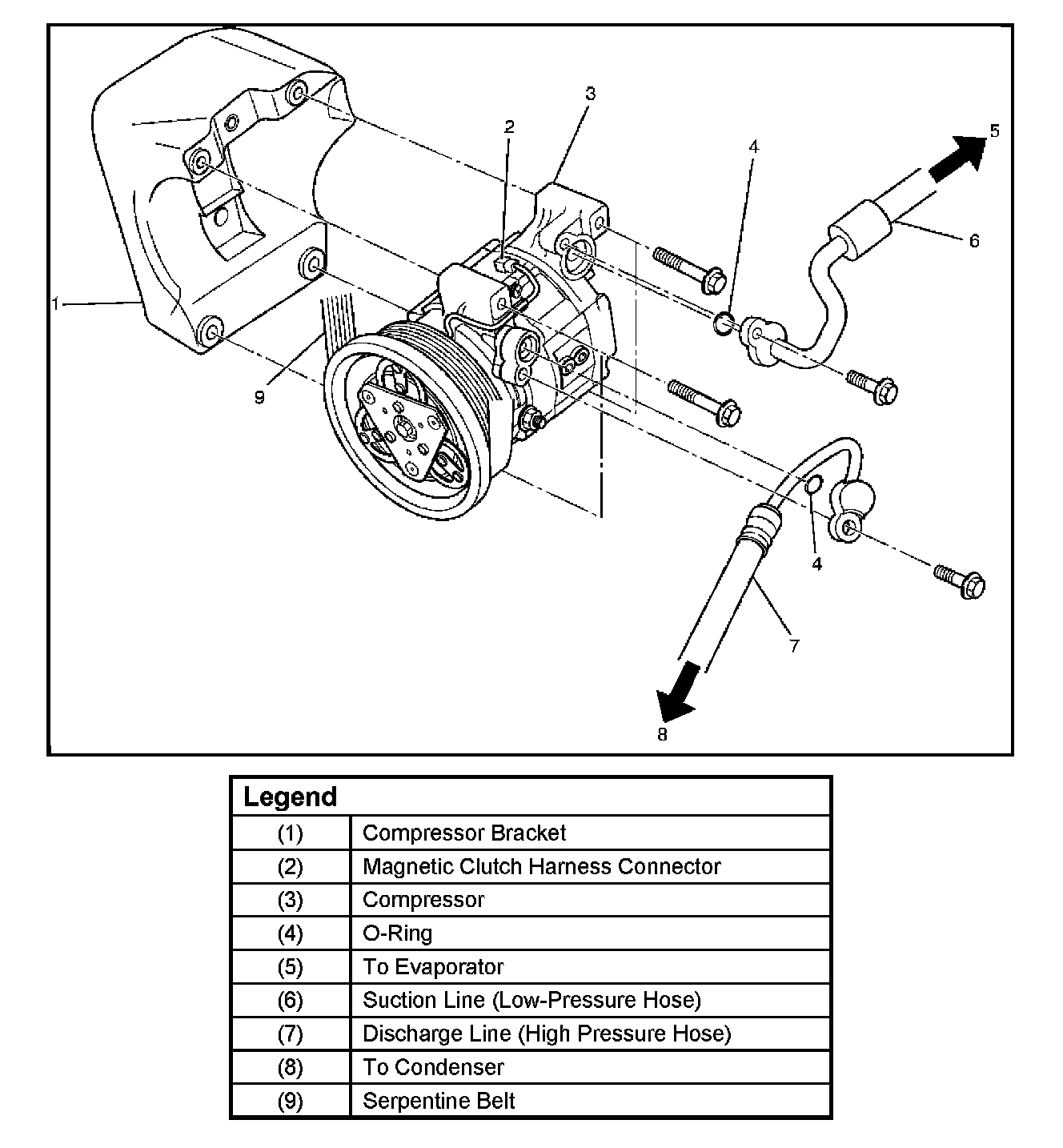

Compressor Assembly And Associated Parts:

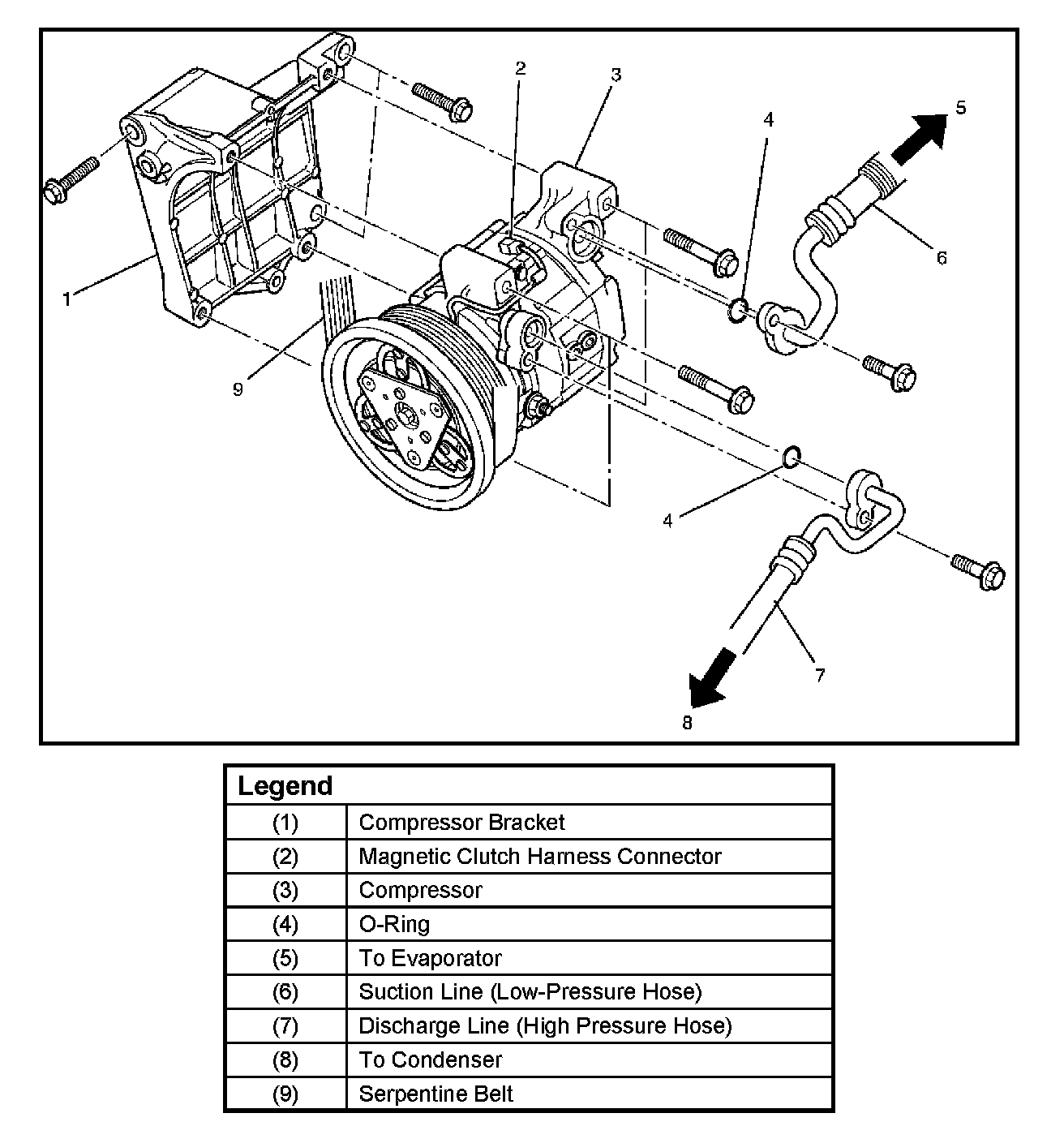

Compressor Assembly And Associated Parts:
