Home >> Isuzu >> 2003 >> Rodeo 2WD L4-2.2L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Console

Console

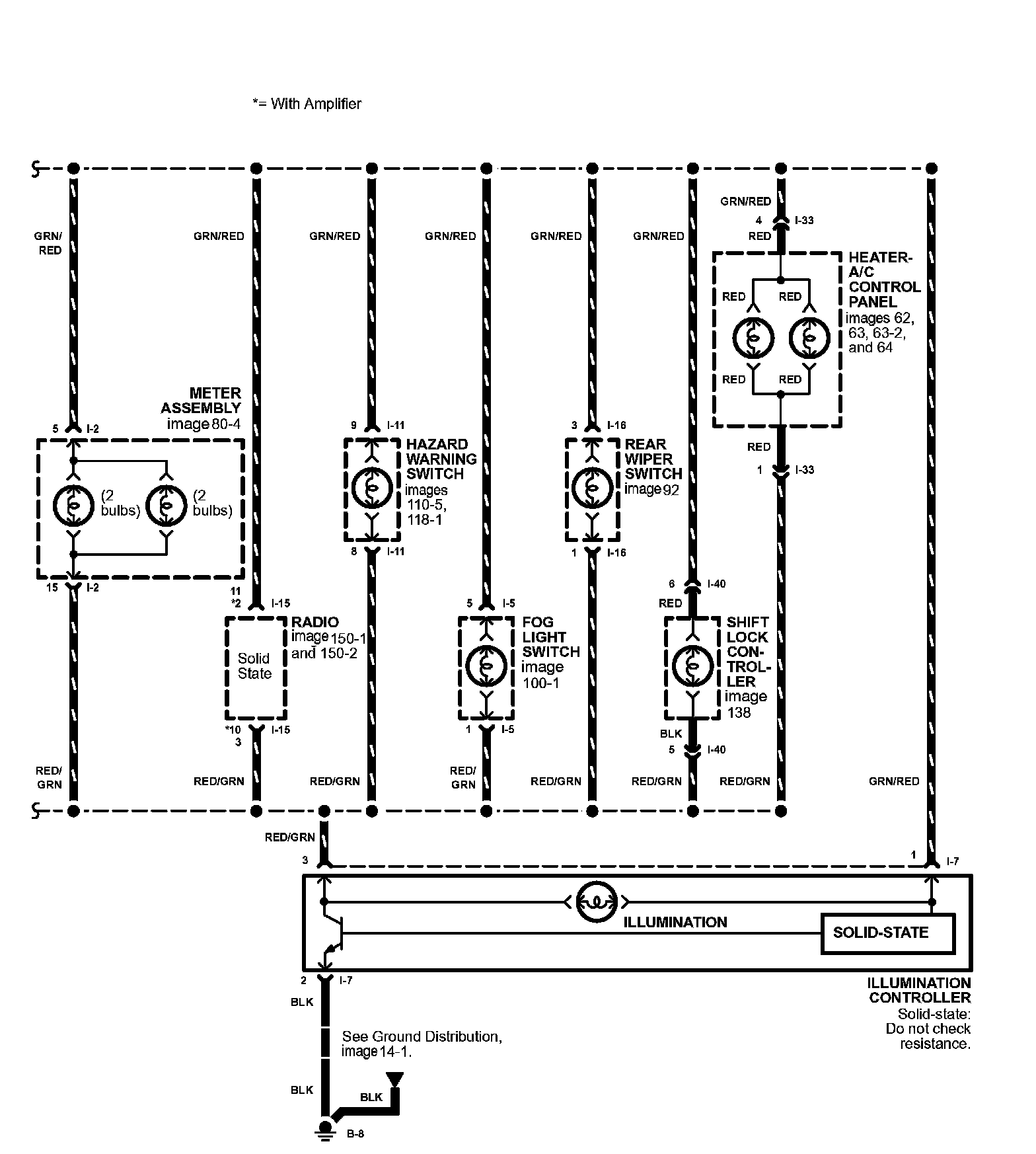

Dash And Console Lights Image 117:

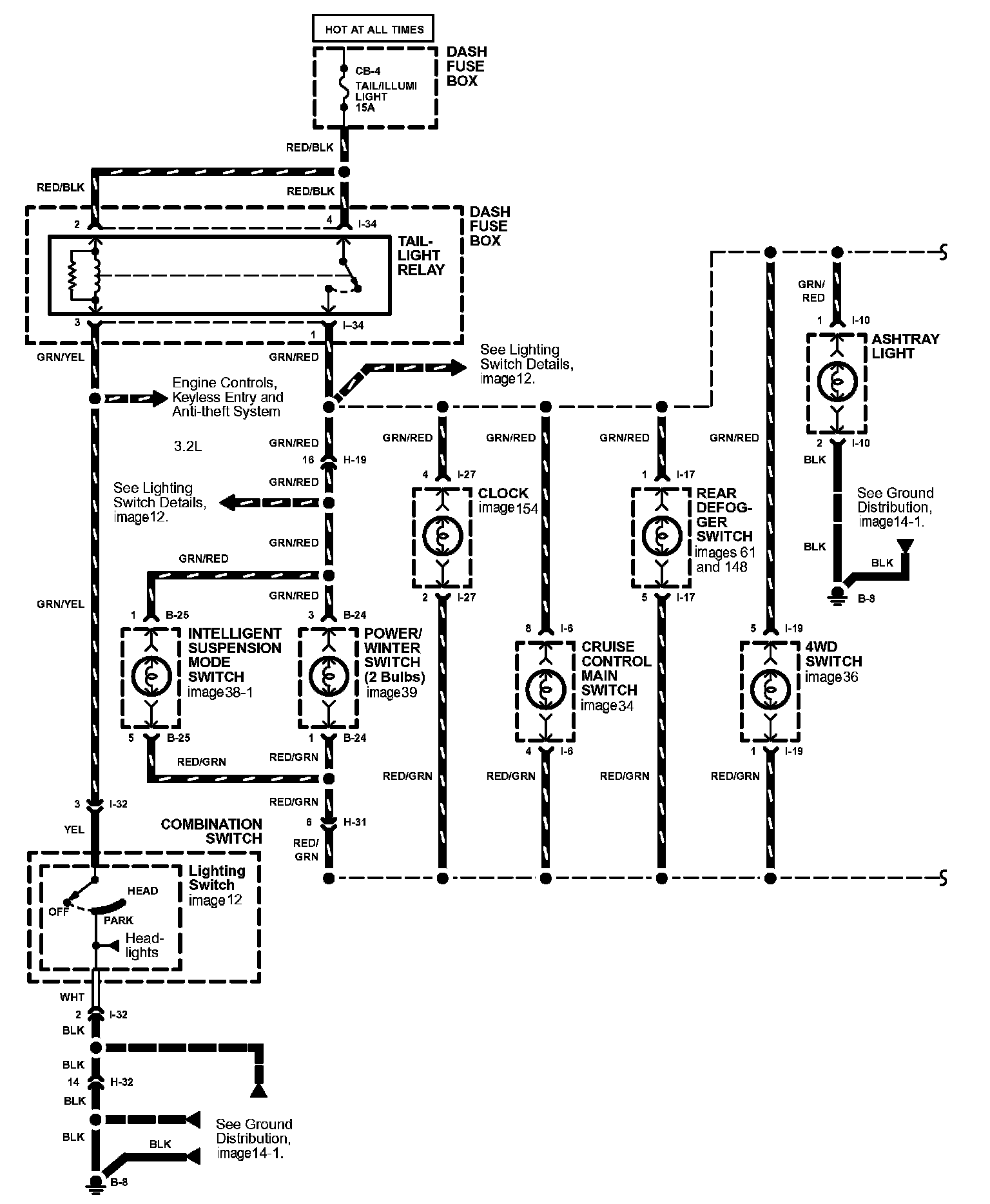

Dash And Console Lights Image 117-1:
