Home >> Isuzu >> 2003 >> Ascender 4WD L6-4.2L >> Repair and Diagnosis >> Powertrain Management >> Transmission Control Systems >> Testing and Inspection >> Scan Tool Testing and Procedures >> Scan Tool Output Controls

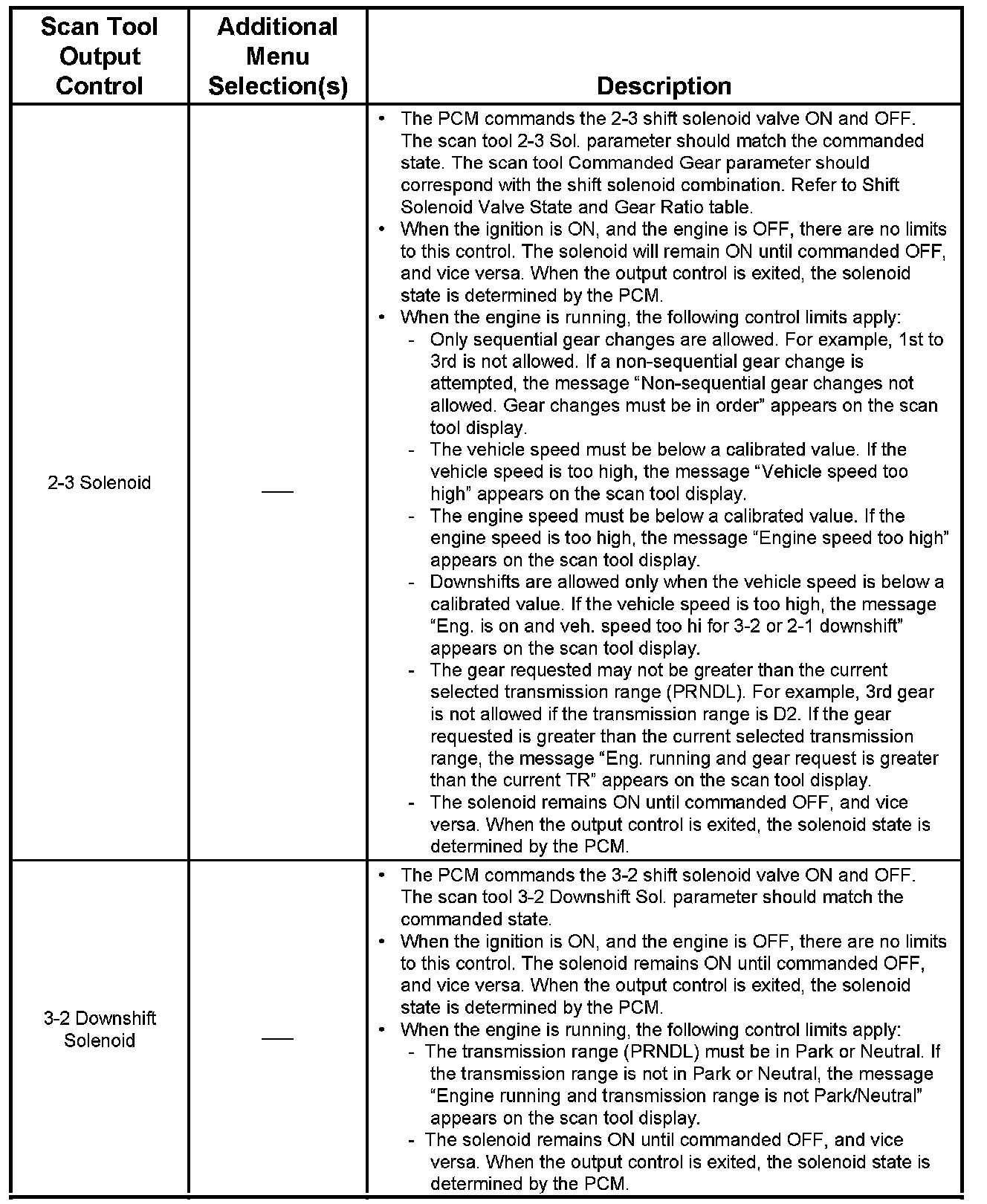

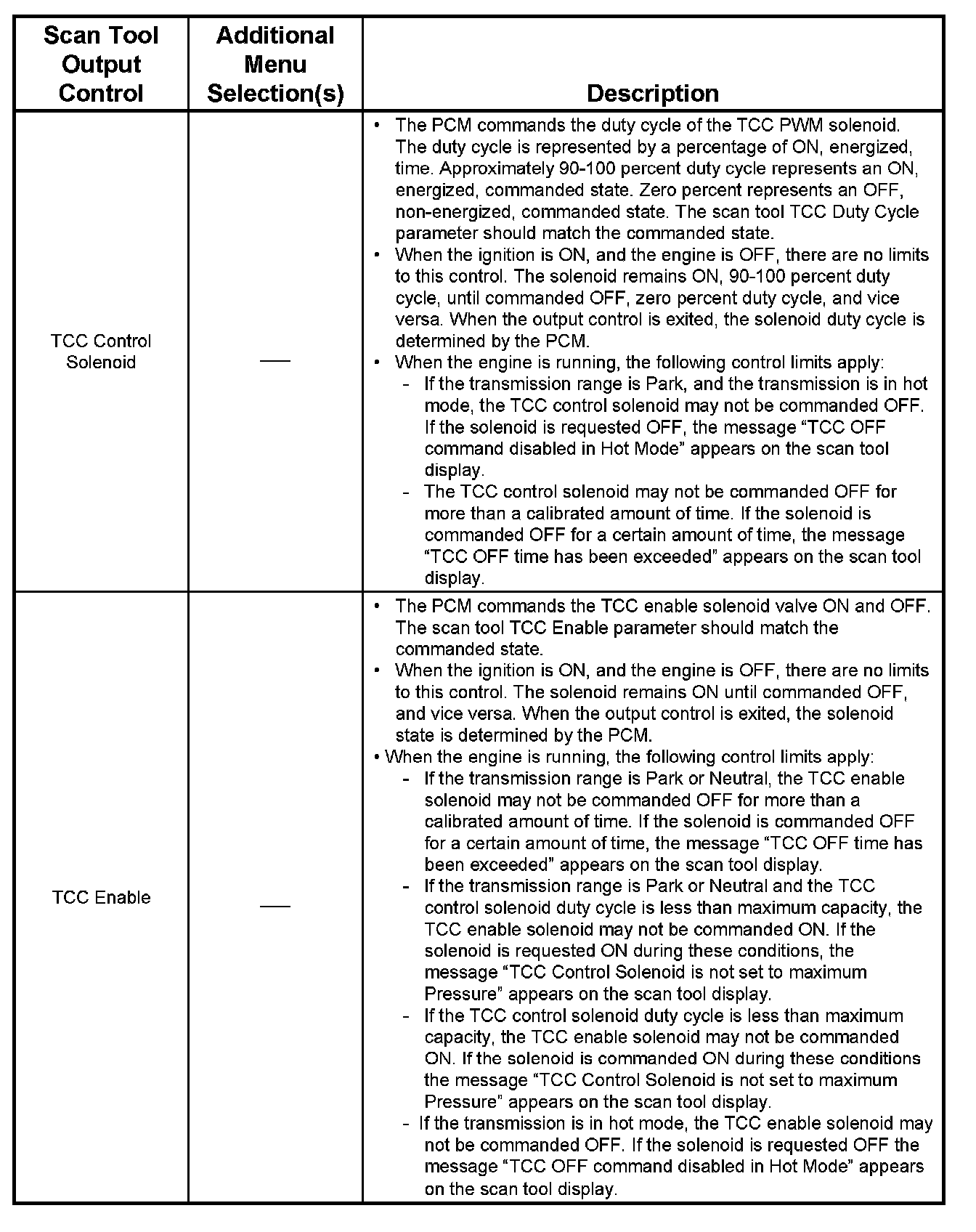

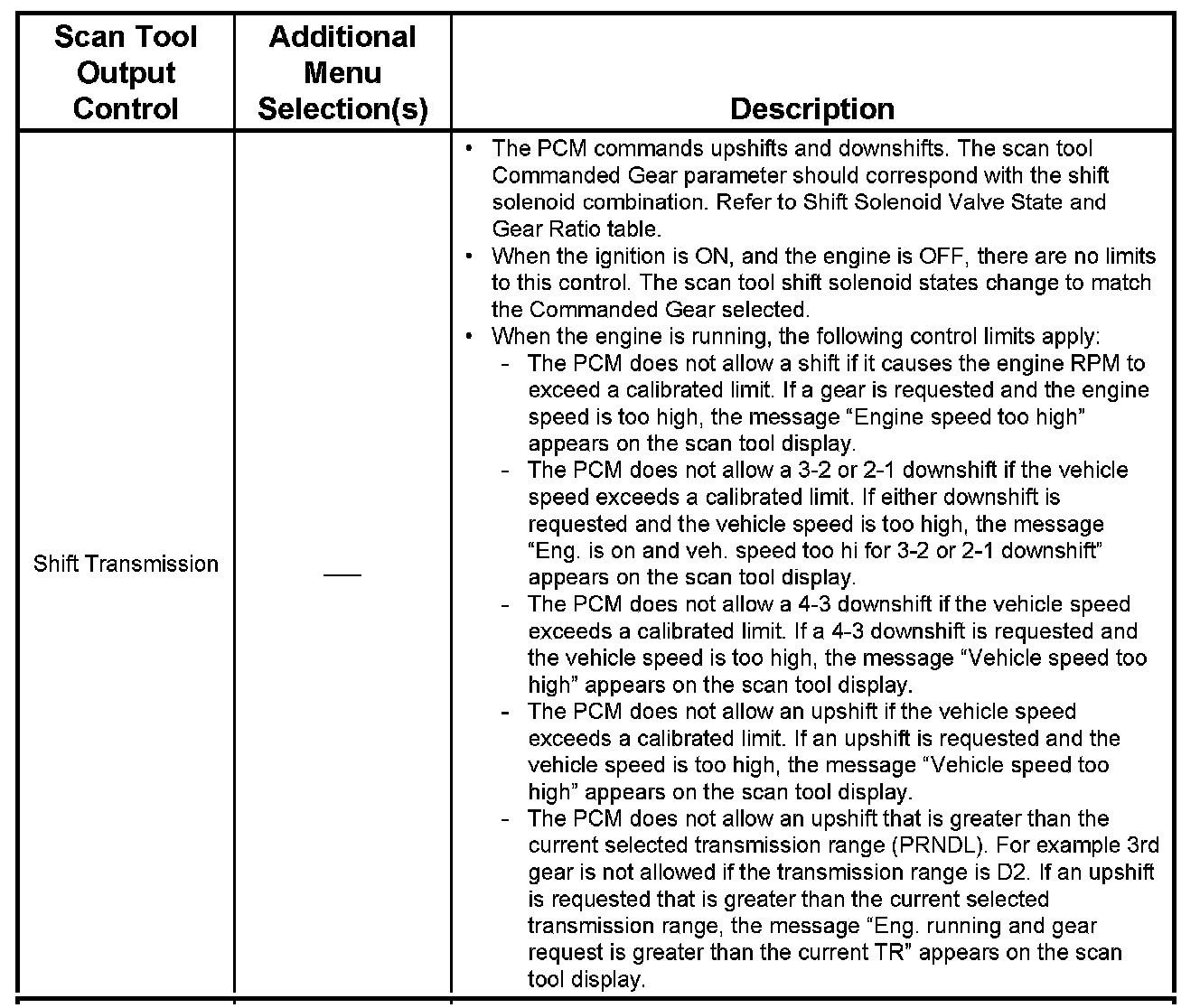

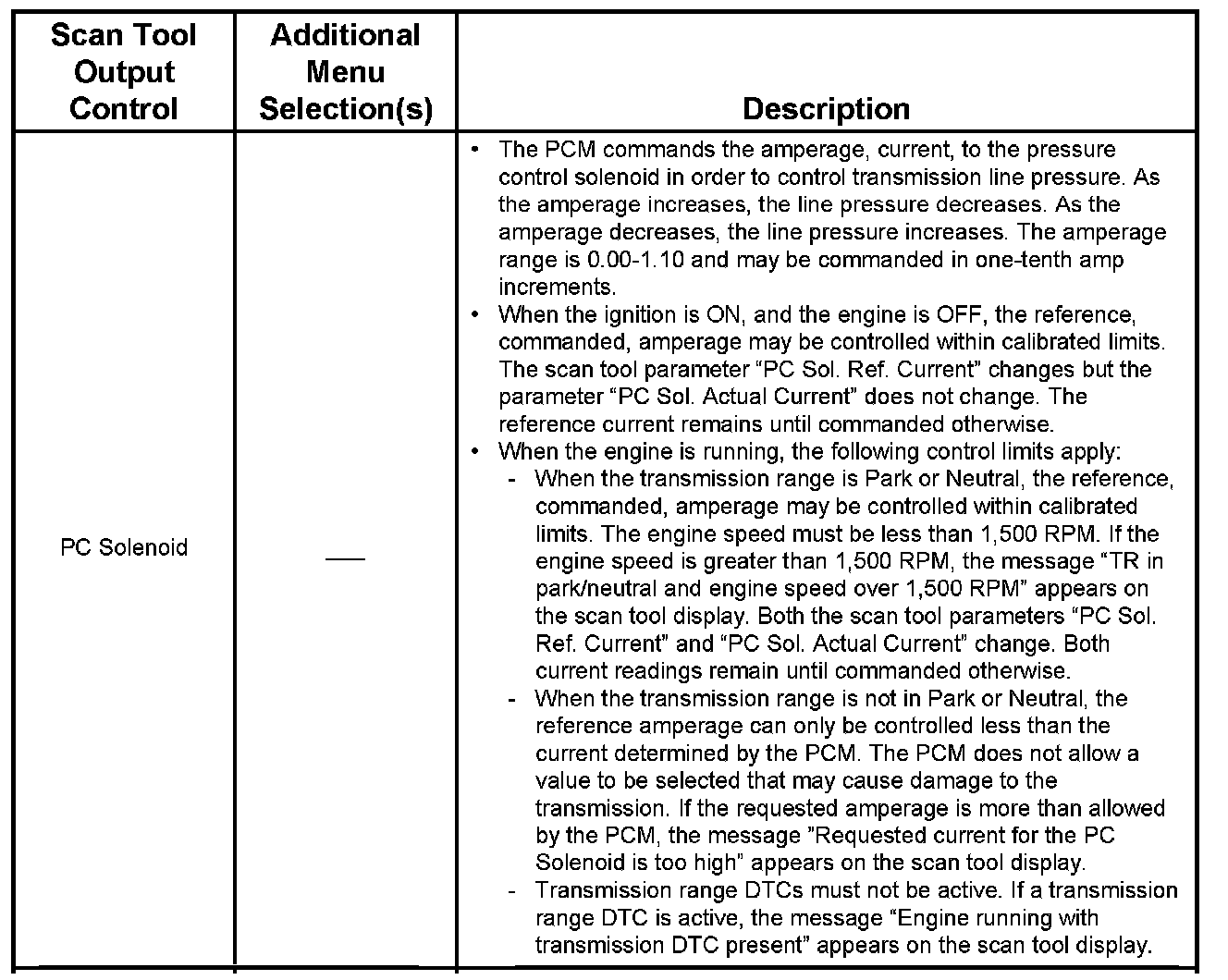

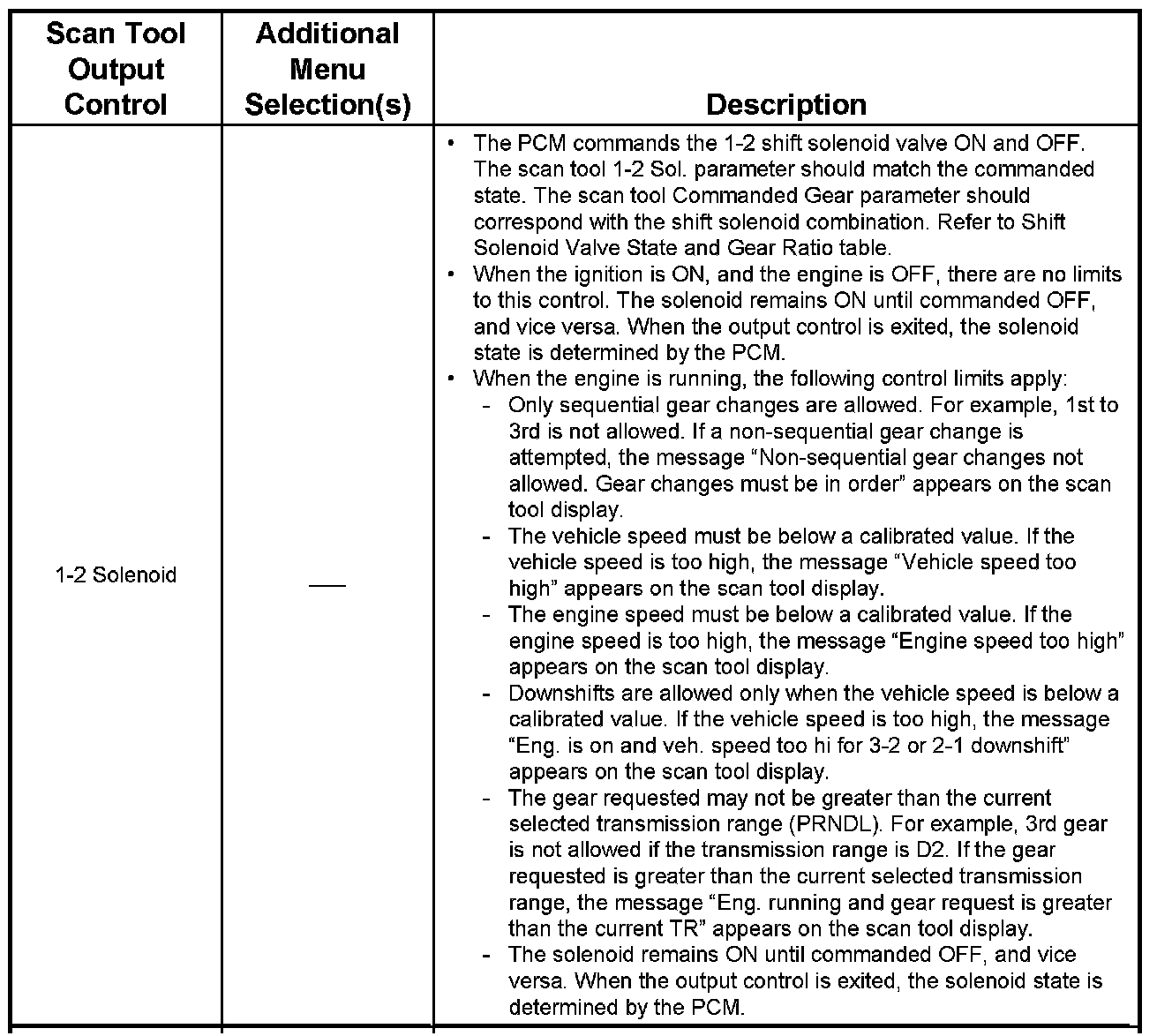

Scan Tool Output Controls

Scan Tool Output Controls

1 Of 5:




2 Of 5:




3 Of 5:




4 Of 5:




5 Of 5:
