Home >> Isuzu >> 2003 >> Ascender 4WD L6-4.2L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Body Control Module >> Locations

Body Control Module: Locations

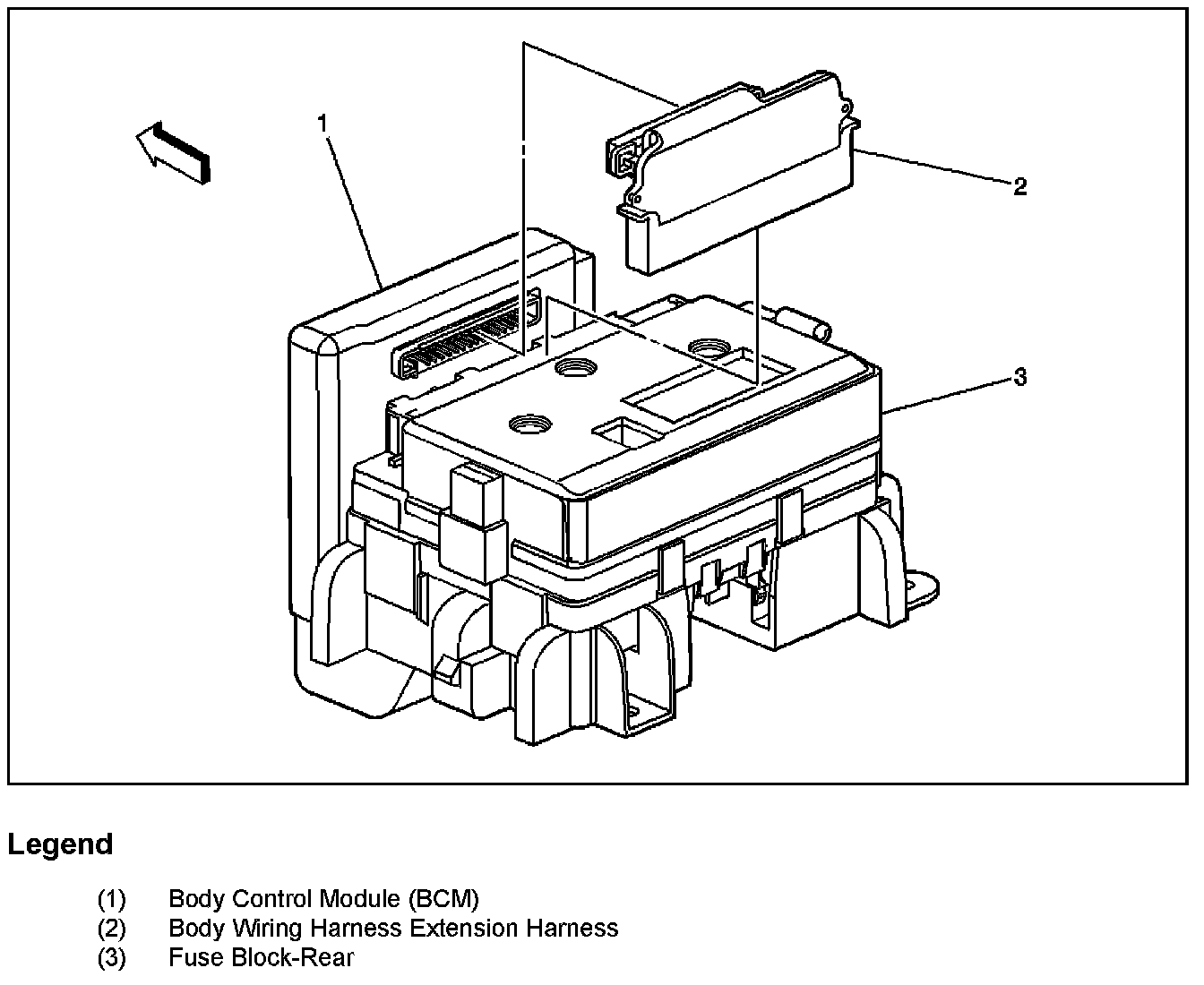

Body Wiring Harness Extension Harness:

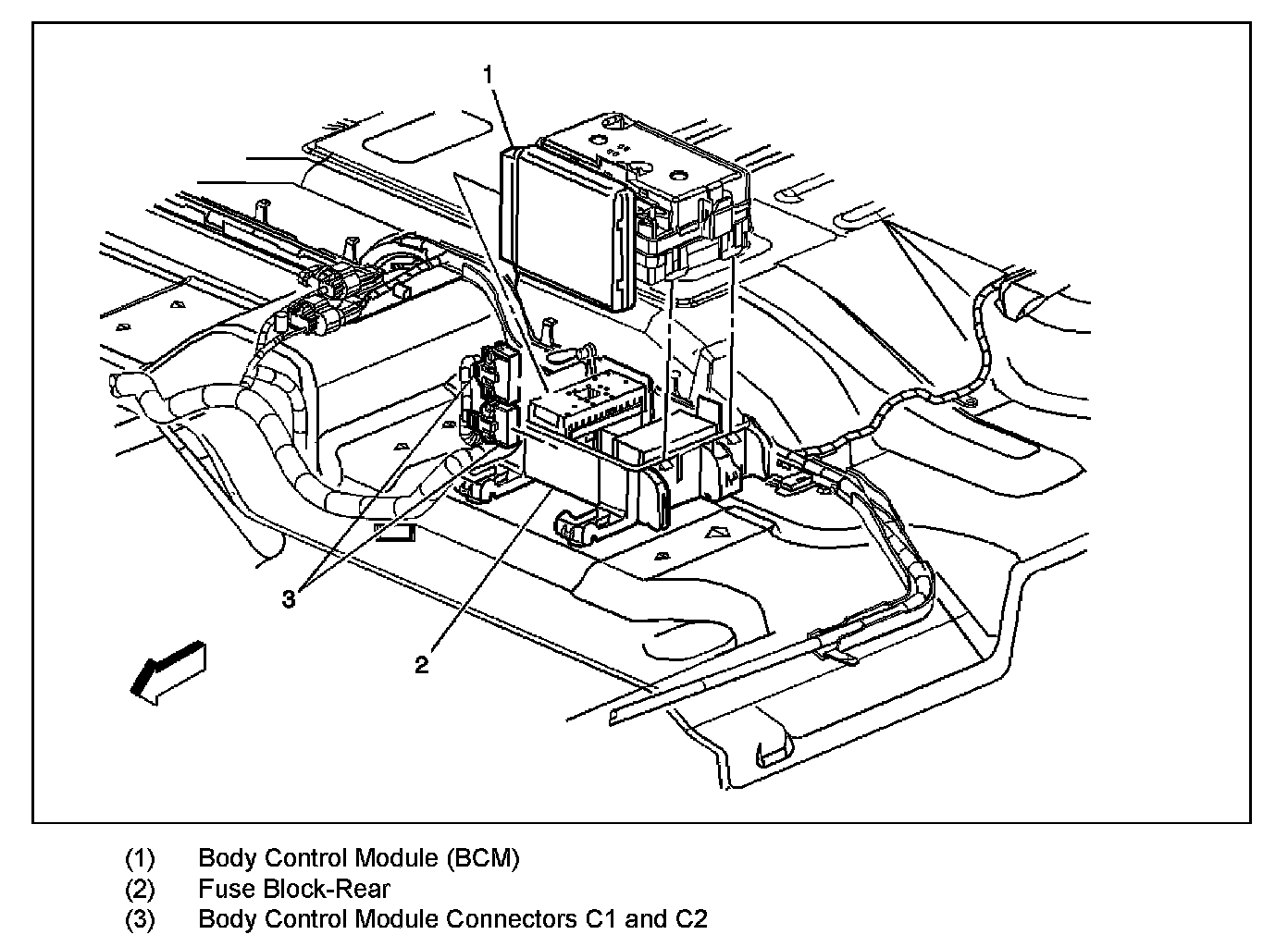

Body Control Module (BCM):

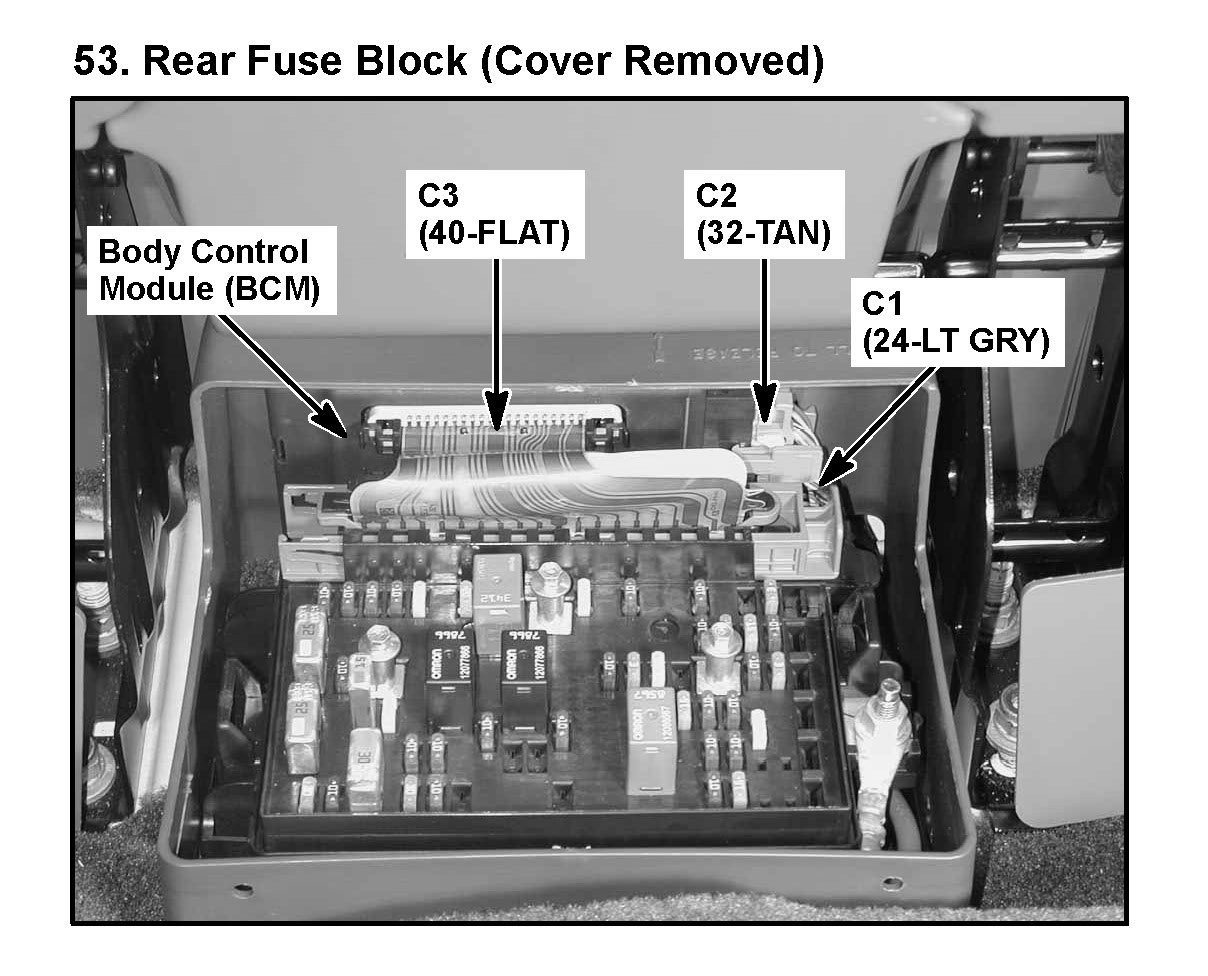

53. Rear Fuse Block (Cover Removed):
