Transfer Case
Transfer Case
Transfer Case
Disassembled View

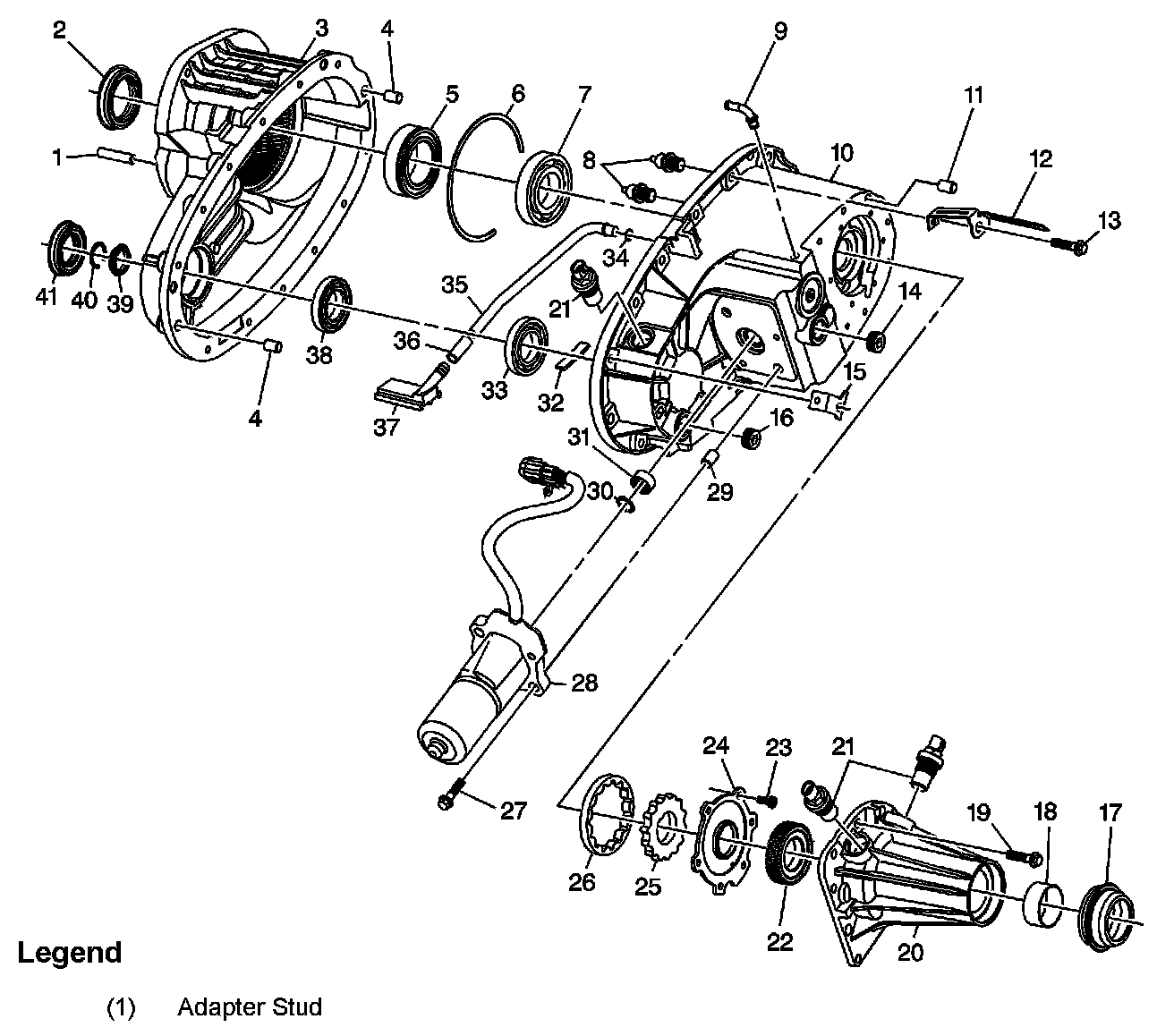

Case Components (1 Of 2):

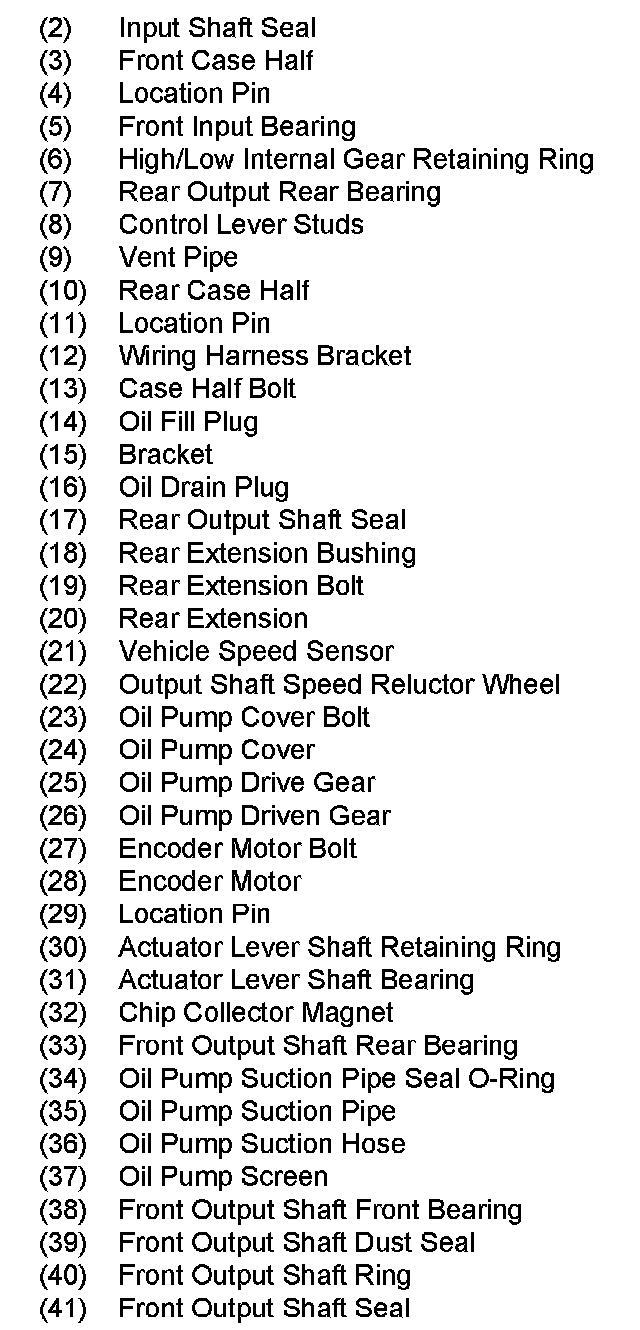

Case Components (2 Of 2):

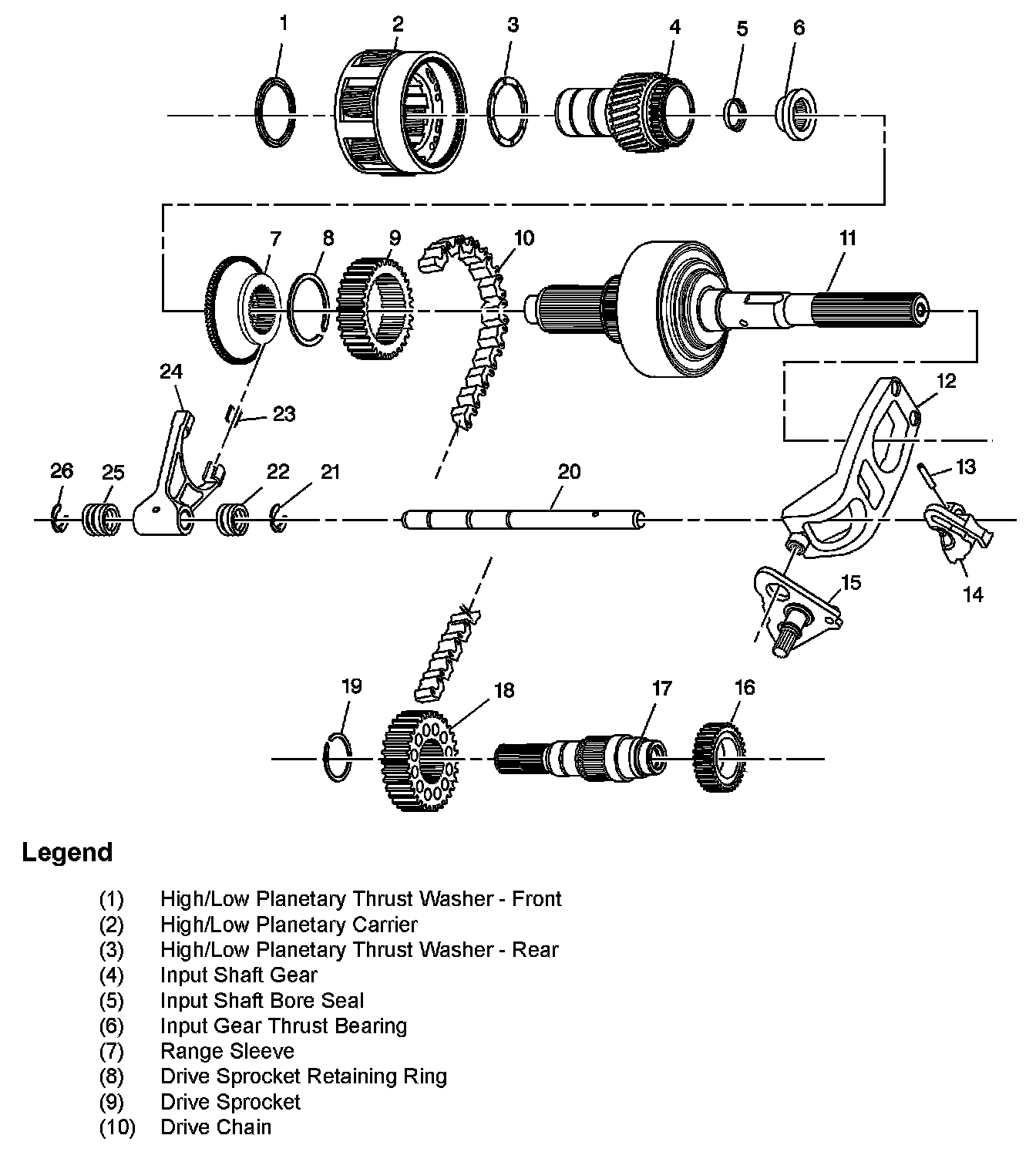

Internal Components (1 Of 2):

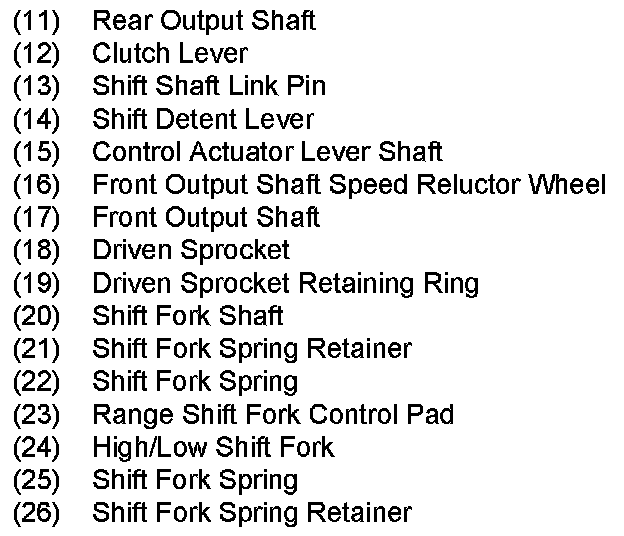

Internal Components (2 Of 2):

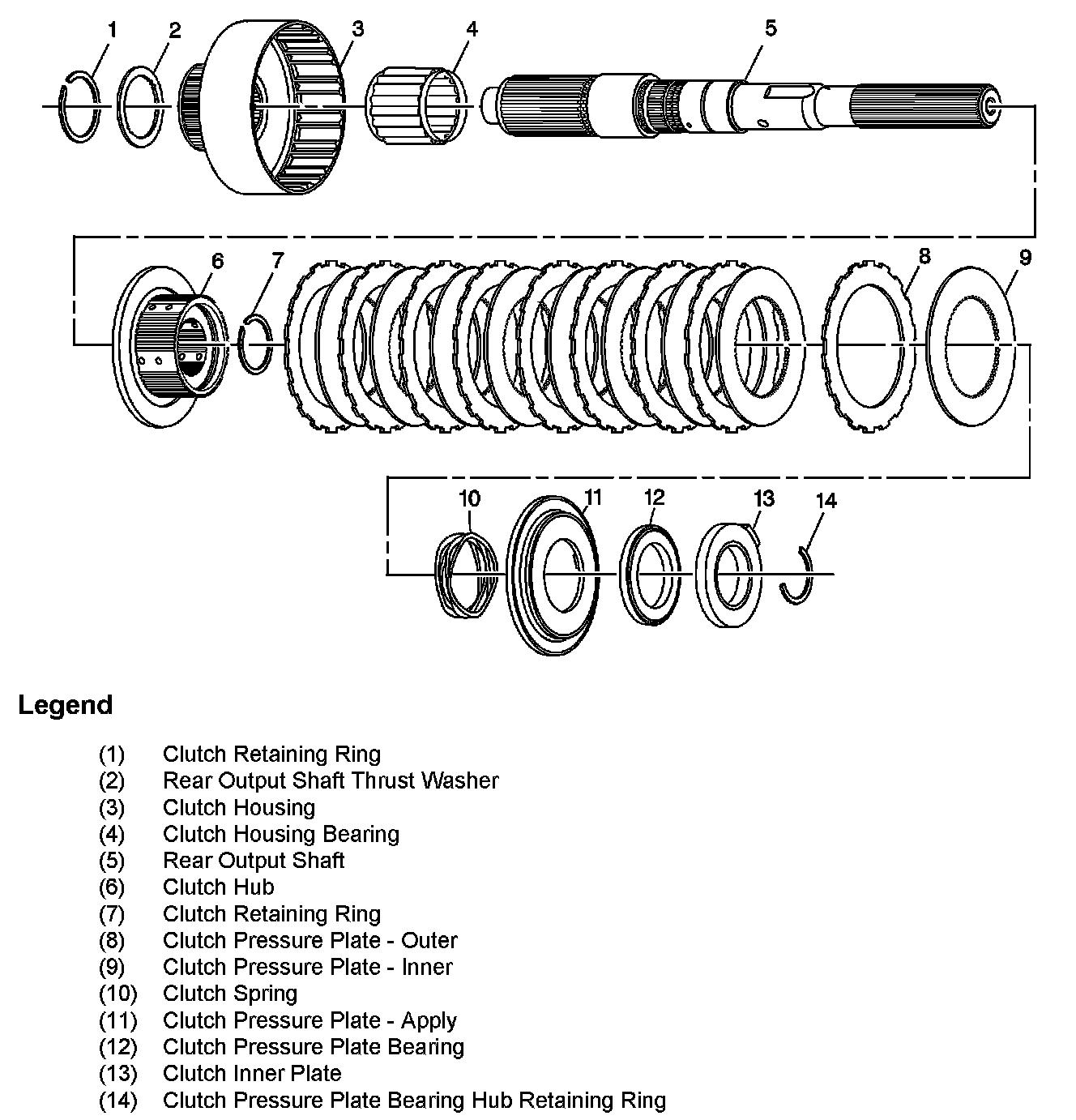

Rear Output Shaft Assembly:
