Home >> Isuzu >> 2003 >> Ascender 4WD L6-4.2L >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Engine >> Timing Chain and Components

Timing Chain and Components

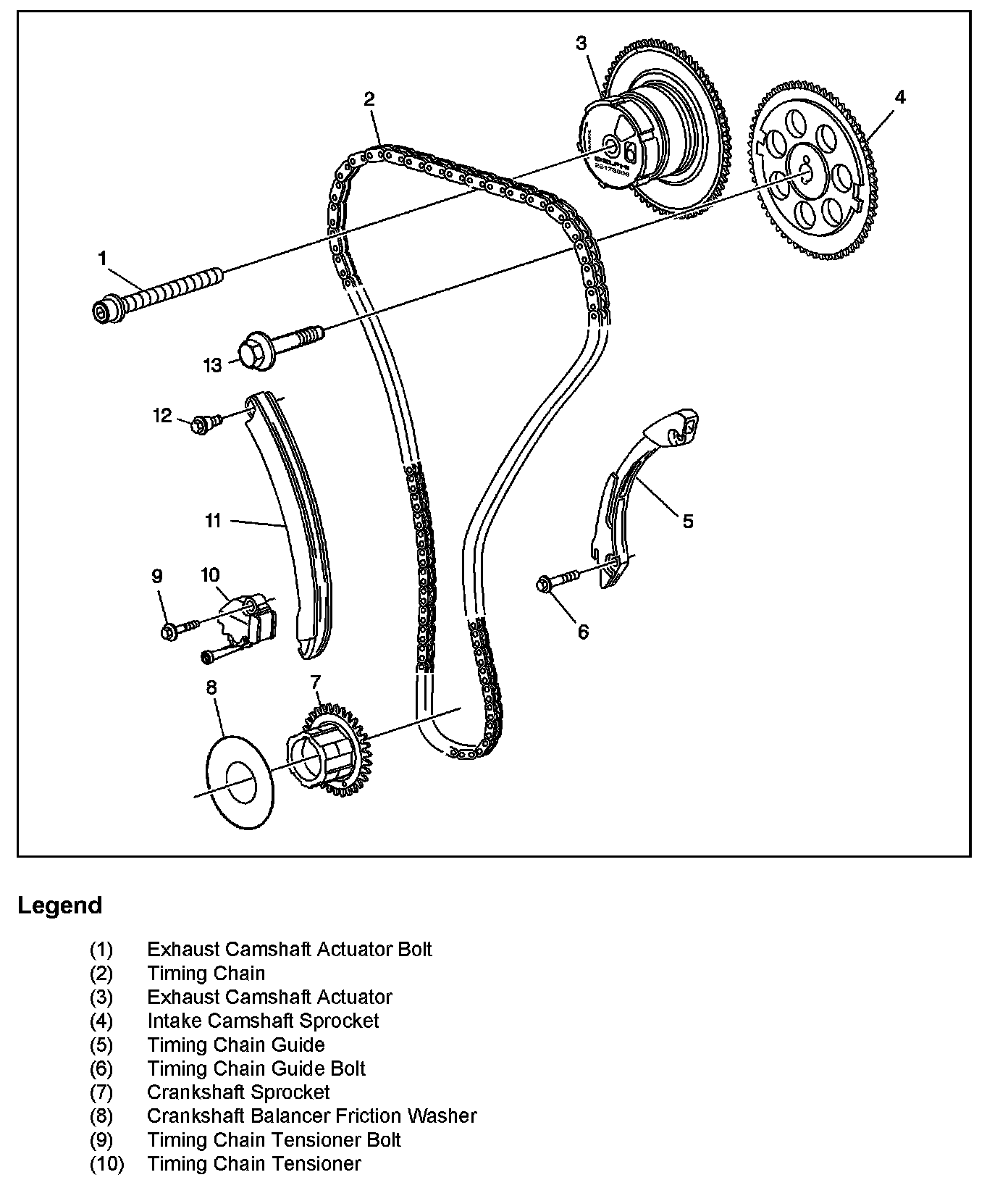

Timing Chain and Components (1 Of 2):

Timing Chain and Components (2 Of 2):
