Home >> Isuzu >> 2003 >> Ascender 4WD L6-4.2L >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Differential Assembly >> Front

Front

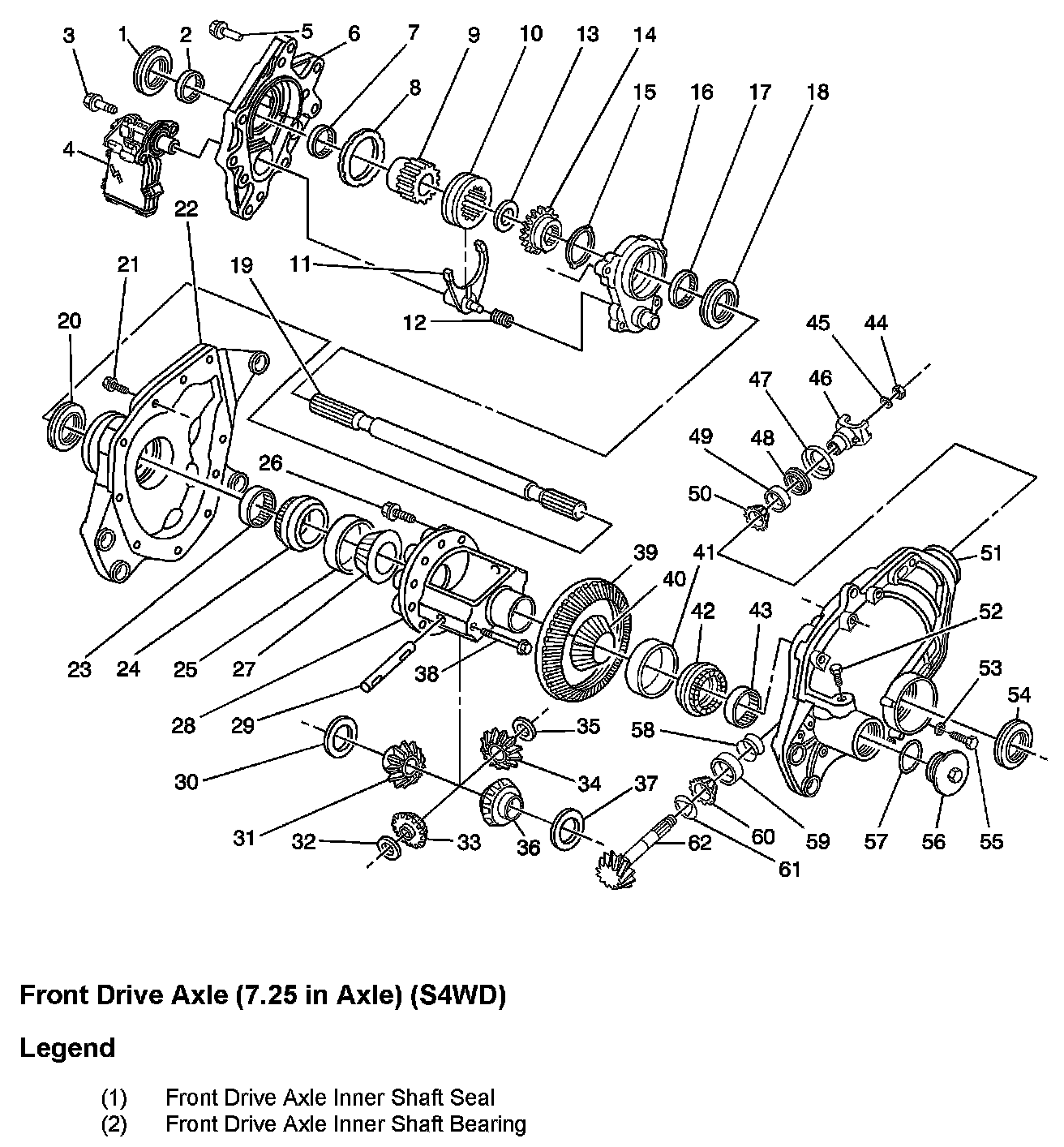

Front Drive Axle Disassembled Views

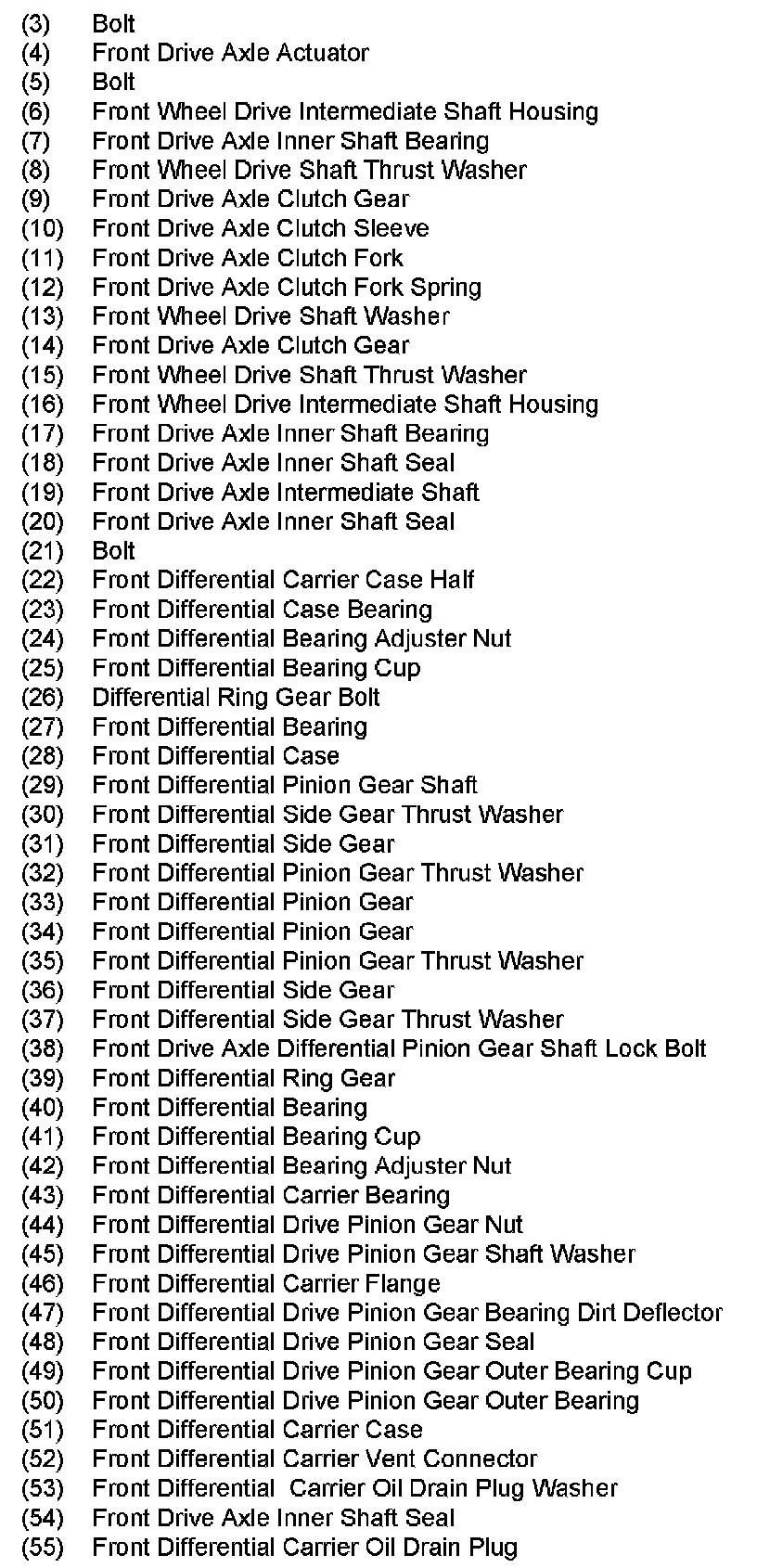

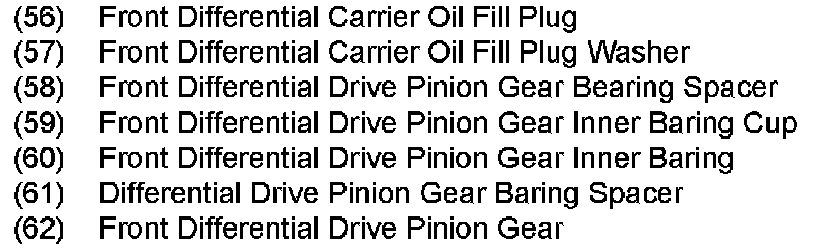

Front Drive Axle (7.25 in Axle) (S4WD):
