Brake Fluid Level Sensor/Switch
Brake Fluid Level Sensor/Switch
Connector Views

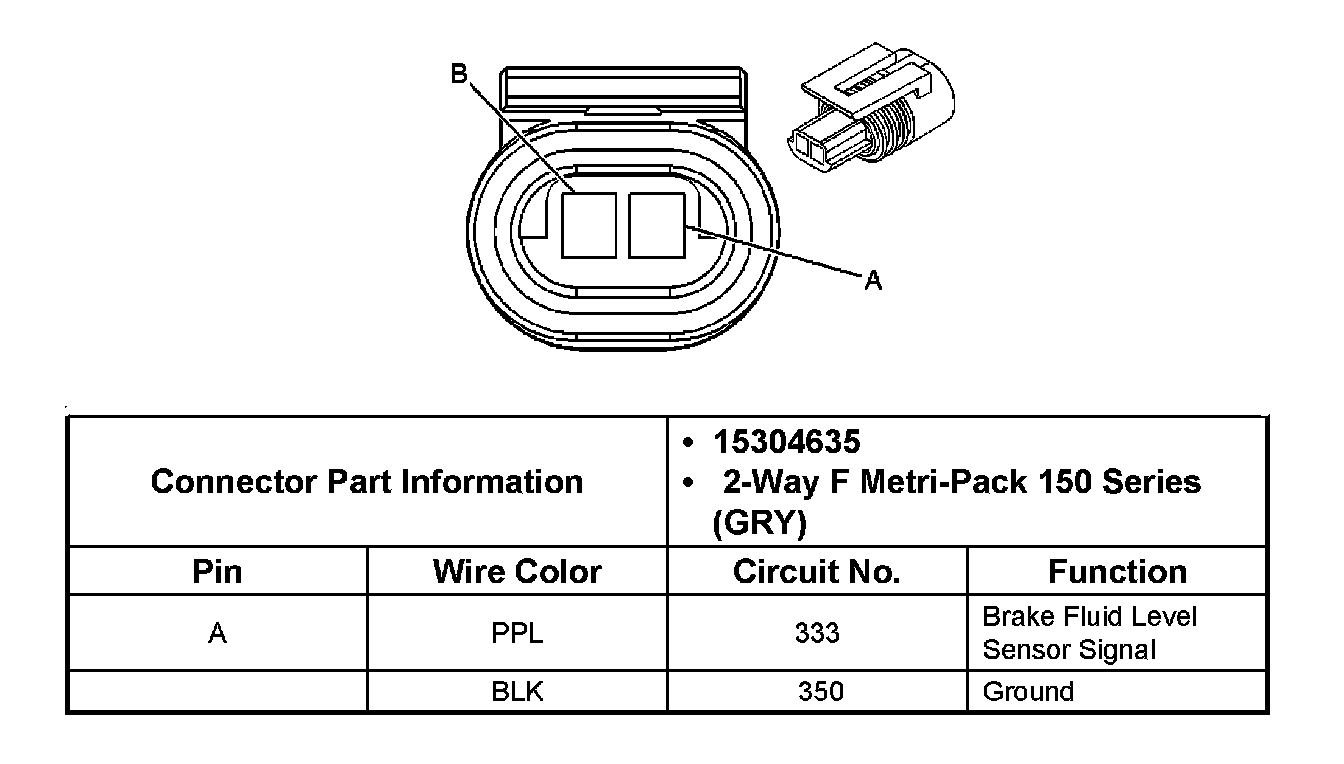

Brake Fluid Level Switch:
