System Diagram

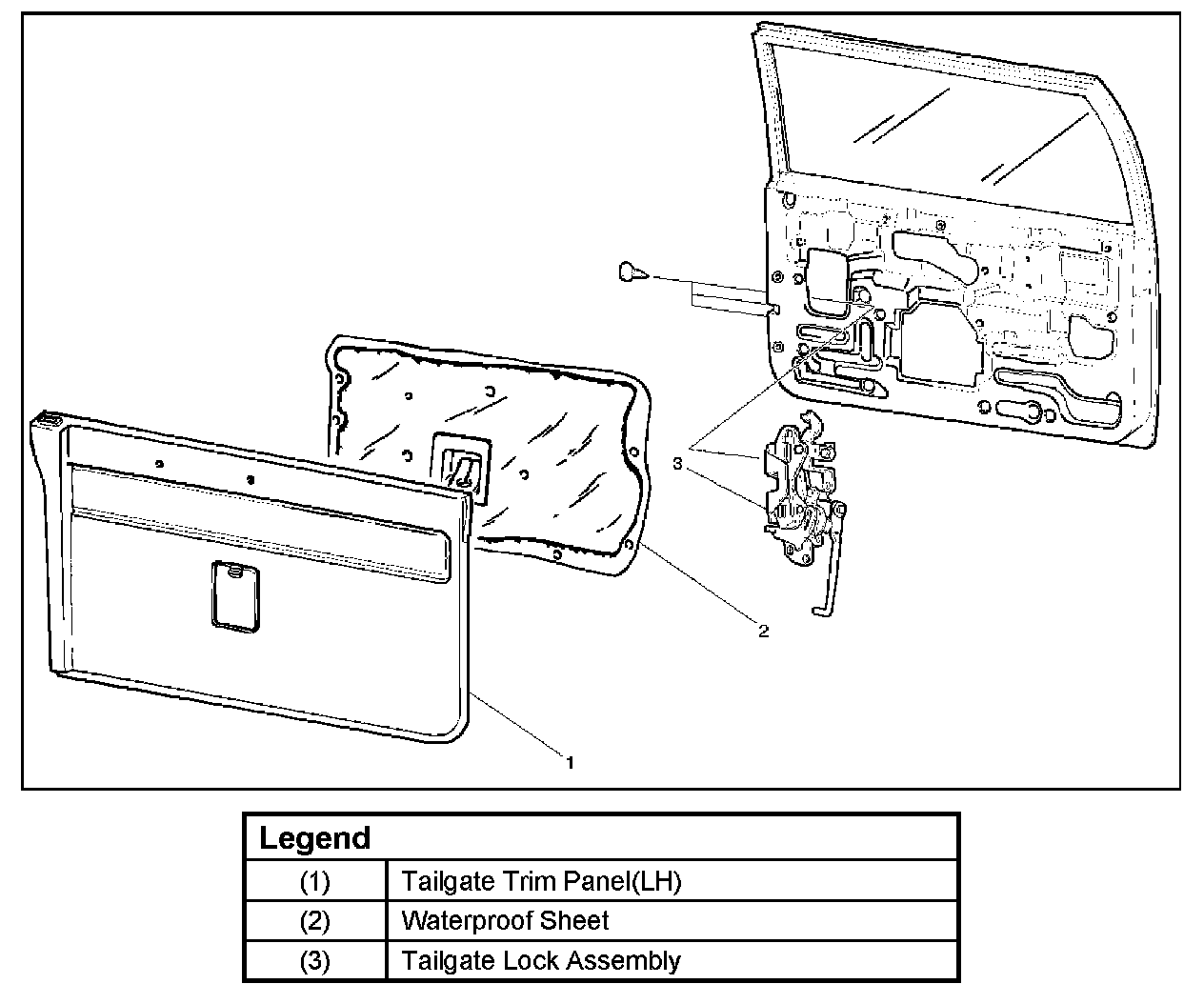

Tailgate Lock Assembly (LH) And Associated Parts:

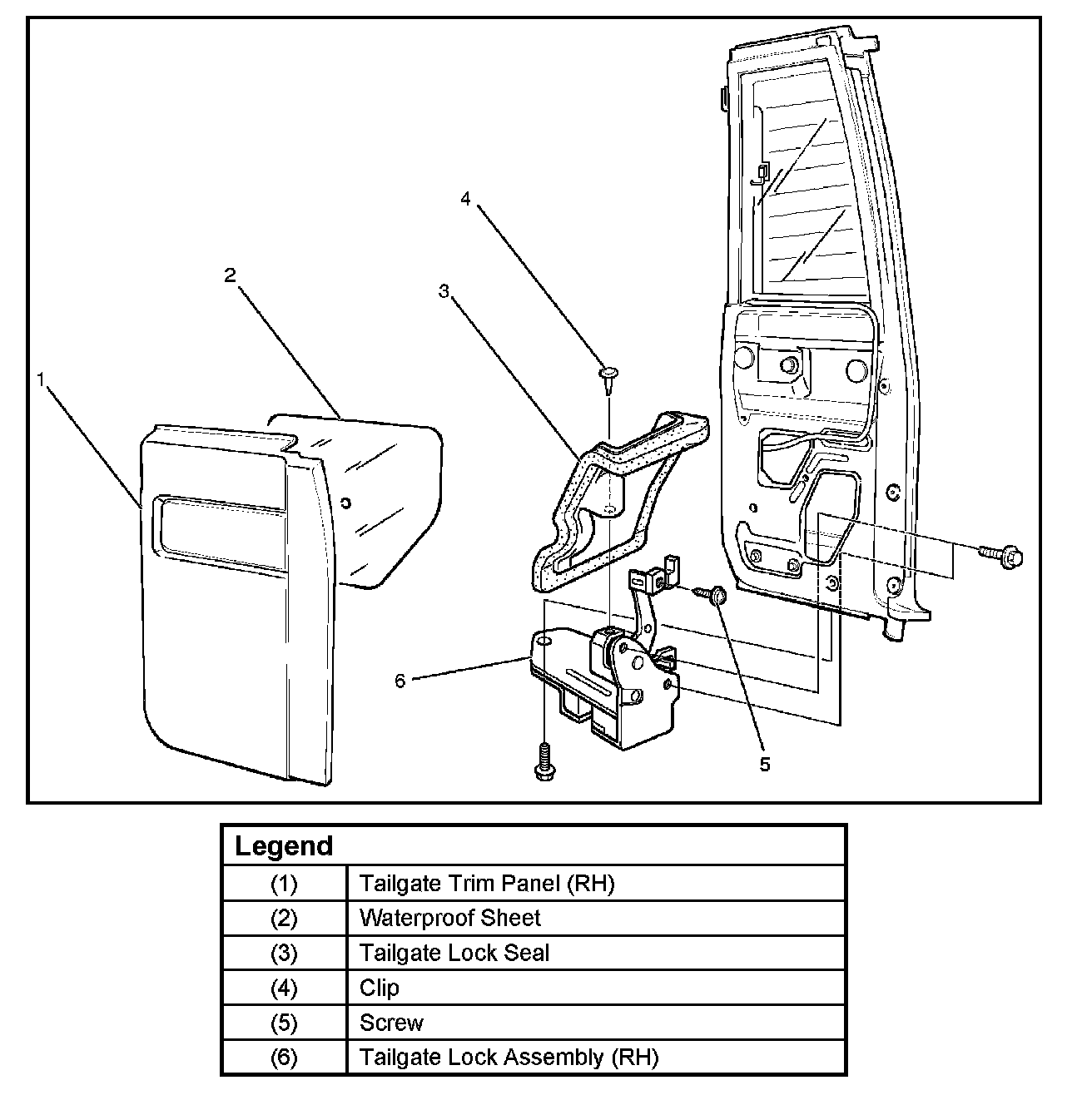

Tailgate Lock Assembly (RH) And Associated Parts:
