Home >> Isuzu >> 2002 >> Trooper LS 4WD V6-3.5L >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Instrument Panel Bulb

Instrument Panel Bulb

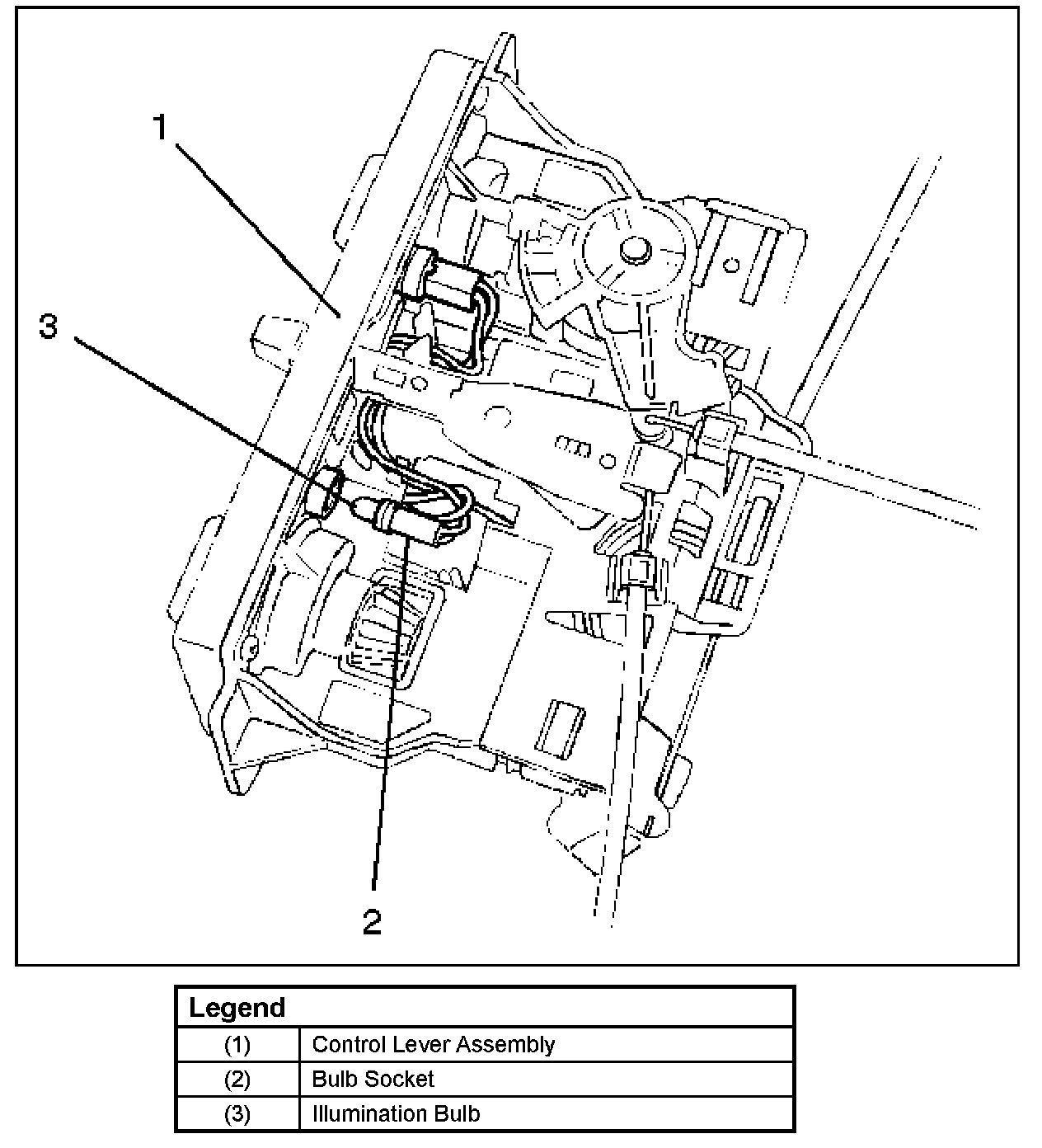

Control Panel Illumination Bulb And Associated Parts:

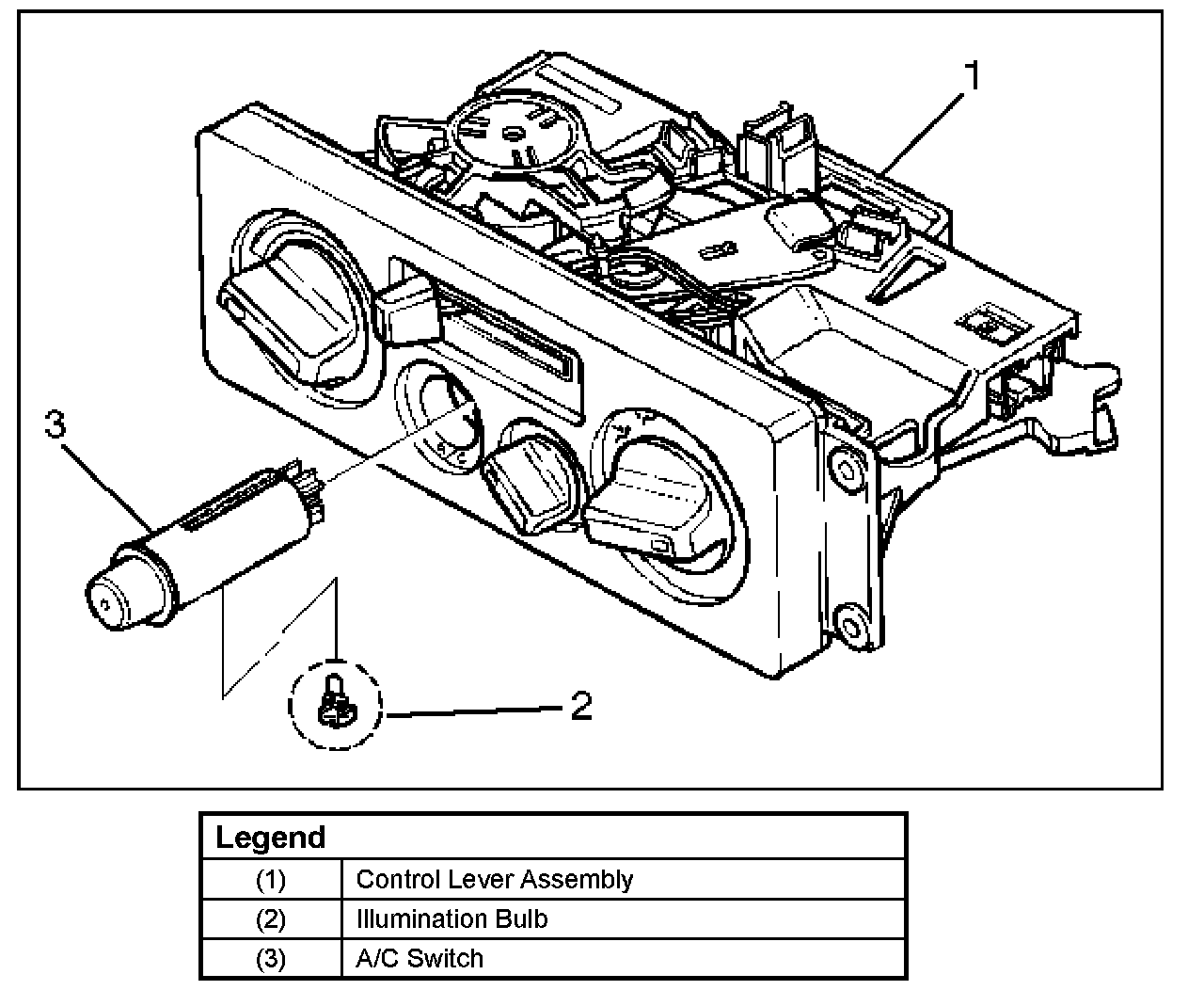

Air Conditioning Switch, Illumination Bulb And Associated Parts:
